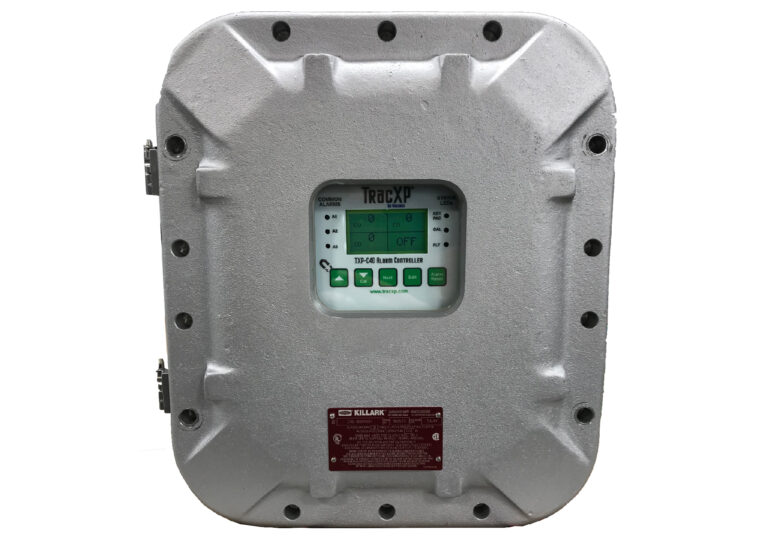

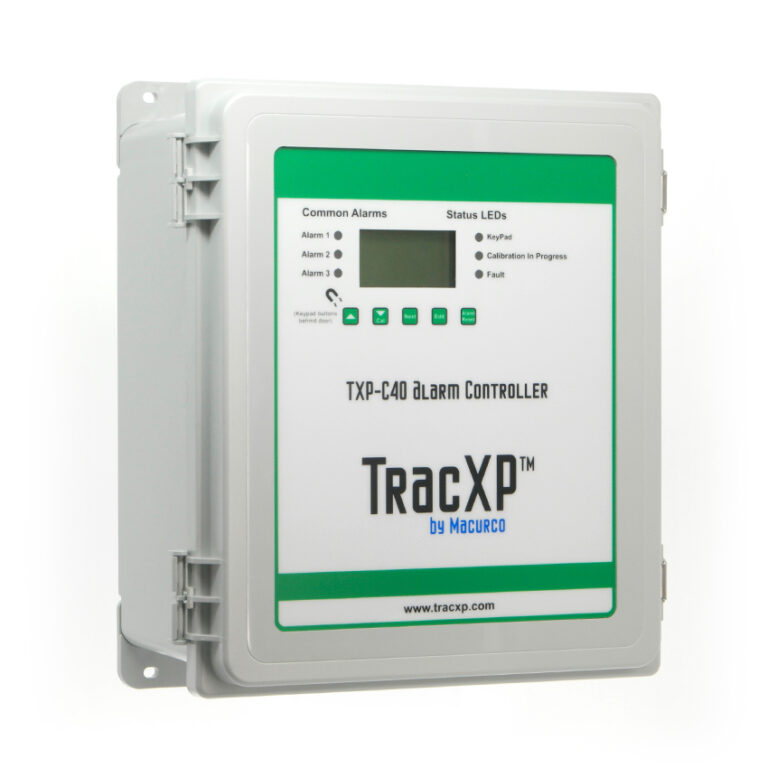

The TracXP C40 is a versatile control panel that provides signal conditioning, display and alarm functions for up to four input channels. The C40 comes standard with two programmable relays and a large graphic LCD screen which displays engineering units, 30-minute trends or bar-graphs. Status indicating Yellow and Red LED’s provide highly visible real time alarm status and three adjustable alarm levels per channel. Versatile input options include connecting four 4-20 mA inputs, four bridge sensors (Catalytic Bead/IR) or dual bridge and dual toxic (Electrochemical) sensors. Output options include 4–20 mA, MODBUS®RTU, serial to dual Ethernet Modbus TXP bridge, and additional relay outputs
Applications
| Enclosure Size | 14.1″(L) x 12.14″(W) x 7.75″(H) Poly Enclosure |
| Shipping Weight | 12 lbs. (5.4 k.) Poly Enclosure |
| Power Supply | 120 – 240 VAC / 10 – 30 VDC, 50 watt primary power supply (Standard) |
| Inputs | Dual toxic (Electrochemical) Dual bridge (Catalytic Bead/IR) One bridge and one toxic Dual 4-20 mA |
| Relays | Two programmable 5A 30 VDC or 250 VAC resistive Form C Relays Programmable 5A 30 VDC or 250 VAC resistive Form C Relays (Option) |
| Serial Port Option | Modbus® RTU Slave RS-485 Port Tx / RX LED’s Serial to dual Ethernet Modbus® TCP bridge, for C1D2 locations |
| Display | Graphic 128 x 64 pixel backlit LCD indicates engineering units, trends or bar-graphs. Six LED’s provide alarm status, cal mode and keypad activity |
| Temperature | -13°F to 140°F (-25°C to +60°C) |
| Approvals | CSA C22.2 No. 1010.1 and C22.2 NO 152 for combustible gases and ISAS82.02: UL1604 / C22.2 No 213 (NEMA 4X Enclosures: Div. 2, Groups A, B, C & D EN55011 and EN 61000 |
Controller Parts and Accessories
| 88-C020-0000-20 | Power Supply, 100-240 VAC / 10-30 VDC w/50W, C1, D2 |
| 90-8000-0000-09 | Quad LCD / micro controller PCB & ribbon cable |
| 88-4000-0020-00 | Alarm relay board (6, 5A form C relays) |
| 88-5000-0060-00 | Single RS-485 serial Modbus® TCP bridge, non-hazardous locations |
| 88-5000-0070-00 | Quad channel 4-20 mA output board |
| 88-5000-0070-20 | Serial to dual Ethernet Modbus® TCP bridge, for C1D2 locations |
| 88-5000-0080-00 | RS-232 / RS-485 RTU addressable interface |
| 90-8000-5000-00 | Quad channel 4-20 mA input board |
| 90-8000-6000-00 | (2) Bridge Sensors and (2) 4-20 mA or (4) Bridge sensors input boards |
