The TXP-FDE IR3-H2-HD detects fires and explosions extremely quickly allowing mitigation steps to be initiated more rapidly and limit event escalation
Made in USA. brand MACURCO, model TXP-FDE IR3-H2-HD
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

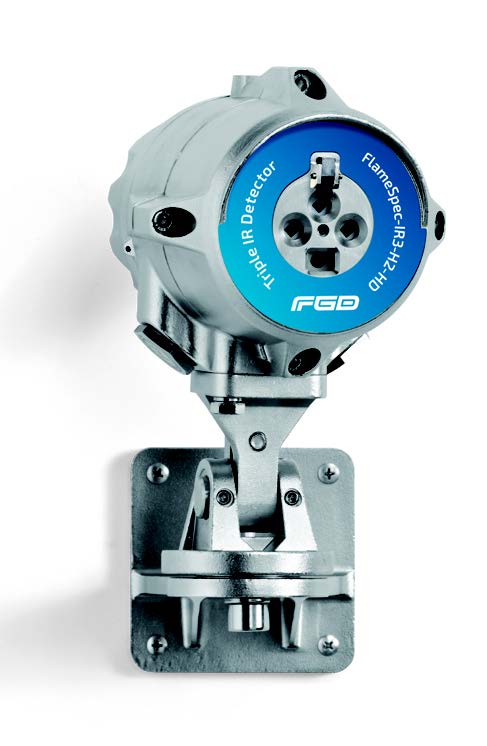

The TracXP TXP-FDE IR3-H2-HD triple IR flame detector provides unrivaled response, high performance and reliable detection for a number of fires found in Energy Transition applications, such as hydrogen, methane, syngas, ammonia and methanol. The IR3-H2-HD’s high definition camera allows clear imaging of fire and personnel at 100ft (30m). The detector addresses slow growing fires as well as fast eruptions of fire using improved IR3 technology. The detector operates in all weathers and light conditions. These features, along with the built-in event logger, provide additional means to study the cause and development of fire events.
Applications
Key features
| Dimensions | 7.87″ (L) x 5.12″ (W) x 5.12″ (H) |
| Shipping Weight | 15.2 lbs. (6.9 kg.) |
| Power & Electrical | Operating Voltage: 18-32 VDC Current (Standby): 180 mA Current (Maximum): 300 mA Conduit Entries: 2 x 3/4″ NPT or M25x1.5 Wiring: 12-20 AWG |
| Outputs | Relays: 3 x SPST 2A @ 30 VDC Analog: 4-20 mA stepped (sink or source) Digital: Modbus RS-485 RTU LED: Tri-color (Green, Yellow and Red) |
| HART | HART® 7 for configuration & maintenance |
| Detection Time and Distance | 40ms for fast burst or explosion For 32″ (0.8 m) hydrogen fire: 1.5s at 0-66 ft. (0-20 m) 4s at 66-100 ft. (20-30 m) |
| Sensitivity Options | Extreme, High, Medium, Low and Very Low |
| Field of View | 90° Horizontal and 75° Vertical |
| Time Delay | 0-30 seconds |
| Built-in-Test (BIT) | Automatic (Upon startup and in 20 minute intervals Manual (PC software or wire terminal short) |
| Temperature Range | -67°F to +185°F (-55°C to +85°C) |
| Humidity | Up to 99% (RH), non-condensing |
| Ingress Protection | IP66 & 68; NEMA 4X & 6P |
| Approvals | Refer to Table on Page 3 |
Video Specifications
| HD Video | Near IR filtered HD as standard |
| Alarm Recording | 1-minute pre- and up to 3 minutes post-event |
| Integration Protocol | ONVIF (Open Network Video Interface Forum) |
| Digital Video | IP network IEEE 802.3 100Base-T |
| Composite Video | NTSC or PAL |
| Part Number | Description |
| 84-2112-1200-10 | TXP-FDE IR3-H2-HD, Video, SS, 3/4″ NPT, Tilt Mount |
| 84-2112-1100-20 | TXP-FDE IR3-H2-HD, Video, SS, M25, Tilt Mount |
| 84-1112-1200-10 | TXP-FDE IR3-HD, Video, SS, 3/4″ NPT, Tilt Mount |
| 84-1112-1100-20 | TXP-FDE IR3-HD, Video, SS, M25, Tilt Mount |
| 84-2211-1100-20 | TXP-FDE IR3-H2, No Video, SS, 3/4″ NPT, Tilt Mount |
| 84-2211-1200-10 | TXP-FDE IR3-H2, No Video, SS, M25, Tilt Mount |
| 84-1211-1200-10 | TXP-FDE IR3, No Video, SS, 3/4″ NPT, Tilt Mount |
| 84-1211-1100-20 | TXP-FDE IR3, No Video, SS, M25, Tilt Mount |
| Photo | Model | Description |
|---|---|---|
| 84-2000-0000-08 | TXP-FDE IR3-H2, SS, Flame Simulator Kit | |
| 84-1000-0000-08 | TXP-FDE IR3, SS, Flame Simulator Kit | |
|
84-8000-0000-01 | TXP-FDE HD Weather Cover |
| 84-8000-0000-04 | TXP-FDE Weather Cover for Models without Video | |
| 84-8000-0000-05 | TXP-FDE USB to RS-485 PC Converter Kit | |
|
84-8000-0000-08 | TXP-FDE Pole Mount Adapter, SS, 2” & 3” |
| 84-8000-0000-10 | TXP-FDE HD Duct Mount Kit without Sapphire Window | |
| 84-8000-0000-11 | TXP-FDE HD Duct Mount Kit with Sapphire Window | |
| 84-8000-0000-12 | TXP-FDE HD Airshield for Dust and Snow Protection | |
| 84-8000-0000-13 | TXP-FDE HD Paint and Dust Shield Adapter Ring Kit | |
| 84-8000-0000-14 | TXP-FDE HD Disposable Paint and Dust Shields (Qty. 10) |
