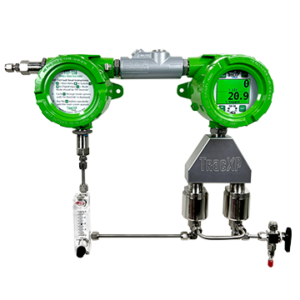

MACURCO TXP-SDA Sample Draw Assembly for Gas Detection System

The TracXP TXP-SDA Sample Draw Accessory is designed to pull a gas sample from limited access or hostile environment applications where typically fixed gas detectors can not be installed. The TXP-SDA, coupled with our TXP-T40 transmitter, is ideally suited for applications such as tank headspace, ducts, vessels, wet wells, sumps, confined spaces, storage bins, cabinets, and other challenging applications where sensors can not typically be directly installed.

			int(26009)
NULL


Made in USA. brand MACURCO, model TXP-SDA

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price По запросу

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of MACURCO

The TXP-T40 combined with the TXP-SDA provides single or dual sensor capability as well as a vivid visual status indication. The TXP-T40 can provide 4-20 mA, Modbus RS-485 RTU, onboard relays, and ethernet outputs. The TXP-SDA is suitable for Class 1, Division 1 hazardous environments.

Key features

  • Suitable for Class 1, Div. 1 applications
  • Supports single or dual-sensor configurations
  • Utilizes all sensors within the TXP-T40 product offering
  • Vivid status indicating color display
  • Dedicated calibration port to allow calibrations at flow to ensure maximum accuracy
  • Flow interruption indication
  • Non-intrusive set-up and calibration interface for hazardous locations
  • Long-life pump with brushless motor

Applications

  • Tank headspaces
  • Ducts & vents
  • Water / wastewater treatment facilities
  • Automotive & aircraft manufacturing
  • Food & beverage
  • Refining & chemical production
  • Pulp & paper
  • Power generation
  • General industry

Technical specifications of MACURCO

Display Status indicating color QVGA display shows engineering units, trend data and alarm levels
Power Supply 24 VDC at < 10 Watts
Sample Pump Long life 1.5 SLPM diaphragm pump with 24 VDC brushless motor
Inlet / Outlet Tubing 1/4″ stainless steel tubing with compression fittings
Housing Cast aluminum housing with epoxy paint
Signal Output Single or dual 3-wire 4-20 mA current source
10/100 Ethernet with Modbus/TCP and Web
Server allows remote view / configuration of
TXP-T40 transmitter values and settings
Dual RS-485 2-wire Modbus interface wiring
junction box with power-on indication and
terminations
Four standard Form C Relays rated at 5A
@30 VDC / 240 VAC
Five LED’s including Red / Green flow status
indication. Green indicates flow, Red indicates
flow interruption
Sensor Options Electrochemical: Toxics and Oxygen
Catalytic Bead: Combustibles / LEL
Infrared: Combustibles / LEL and CO2
Expand Table

Accessories for

Photo Model Description

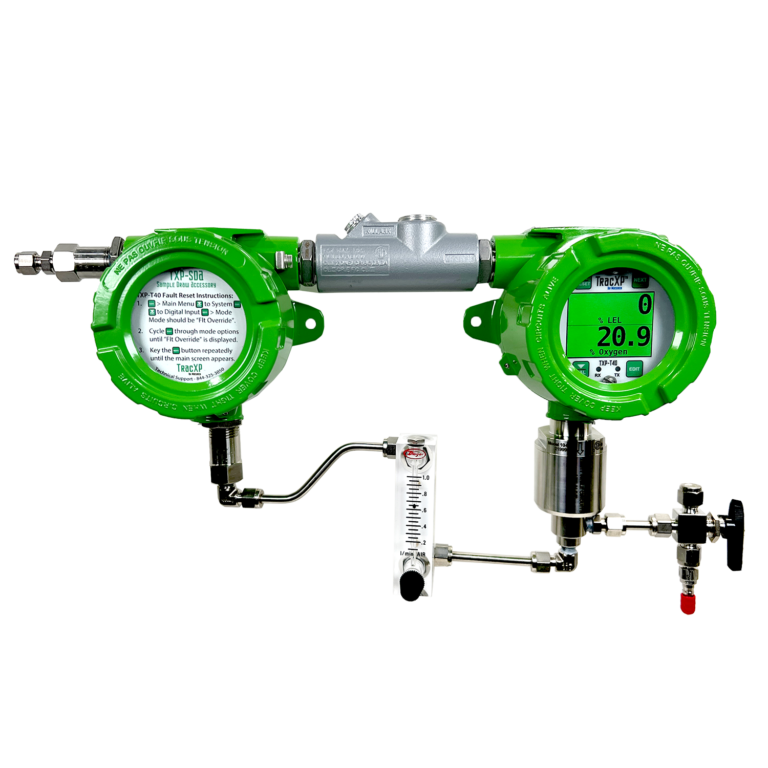

97-2111-3300-1S TXP-SDA Sample Draw Assembly, Single Sensor

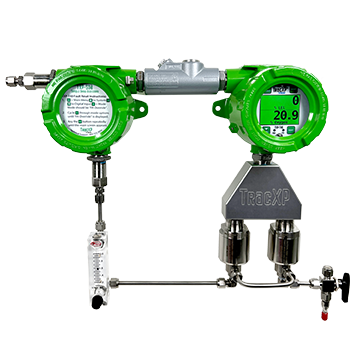

97-2111-3300-2S TXP-SDA Sample Draw Assembly, Dual Sensor
31-0006-4603-2 Gas Regulator, Demand Flow 0-3 LPM, Male
97-8000-0200-00 Heavy Duty Hydrophobic Filter Assembly
97-8000-0200-01 Heavy Duty Hydrophobic Filter (Pack of 5)
97-8000-0200-02 Heavy Duty Hydrophobic Replacement O-Ring
97-8000-0200-03 Heavy Duty Probe Filter Assembly
97-8000-0200-04 Heavy Duty Probe Filter & O-Ring Kit (Pack of 2)
97-8000-0200-05 End of Line Particulate and Mist Filter
97-8000-0200-06 End of Line Replacement Filter (Pack of 5)
97-8000-1100-00 TXP-SDA Cabinet, SS, Window, NEMA 4X
97-8000-1000-10 TXP-SDA Pump Assembly
97-8000-0400-30 TXP-SDA Flowmeter
97-8000-1000-20 TXP-SDA Flow Switch
97-8000-1000-80 TXP-SDA Flow Cell Screw / O-Ring Kit
97-8000-0500-10 TXP-SDA Flame Arrestor
