The TXP-SVT Signal Validation Tool simulates data transmission and reception of TracXP Wireless devices. A single SVT is a helpful device when setting up communication between another Wireless device, such as the TXP-WTA Wireless Transmitter, TXP-WCR Wireless Control Panel, or TXP-WAR Wireless Alarm Relay.
Made in USA. brand MACURCO, model TXP-SVT
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

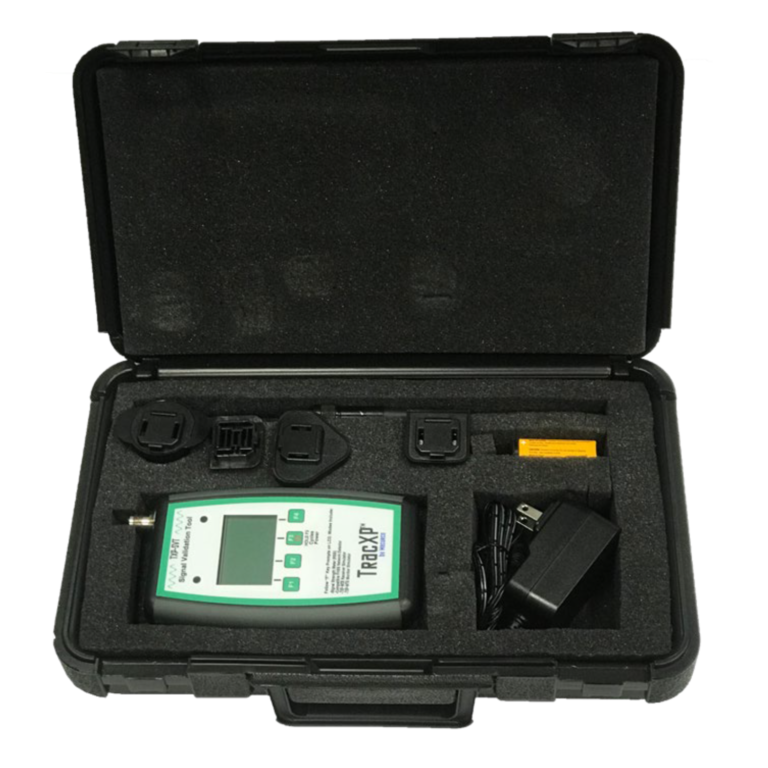

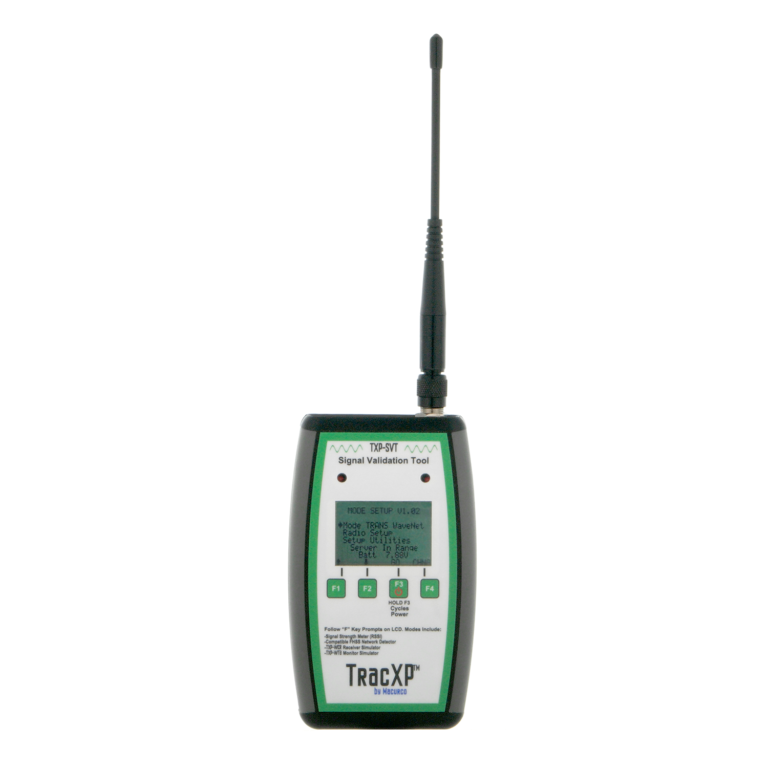

The hand-held TXP-SVT Wireless Signal Validation Tool (SVT) is designed with modes of operation for simulating TracXP by Macurco TXP-SVT Wireless products including TXP-WTA wireless transmitters (WTA’s), TXP-WCR wireless receivers (WCR’s) and TXP-WAR wireless alarm modules (WAR’s). SVT’s are supplied with either a 900MHz or 2.4GHz integrated radio module depending upon which TXP Wireless frequency is ordered.
A single SVT is very useful for commissioning and troubleshooting TXP Wireless systems that are already installed at a site. However, it is highly recommended that two SVT’s be used to survey sites and approve TXP Wireless device locations prior to installation. One SVT may be set as a SERVER in Rx (receive) mode while another may be set as a CLIENT in Tx (transmit) mode. The SERVER SVT simulates either a WLR or WAR location while the CLIENT simulates TXP-WTA locations. SVT diagnostic features include Rx / Tx counters along with both tabulated and trended RSSI (Received Signal Strength Indication) values to determine signal strength and link integrity for the proposed wireless network. A 24 hour test is recommended to assure against high levels of interference at random times.
SVT’s are powered either by an integrated non-chargeable 9V Lithium battery or externally by a 1-amp 12VDC wall or automotive power point (cigarette lighter). The RP-TNC antenna connector supports the local rubber antenna or coax cabling to a remotely mounted stationary antenna. It is very important to evaluate sites using the same antennas intended for the installation. If longer distances may require Yagi directional antennas, then these should also be used during a Signal Validation.
Features:
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-SVT using the special form.
You can buy MACURCO TXP-SVT in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO TXP-SVT price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
