The TXP-WABX Wireless Alarm Bar is a notification device suitable for Class 1, Division 2 applications. The TXP-WABX communicates directly with TXP-WTA transmitters as well as TXP-WCR and TXP-C16X control panels via 900 MHz radio signal. The onboard horn provides a nominal output of 112 dBA with customizable volume control and has 64 different tones available.
Made in USA. brand MACURCO, model TXP-WABX
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

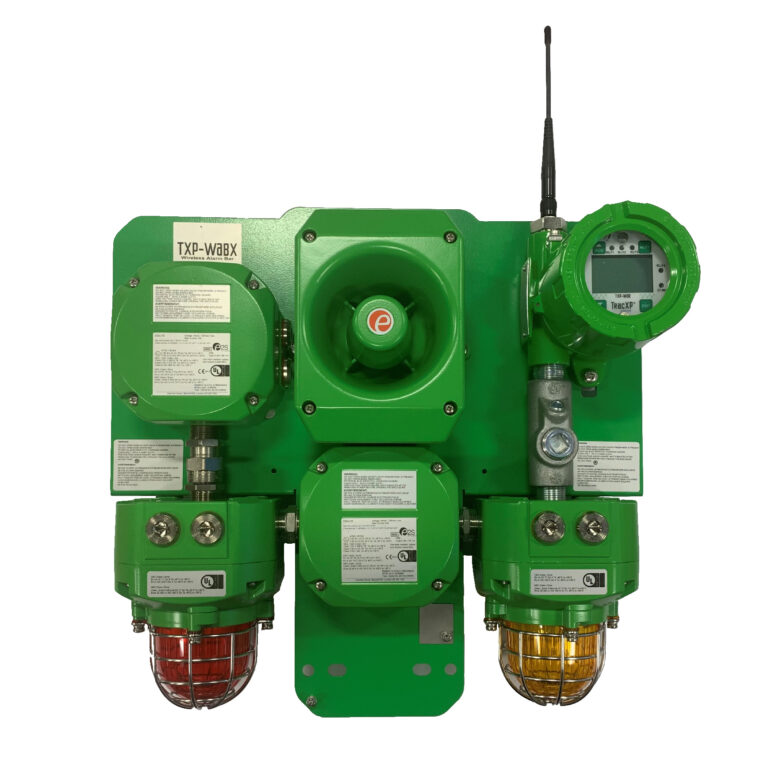

The TXP-WABX Wireless Alarm Bar is a notification device suitable for Class 1, Division 2 applications. The TXP-WABX communicates directly with TXP-WTA transmitters as well as TXP-WCR and TXP-C16X control panels via 900 MHz radio signal. The onboard horn provides a nominal output of 112 dBA with field customizable volume control and has 64 different tones available. The amber and red Xenon strobes provide 360° visibility of low and high alarm status. A pole mount kit is included and is compatible with diameters up to 4″. With a low profile and lightweight form factor of 33 pounds, this device can be easily transported and installed in remote or hard-to-reach areas.
Key features
Applications
| Dimensions | 18.0″ (L) x 18.7″ (W) x 6.7″ (H) |
| Shipping Weight | 33.0 lbs. (15.0 k.) |
| Power Supply | 85 – 264 VAC, 50 watt, 2.1 Amp |
| Horn | Maximum Output: 116 dBA @ 1 meter Nominal Output: 112 dBA @ 1 meter Selectable alarm stages/channels Choice of 64 alarm tone frequencies Adjustable volume control Temperature: -40°F to +158°F (-40 to +70°C) Approval: Class 1, Division 2 |
| Strobes (2) | Strobe type: Xenon Amber and red lenses (standard) Mechanically secured against shock Energy: 10 Joules Flash rate: 1Hz (60 fpm) Peak candela: 1,000,000 calc. from energy (J) Temperature: -40°F to +122°F (-40 to +50°C) Approval: Class 1, Division 2 |
| TXP-WAR | 900 MHz or 2.4 GHz radio Non-volatile memory retains configuration values during loss of power Four alarm indicators Four alarm level relays and a horn relay Multiple password levels for security Display: 64 x 128 pixel backlit graphic LCD LED indicators for relay and comm. status Temperature: -40°F to +140°F (-40 to +60°C) Suitable for Class 1, Division 2 environments |
TracXP Wireless Transmitters & Panels
| Part Number | Description |
| 83-1130-1000-10 | TXP-WTA Aluminum Transmitter, Single Integral Sensor |
| 83-1130-1100-10 | TXP-WTA Aluminum Transmitter, Dual Integral Sensor |
| 83-1330-2000-10 | TXP-WTA Poly Transmitter, Single Integral Sensor |
| 83-7002-0000-00 | TXP-WTA Aluminum Remote Sensor Assembly (15 ft.) |
| 83-7302-0000-00 | TXP-WTA Poly Remote Sensor Assembly (15 ft.) |
| 83-2340-0000-10 | TXP-WCR Poly Control Panel, 32 Channel, 100-240 VAC |
| 83-2240-0000-10 | TXP-WCR SS Control Panel, 32 Channel, 100-240 VAC |
Standard Wireless Packages
| Part Number | Description |
| 83-KA00-0000-10 | TXP-SWP1 (Single) (1) TXP-WCR poly, 50W, standard antenna, 10 ft. antenna extension, data logging / wired Modbus option (4) TXP-WTA aluminum, single integral sensor housing, magnetic mount kit, rainshield with calibration port Order Sensors Separately |
| 83-KB00-0000-10 | TXP-SWP2 (Dual) (1) TXP-WCR poly, 50W, standard antenna, 10 ft. antenna extension, data logging / wired Modbus option (4) TXP-WTA aluminum, dual integral sensor housing, magnetic mount kit, rainshield with calibration port Order Sensors Separately |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-WABX using the special form.
