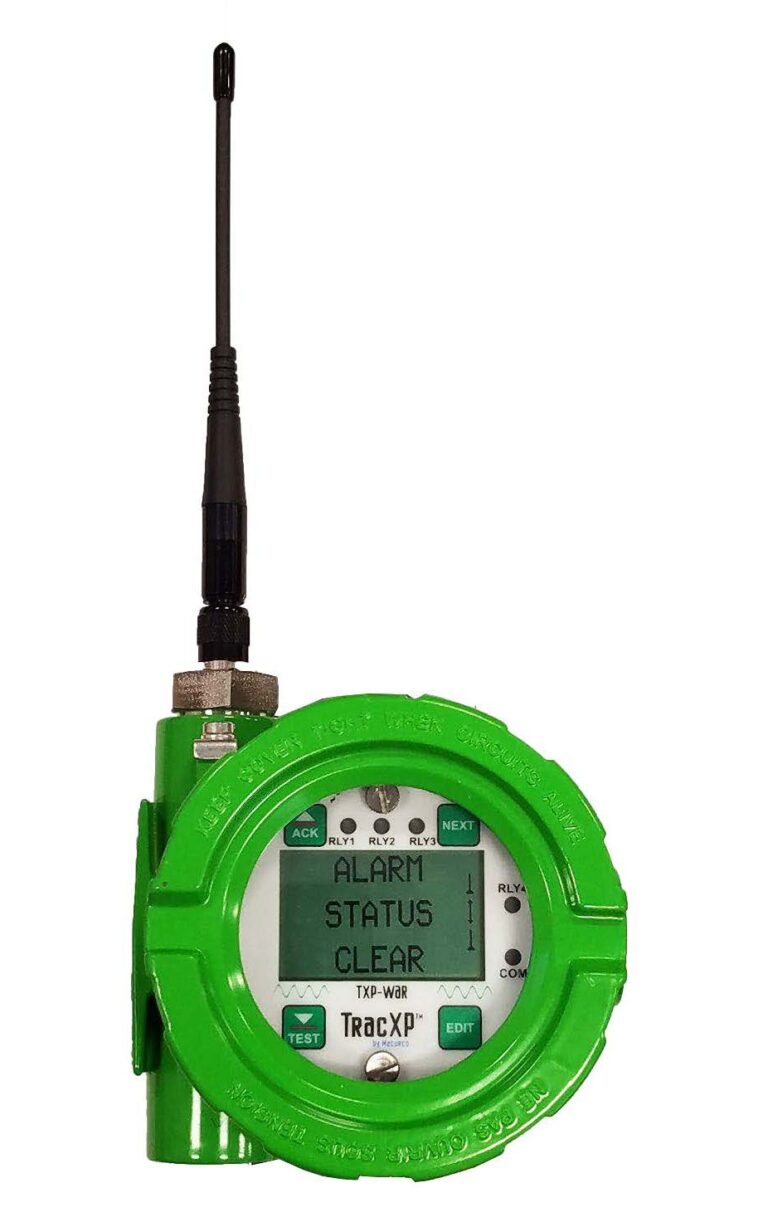

The TracXP TXP-WAR is a Wireless Relay device that receives a wireless signal from the TXP-WTA Sensor Transmitters to provide electromechanical relays to interface TXP-WTA system alarms with strobes, horns, or other wired components. The TXP-WAR can also be used to serve as a Repeater to extend the wireless communication range to a TXP- controller. These two modes of operation that can be used in individual or simultaneous applications. The TXP-WAR is available with globally acceptable 2.4GHz or 900MHz frequency to meet your communication requirements.
Made in USA. brand MACURCO, model TXP-WAR
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The TracXP by Macurco TXP-WAR is designed to control alarm event relay switching for up to 32 TXP-WTAs. The TXP-WAR receives Fail, Alarm 1, Alarm 2 and Alarm 3 signals from each TXP-WTA, maps them to its four programmable relays, while adding features such as Failsafe, Alarm Acknowledge and Refresh. Four standard 5- amp alarm relays may be programmed to activate based upon various alarm combinations. These four programmable relays may then be mapped to a single dedicated horn drive which may be set to off, pulse or steady for each of the relays.
Key features
| Power Input | 10-30 VDC, 3 watts maximum |
| Input Signal | |
| 900MHz Receive Sensitivity Set At -100 dBm 2.4GHz Receive Sensitivity Set At -95 dBm |
|
| 900MHz Input Entails: 2mA during “sleep” mode 40mA while receiving beacon Up to 1 amp during 1 watt “transmit” mode |
|
| 2.4GHz Input Entails: o 2mA during “sleep” mode o 170mA during 125mW Broadcasts |
|
| Standard Output | Frequency-Hopping Spread Spectrum (FHSS) Wireless Modem w/ Data Encryption Frequency-Hopping Within 900MHz Occurs Between 902 – 928 MHz. Frequency-Hopping Within 2.4GHz Occurs Between 2400 – 2483.5 MHz 900MHz Power Adjustable From 10mW to 1 watt 2.4GHz Outset Set At 125mW/21dBm |
| Accuracy | GHz frequency range: 2400 – 2483.5 MHz with 42 hops 2.4GHz indoor/urban range: Up to 1500 feet with 7dBi collinear antenna 2.4GHz outdoor RF LOS range: Up to two miles with high-gain antenna 900MHz frequency range: 902 – 928 MHz with 50 hops 900MHz indoor/urban range: Up to 3000 feet with 2dBi dipole antenna |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-WAR using the special form.
You can buy MACURCO TXP-WAR in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO TXP-WAR price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
