The TracXP TXP-WCR (Wireless Controller Receiver) is available with 900MHz frequency to meet your communication requirements. Each TXP-WCR may be equipped with single or dual gas sensors and transmit two of the 32 maximum channel values to the controller and/or wireless alarm relay.
Made in USA. brand MACURCO, model TXP-WCR
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

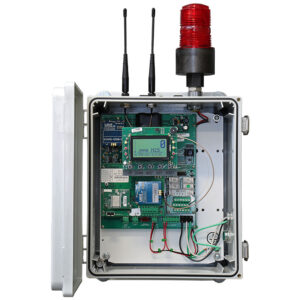

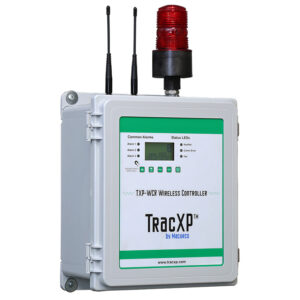

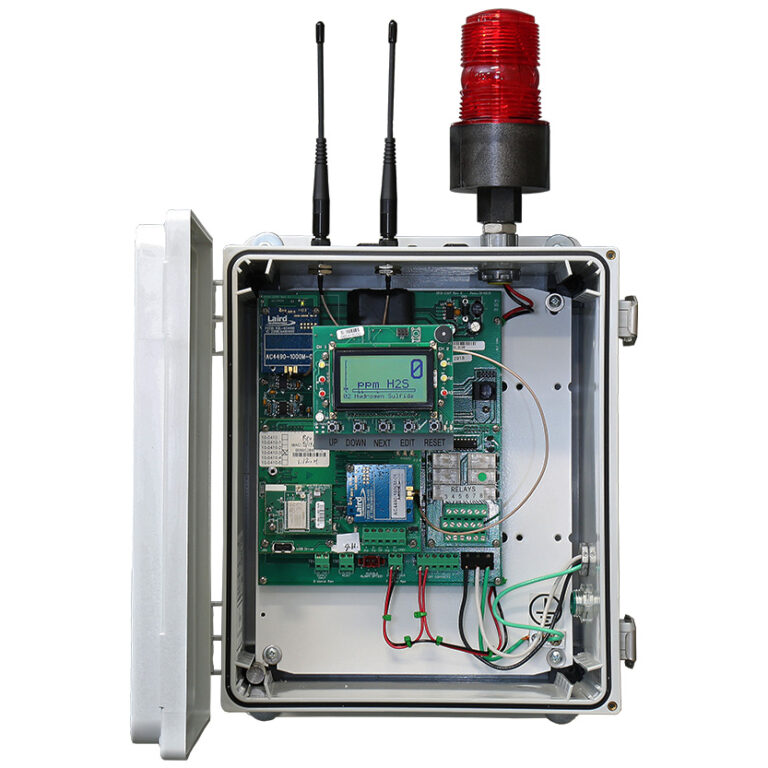

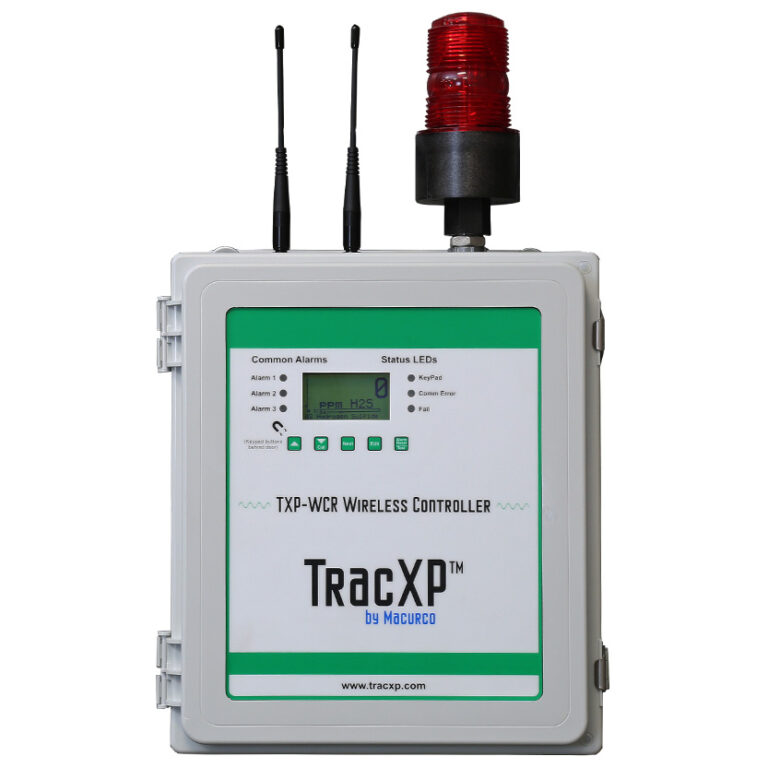

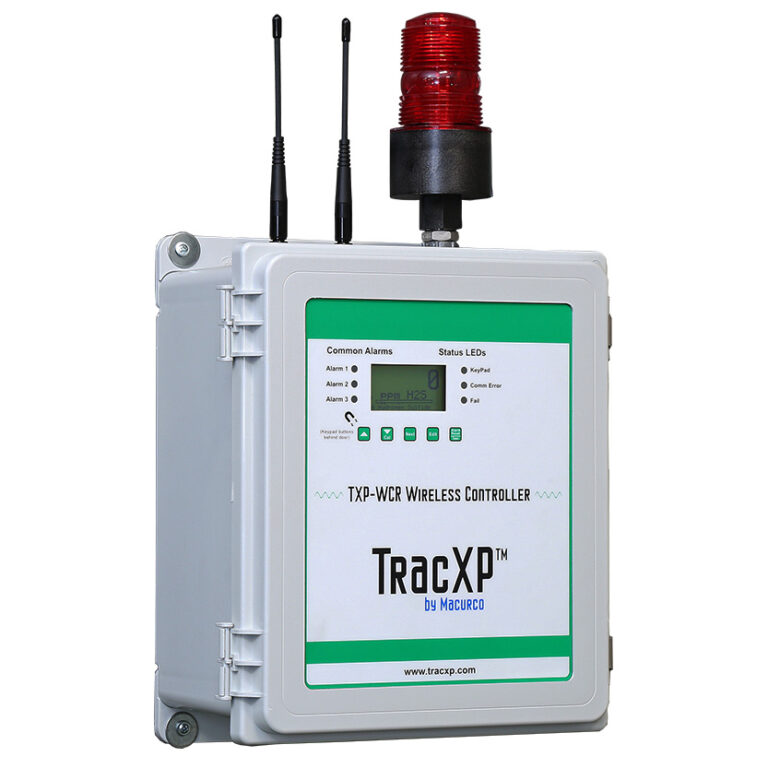

The TracXP TXP-WCR 32 channel wireless controller/receiver utilizes the robust 900 MHz frequency to meet your most demanding communication requirements. The TXP-WCR is suitable for 12VDC Solar Power Systems or operating on 120V – 240V AC. To simplify the setup, the TXP-WCR receives all channel configuration information from the TXP-WTA wireless transmitters, displaying the status of each channel. The Wi-Fi option allows the users to change configuration settings and view/download time-stamped logs of events and alarms and view real-time data from the system. The TXP-WCR has a magnetic non-intrusive interface for use in hazardous locations and when used in non-hazardous or declassified areas, internal pushbuttons simplify setup and programming.
Key features
Applications
| Size | 6.2″(L) x 9.8″(W) x 13.7″(H) Aluminum Housing 7.3″(L) x 12.1″(W) x 14.1″(H) Poly Housing |
| Shipping Weight | 12.6 lbs. Aluminum Enclosure 18.2 lbs. Stainless Steel Enclosure |
| Power Supply | AC Power 100-240VAC 50/60Hz at .80-amp Max, 40 watts Max Steady-State 10-30VDC, 3 watts max (basic WCR with all relays energized) |
| Input | Wireless Communication from the TXP-WTA |
| Standard Output | 900MHz Power Adjustable From 10mW to 1 watt |
| Display | 128X64 Pixel Graphic LCD |
| Temperature | -35°F to 140°F (-25°C to 60°C) |
| Humidity | 0-90% RH Non-Condensing |
| Approvals | TXP-WCR/PY NEMA 4X non-metallic polyester wall mount. DIV 2 Groups A,B,C,D; Category II and pollution degree 3 NEMA 4X; IP66 TXP-WCR/PCS NEMA 4 painted carbon steel wall mount. DIV 2 Groups A,B,C,D Category II and pollution degree 3 NEMA 4; IP66 TXP-WCR/SS NEMA 4X stainless steel wall mount. DIV 2 Groups A,B,C,D Category II and pollution degree 3 NEMA 4X; IP66 TXP-WCR/XP NEMA 7 wall mount for DIV 1 & 2 Groups B, C, D Includes ‘O’ Ring in door to satisfy NEMA 4 rating. |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-WCR using the special form.
You can buy MACURCO TXP-WCR in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO TXP-WCR price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
