Wireless Transmitter
Made in USA. brand MACURCO, model TXP-WTA
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

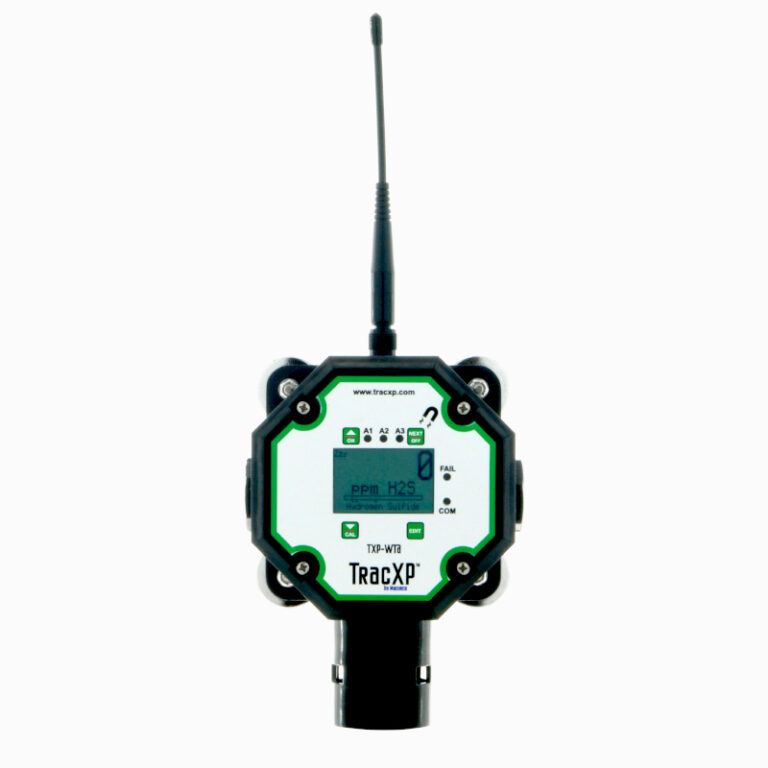

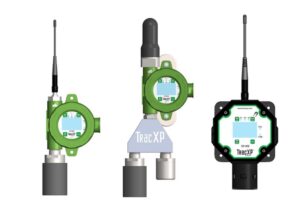

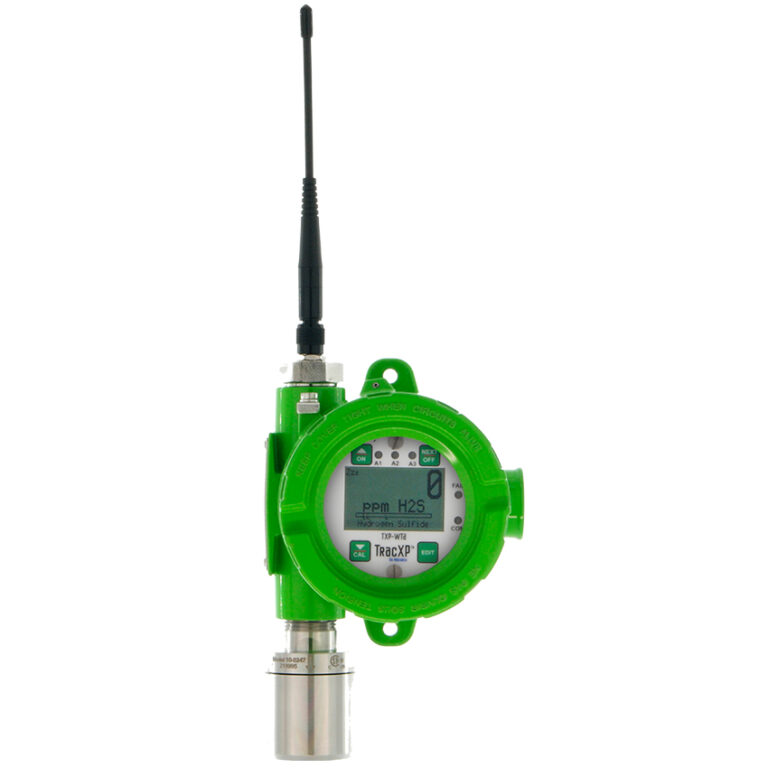

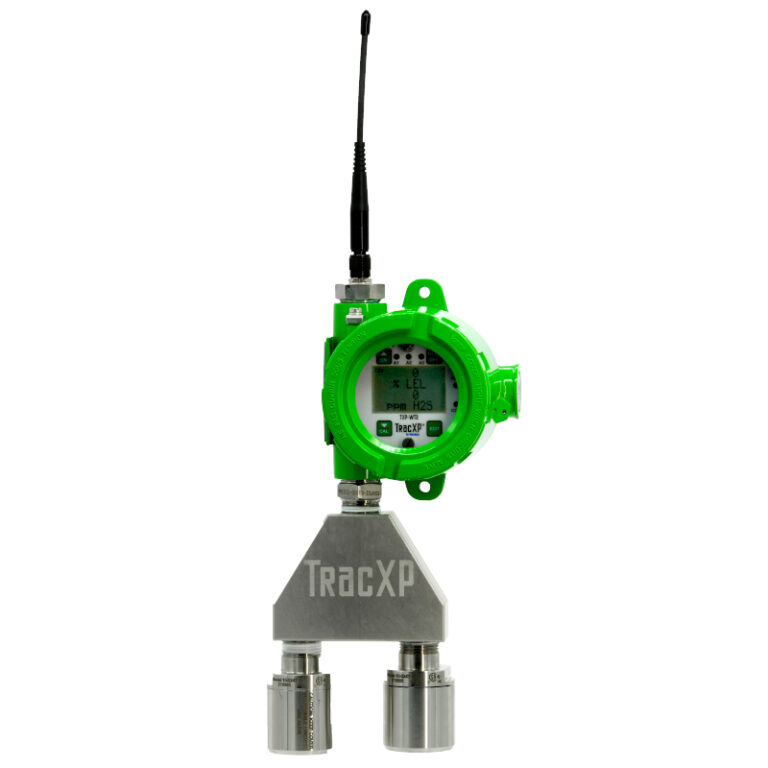

The TracXP TXP-WTA wireless gas transmitter is available using a robust 900 MHz radio frequency to meet your most demanding communication requirements. The TXP-WTA can be configured in single or dual sensor configurations to allow redundant readings for critical operations or monitoring combination gases. The TXP-WTA’s smart sensors allow changing sensor types quite easily and utilizes the same sensors as our TXP-T40 wired transmitters. The TXP-WTA also supports integral and remote sensor options. Intuitive non-intrusive magnetic interface makes set up and programming quick and easy. Power options include standard 3.6V disposable Lithium battery for portability or a 12–24 VDC power option for longer term or permanent installations.
Key features
Applications
| Size | 5″(L) x 5.4″(W) x 8″(H) Aluminum housing 4″(L) x 5″(W) x 7″(H) Poly housing |
| Shipping Weight | 6.5 lbs. (3 k.) Aluminum housing 3 lbs. (2 k.) Poly housing |
| Power Supply | Disposable, internal D-cell lithium battery 12-24 VDC option |
| Input | Single or dual electrochemical or infrared sensors input capable 4-20 mA input option |
| Standard Output | Frequency-hopping spread spectrum (FHSS) Wireless modem w/ data encryption 900MHz power adjustable from 10mW to 1.0 watt/0-30dBm |
| Display | 64 x 128 Pixel LCD w/ 30-minute trend Baragraph & engineering units display |
| Temperature | -40°F to 131°F (-40°C to +55°C) *See sensor specs |
| Humidity | 0-95% RH Non-Condensing |
| Approvals | FCC 15.247 & Industry Canada (IC), CSA Certified for Class 1, Division 2 Hazardous locations |
| Performance | 900MHz indoor/urban range: Up to 3000 feet 900MHz frequency range: 902 – 928 MHz w/50 hops w/ 2dBi dipole antenna 900MHz outdoor RF LOS range: Up to 2-3 miles w/ high-gain antenna |
Sensor Options
| Ammonia (NH₃) | Oxygen (O₂) |
| Carbon Dioxide (CO₂) | Sulfur Dioxide (SO₂) |
| Carbon Monoxide (CO) | 4-20 mA input option |
| Chlorine (Cl₂) | |
| Combustibles (IR) | |
| Hydrogen (H₂) | |
| Hydrogen Chloride (HCl) | |
| Hydrogen Cyanide (HCN) | |
| Hydrogen Sulfide (H₂S) | |
| Nitric Oxide (NO) | |
| Nitrogen Dioxide (NO₂) |
| Photo | Model | Description |
|---|---|---|
| TXP-WCR | Controller / Receiver |
You can request the necessary certificates, documentation, instructions and user guide for MACURCO TXP-WTA using the special form.
You can buy MACURCO TXP-WTA in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MACURCO TXP-WTA price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
