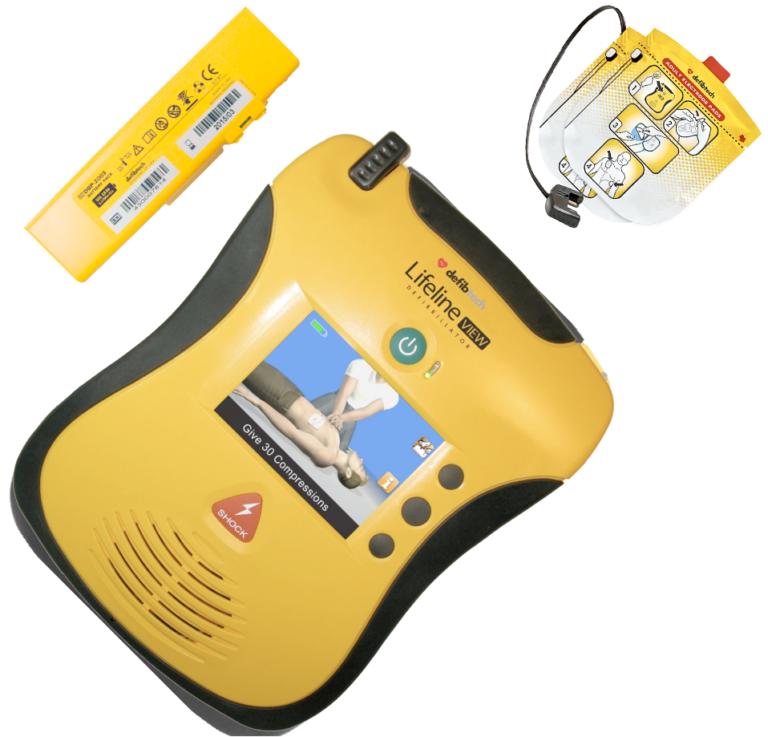

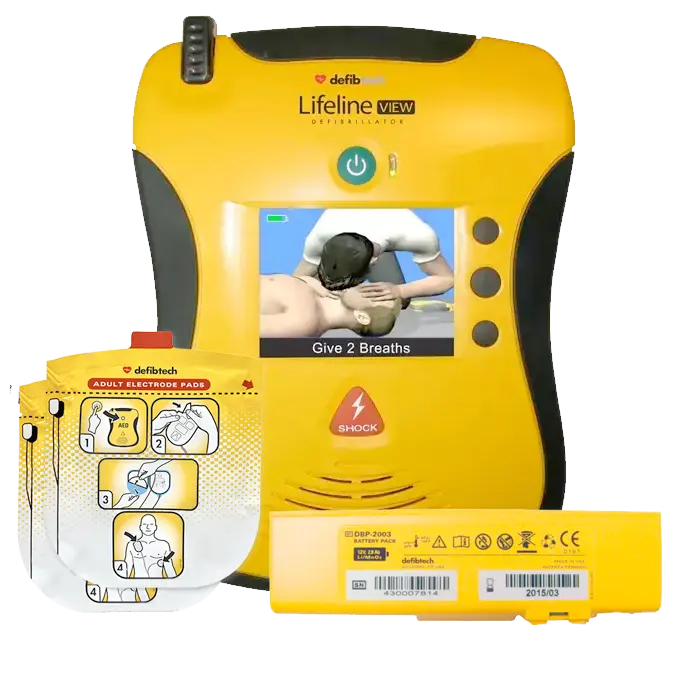

The Lifeline VIEW package provides a comprehensive foundation for life-saving intervention, including the below components as standard, but with the flexibility to add additional accessories as needed.
Made in United Kingdom. brand Martek Marine, model Lifeline VIEW
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The Lifeline VIEW is not just an AED; it’s your life-saving coach. Its full-colour screen provides clear, step-by-step visual and audio instructions, making it easy for anyone to respond to a cardiac arrest, even in stressful situations. Whether you’re the trained on duty first aider or simply the first person to attend the site of an SCA incident, the Lifeline VIEW’s intuitive design guides you through every step of the process.
Built to withstand the rigours of the marine environment, the Lifeline VIEW is both durable and reliable. Its robust construction, IP55 rating, and impact-resistant design ensure it can withstand harsh conditions. Additionally, the device’s long-lasting battery and self-testing features provide peace of mind, knowing it’s always ready when needed.
By equipping your vessel with a Lifeline VIEW, you’re equipping your people with the only treatment to tackle Sudden Cardiac Arrest. Its user-friendly design, advanced technology, and clear visual guidance make it the ideal choice for maritime safety.
Key benefits
| Defibrillator | |
| Type | Semi-automatic external defibrillator |
| Models | DDU – 2300 Series |
| Waveform | Biphasic Truncated Exponential (Impedance compensated) |
| Energy* | Adult: 150 Joules |
| Pediatric: 50 Joules (*Nominal into 50 ohm load) | |
| Video Prompts | Full motion video, on-screen text prompts |
| CPR Coaching | Video and voice coaching, On-demand video help |
| Voice Prompt | Extensive voice prompts guide user through operation of the unit |
| Controls | Lighted On/Off button | Lighted Shock button |
| Display | High-resolution colour LCD |
| Charge Time | Less than 4 Seconds (Shock decision to shock) (**Typical, new battery, at 25°C) |
| Rescue Protocol | AHA 2005 Supports protocol updates by the user (password protected) |
| Size | 7.3 x 9.5 x 2.3 inches (18.5 x 24 x 5.8 cm) |
| Weight (Approximate) | Less than 3 lbs (1.4kg) (With battery) |
| Defibrillation / Monitoring Pads | |
| Model | Adult – DDP-100 Child/Infant – DDP-200P |
| Type | Pre-connected, single-use, non-polarized, disposable, self-adhesive electrodes with cable and connector |
| Surface Area | 77 cm² (nominal, each pad) 50 cm² (nominal, each pad) |
| Battery Pack | |
| Model | DBP-2003 |
| Power | 12V, 2800 mA |
| Capacity* | 125 Shocks or 8 hours continuous operation (*Typical, new battery, at 25°C) |
| Standby-life* | 4 Years (*Typical, new battery, at 25°C) |
| Type | Lithium/Manganese Dioxide (Disposable, recyclable, non-rechargable) |
| Low Battery Indicators | Visible, Audible |
| Patient Analysis System | |
| Patient Analysis | Automatically evaluates patient impedance for proper pad contact. Monitors signal quality and analyzes patient ECG for shockable/nonshockable rhythms |
| Sensitivity/Specificity | Meets AAMI-DF-80 specifications and AHA recommendations |
| Event Documentation | |
| Internal Event Record | Critical ECG segments and rescue event parameters are recorded and can be downloaded to a removable data card. |
| PC-Based Event Review | ECG with event tag display, and audio playback when available. |
| Removable Storage | Up to 30 hours of ECG and event data storage (no audio option) or up to 3 hours of audio, ECG and event storage (audio option) on a removable data card. Actual length of storage is dependant on card capacity |
| USB Port | Event download and maintenance operations |
| Self Tests | |
| Automatic | Automatic daily, weekly and monthly circuitry tests |
| Battery Insertion | System integrity test on battery insertion |
| Pad Presence | Pads preconnected tested daily |
| User-Initiated | Unit and battery pack system test may also be initiated by the user |
| Status Indication | Visual and audible indication of unit status |
| Status Screen | Unit self-test results Pad and battery information (status and expiration) |
| Environmental | |
| Relative/Humidity | Operating/Standby: 5%-95% (non-considering) |
| Altitude | -500 to 15,000 ft (-150 to 4500m) per MIL-STD-810F 500.4 Procedure II |
| Temperature | Operating: 0 to 50°C (32 to 122°F) |
| Shock/Drop Abuse Tolerance | MIL-STD-810F 516.5 Procedure IV (1 meter, any edge, corner or surface, in standby mode) |
| ESD | EN 61000-4-2 (open air up to 8kV or direct contact up to 6kV) |
| Vibration | Ground (MIL-STD-810F 514.4 Category 20) Helicopter (RTCA/DO-160D, Section 8.8.2, Cat R, Zone, 2, Curve G) Jet Aircraft (RTCA/DO-160D Section 8. Cat H, Zone 2, Curves B & R) |
| Sealing/Water Resist | IEC60529 class IP55; Splash proof, Dust Protected (Battery Pack installed) |
| Crush Test | 1,000 pounds (450Kg) |
| EMC (Immunity) | IEC 61000-4-3 and IEC 61000-4-8 |
| EMC (Emission) | CISPR 11 Group 1 Level B and FCC Part 15 |
You can request the necessary certificates, documentation, instructions and user guide for Martek Marine Lifeline VIEW using the special form.
You can buy Martek Marine Lifeline VIEW in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Martek Marine Lifeline VIEW price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
