The Marine 4 is suitable for Zone 1 atmospheres, is MED ‘Wheelmarked’, has a simple 2-button operation, and is suitable for use on all vessel types. It can be supplied with an optional integral pump that offers flexibility for pre-entry into deep tanks, holds and void spaces.
Made in United Kingdom. brand Martek Marine, model Marine 4
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

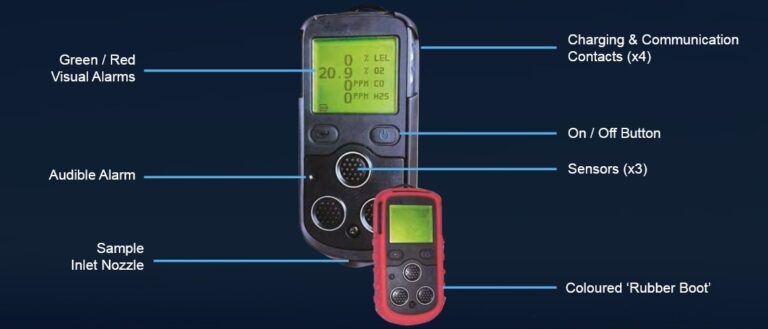

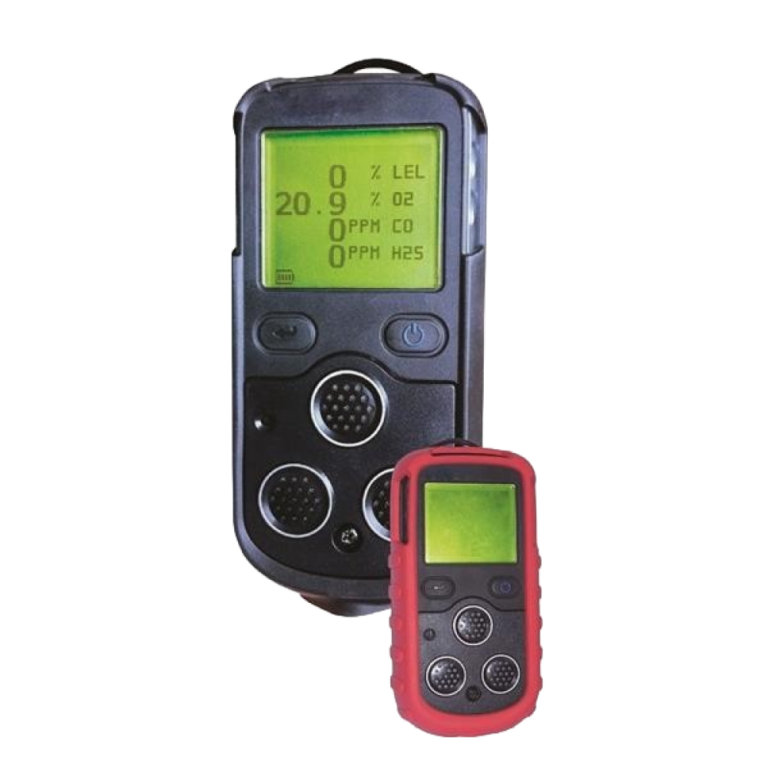

A robust and accurate portable gas detector, the Marine 4 provides unrivalled protection in confined space applications, with audible and visual alarms in the event of exposure to flammable or toxic gases. Detecting and displaying up to 4 gases simultaneously, it is suitable for a host of applications in a variety of industries. The Marine 4 can be configured to detect a combination of methane, oxygen, carbon monoxide, hydrogen sulphide, as well as other flammable gases.
Features;
Benefits
Pre-entry checking can be carried out with the optional internal sampling pump and diffusion operation, ensuring maximum battery life in confined spaces. It has been MED “Wheel marked” for use on all vessels with a simple 1-button operation. The Marine 4 is supplied with an integral pump with flexibility for pre-entry into deep tanks, holds and void spaces. This makes the Marine 4 a personal and portable gas detector.
Crew Safe – The Marine 4 has ‘crew-safe’ fail-safe sensor technology. The detector is robustly constructed and built to last on ships. Crews can also easily change the sensor, saving service time and money.
| Size: | 121 x 59 x 32mm (4.8″ x 2.3″ x 1.3″) |
| Weight: | 230g (8oz) with pump 215g (7.6oz) without pump |
| Temperature: | -20°C to +50°C (-4°F to 122°F) |
| Humidity: | 0 to 95% R.H non-condensing |
| Alarms: | Highly visible flashing LED, piercing >90dB audible |
| Display: | Green and red LCD backlight display |
| Datalogging: | Timed: 24 hours of limed logs at 1 log per minute Session: Minimum of 180 logs Calibration: Minimum of 8 calibration logs Bump Logs: Minimum of 180 logs |
| Battery: | Lithium Ion rechargeable battery Run Time: Up to 14 hrs (diffusion) Charging Time: < 4 hrs |
| Enclosure: | High impact rubberized polycarbonate case |
| Drop test: | 3m (10ft) |
| Ip rating: | IP67 (Dust-tight and waterproof to 1m) |
| Response times: | LEL = 10 secs (IEC 60079-29-1) O2 = 12 secs (BSEN 50 104) CO < 20 secs H2S < 20 secs |
| Approvals: | IEC Ex ia d IIC T4 Gb ATEX Ex II 2 G Ex ia d IIC T4 CSA Class 1 Div 1 Groups A, B, C, D, T4 Class 1, Zone 1 EX ia d IIC T4 MED Approved (0038) – Module B & E CE0518 |
| Warranty: | 2 years as standard |
| Accessory pack: | The Marine4 accessory pack includes the following as standard: USB Charging / Comms Clip, Universal Power Plug, User CD-ROM and Quick Operating Instructions. Tubing (3m) complete with a Quick Connector is also supplied as standard with pumped instruments. |
Sensor Specification
| Gas | Ranges | Increments | Sensor Type |
| LEL | 0-100% LEL | 1% LEL | Catalytic Bead |
| O2 | 0-25% | 0.1% | Electrochemical |
| CO | 0 – 1000ppm | 1ppm | Electrochemical |
| H2S | 0-9.9 ppm 10-100 ppm |
0.1 ppm 1 ppm |
Electrochemical |
You can request the necessary certificates, documentation, instructions and user guide for Martek Marine Marine 4 using the special form.
You can buy Martek Marine Marine 4 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Martek Marine Marine 4 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
