The Marine Tankscape (Shipsurveyor*) is versatile yet simple to use. It offers reliable Zone 1 atmosphere monitoring using infrared technology to detect up to 5 gases simultaneously. It was designed after extensive consultation with shipowners, ship managers, and shipping personnel. The result is a range of 7 instruments dedicated to the marine market.
Made in United Kingdom. brand Martek Marine, model Marine Tankscape
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
INERTED CARGO TANK & CONFINED SPACE GAS MONITORING

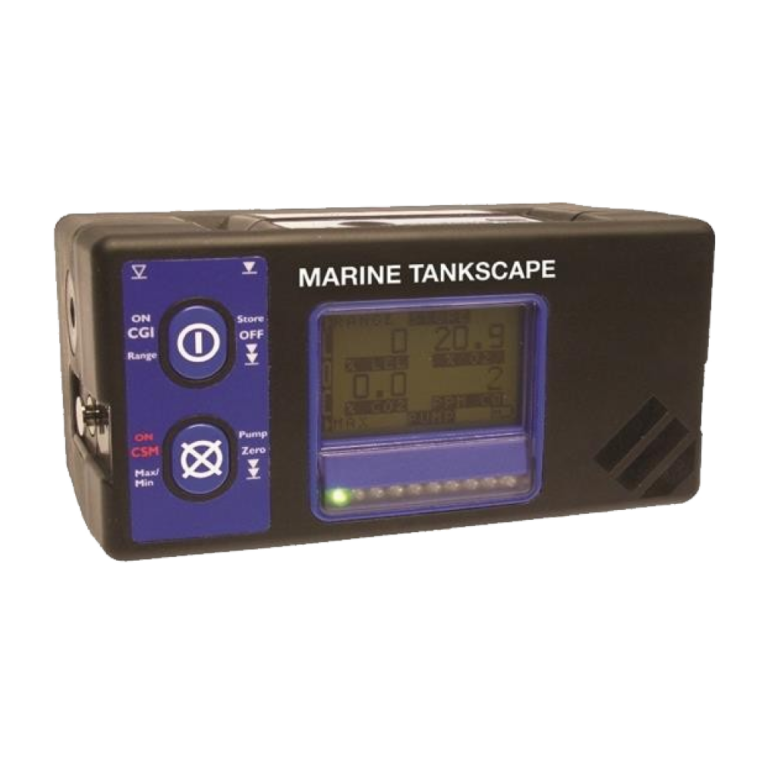

The Marine Tankscape is versatile yet simple to use. The feature-rich range of instruments are suitable for all marine applications including confined space monitoring, cargo monitoring and inerting. Up to 5 gases can be simultaneously measured and displayed. The hydrocarbon range, which utilises the latest infrared technology, can be calibrated with Butane, Propane or Methane, depending on application.
Features:
SHIP MANAGER Software:
| Dimensions | 180 x 95 x 100 mm / 7.1 x 3.7 x 3.9 in |
| Weight | 1.35 kg / 3.0 lbs |
| Display | LCD with backlighting |
| Humidity | 0-100% R.H, non-condensing |
| Temperature | -20°C to +50°C (-4°F to +122°F) |
| Alarms | Highly visible flashing LED’s on display panel Souncer in excess of 80dB(A), typically 85db(A) @12in |
| Sampling | Integral pump with flow fail sensor Sample path is protected by a hydrophonic filter and automatic pump switch-off |
| Battery | > 2 ‘D’ type batteries – alkaline or rechargeable |
| Battery Life | 20 hours alkaline or 8 hours rechargeable |
| Construction | Moulded polypropylene case |
| Rating | IP54 (Dust protected and splashproof) |
| Certification | ATEX II 2 G Ex d ia IIB T3 Gb (-20oC ≤ Ta ≤ +50oC) IECEx Ex d ia IIB T3 Gb (-20oC ≤ Ta ≤ +50oC) MED (0038/YY) – Module B&E |
Sensor Specification
| Gas | Range | Increments | Sensor Type |
| Flammable LEL | 0 – 9.9% 10 – 100% |
0.1% 1% |
Infrared |
| Flammable Volume | 0 – 9.9% 10 – 100% |
0.1% 1% |
Infrared |
| O2 | 0 – 20.9% 21 – 25% |
0.1% 1% |
Electrochemical |
| H2S | 0 – 100ppm | 1ppm | Electrochemical |
| CO | 0 – 1000ppm | 1ppm | Electrochemical |
| CO2 | 0 – 5% 5 – 20% |
0.1% 0.5% |
Infrared |
You can request the necessary certificates, documentation, instructions and user guide for Martek Marine Marine Tankscape using the special form.
