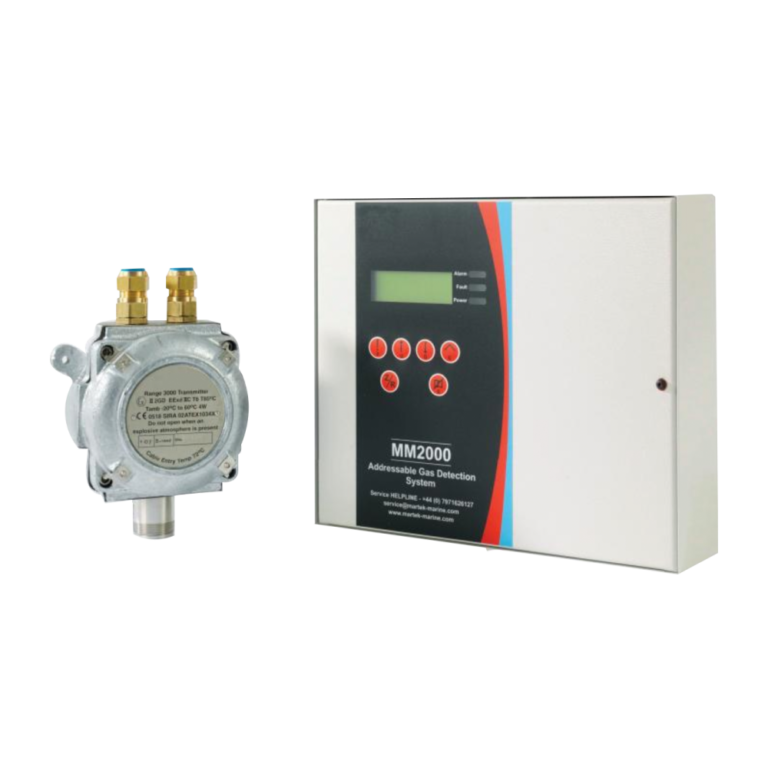

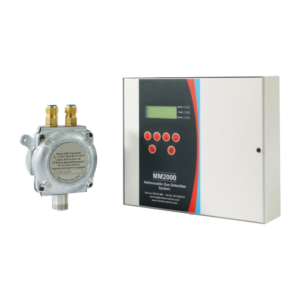

The MM2000 gas detector is an intelligent, addressable fixed system designed to protect against flammable, toxic, and asphyxiant gases.
Features:
Made in United Kingdom. brand Martek Marine, model MM2000
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The MM2000 system tests for toxic and flammable gases in a range of situations. Twin green/amber/ red LEDs for power, fault, and alarm on the controller with an in-built internal buzzer for alarm/fault warnings ensure you’ll never miss a potential problem. The addressable fixed gas detection system is suitable for many applications – and is guaranteed to be SOLAS and ISGOTT compliant.
Features:
A single four-core cable enables the system to monitor from 1 to 32 sensors at any time, while the simple system loop sensor cable ensures low-cost installation. No moving parts mean simple operation without risks of failure, while low-level area monitoring enables constant assessment of safe gas levels. Commissioning and calibration take just one person in a fraction of the time compared to conventional systems saving you precious time and money. With the controller, you can easily monitor local areas at set levels. The simplistic design means that sensors can be changed as technology advances without the need for any retro-fitting, making it a future-proof system.
Use the MM2000 system for a range of applications, such as:

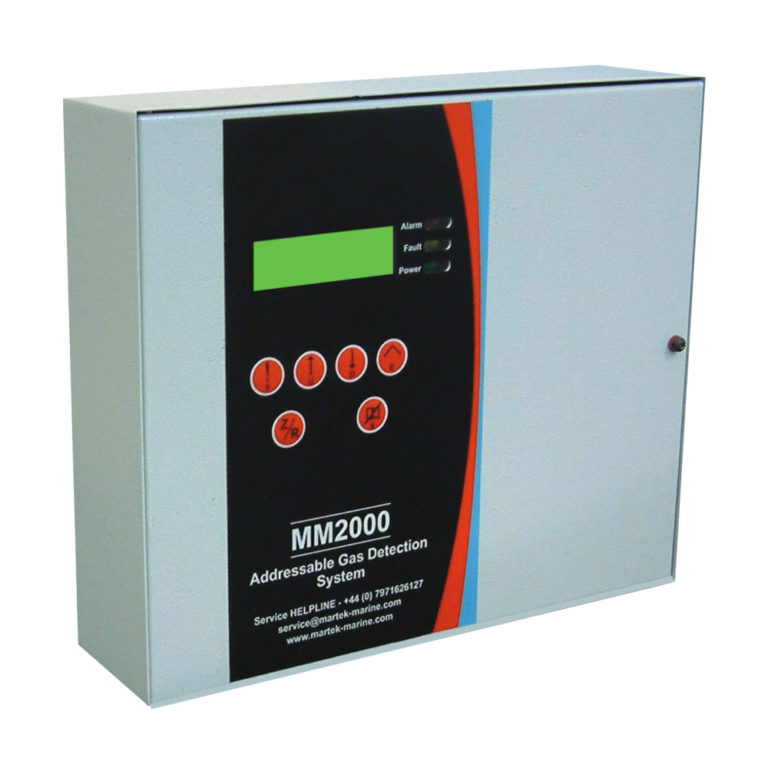

MM2000 Controller
| Sensor Points: | 1 to 32 |
| Power: | 24V dc, 110V/220V ac 50/60Hz |
| Inputs: | Flammable, toxic (e.g. H2S), oxygen |
| Display: | 4 line alphanumeric LCD indicating: Sensor address; gas type; concentration (rising or falling); peak hold; alarm status; system fault; line fault; line inhibit |
| Power: | Twin Green LEDs |
| Alarms: | Twin Red LEDs |
| Fault: | Twin Amber LEDs |
| User interface: | Menu driven via LCD 6No. panel mounted membrane push buttons with security |
| OUTPUTS: | 3 alarm levels per channel; 16 user programmable volt-free SPCO relays for shutting down air conditioning or other machinery as required N/E or N/DE, latched or unlatched Common fault relay SPCO N/E or N/DE Mains fail relay SPCO N/E or N/DE 9way D-Type connector ASC11RS232 comms |
| Ingress Protection: | IP52 |
| Local Alarm: | Internal buzzer for alarm/fault with mute Main network – 4-core (2 power – 2 comms) 1.5mm² screened max < 500m |
| Cable Details: | |
| Environmental: | Complies with Class Criteria |
| Temperature: | -40°C to +55°C |
| Panel Dimensions: | 315mm (W) x 260mm (H) x 75mm (D) |
| Fixing Detail: | 4 x M4 on 228mm (H) x 278mm (D) On rectangular template |
| Weight: | 3.4kg |
| Cable Entry: | Top, bottom or rear |
MM1000 Flammable Gas Detector
| Certification: | EEx d IIC T6 – zones 1 and 2 |
| Range flam: | 0 – 100% LEL |
| Range H2S: | 0-50ppm, 0-100ppm |
| Range O2: | 0-25% v/v |
| Range CO: | 0-300ppm, 0-500ppm |
| SCS cert no.: | EX98EII87X / 03ATEX1176X |
| Operation: | Continuous diffusion |
| Housing material: | 316 stainless steel |
| Dimensions: | 33mm (diameter) x 33mm (L) |
| Environmental data: | Tested on ENV2 (Lloyds test specification 1) |
| Temperature: | -40°C to +55°C |
| Weight: | 165g |
| Accessories: | Dust and spray protector, duct mount kit |
| Sensor junction box certification: | EEx d IIC T6 |
| Housing material: | Galvanised cast iron |
| Dimensions: | 126mm (diameter) x 86mm (D) |
| Fixing details: | 2 x M6 appropriate fasteners |
| Cable entry: | Top M20 x 1.5P |
| Weight: | 2kg |
| Sensor cable: | 4-core 1.5mm² screened and unarmoured marine approved |
You can request the necessary certificates, documentation, instructions and user guide for Martek Marine MM2000 using the special form.
You can buy Martek Marine MM2000 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Martek Marine MM2000 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
