Fast Responding With Metallic Sealed Reference Sensor

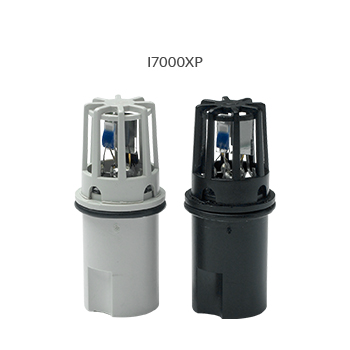

Made in United Kingdom. brand Michell, model HygroSmart I7000XP
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The XZR400 zirconium oxide gas purity analyzer from Michell Instruments is designed to measure oxygen as an impurity in inert gases such as nitrogen, carbon dioxide, helium and argon.
A range of trace oxygen analyzers utilizing Michell’s Metallic Sealed Reference Sensor (MSRS) technology. Designed to measure O2 as an impurity in pure inert gases such as N2, CO2, He, Ar and even Kr. The XZR400 can also be used for cylinder filling and other applications where a precise measurement of oxygen is required. There are three different chassis to choose from and various options including pumps, flow alarms and digital communications to match customer needs. The rack mount unit can be supplied with an Easidew or SF82 moisture transmitter fitted inside the case.
See datasheet for the full specification of the XZR400 Series range.
Applications
| Performance Specifications | |
| RH Measurement Range | 0 to 100% RH |
| RH Accuracy @ 23°C | ±1% RH (5 to 95% RH) |
| RH Thermal Coefficient | <0.03% RH/°C typical |
| RH Resolution | 0.1% RH |
| RH Measurement Response Time | <10 seconds |
| RH Element and Hybrid Electronics | HygroSmart 3 technology |
| RH Long Term Stability | ±1% RH per year |
| Temperature Technology | PT100 1/3 DIN* |
| Temperature Measurement Range | –40 to +85°C |
| Temperature Accuracy | ±0.2°C |
| Temperature Resolution | Infinite |
| Recommended Storage Range | +10 to +40°C |
| Electrical Specifications | |
| Output Signals White Housing: Black Housing: |
0–1 V 0.2–1 V |
| Temperature Output Signal Standard: Optional: |
3-wire PT100 No output |
| Digital Output Signal | I2C interface |
| Supply Voltage Range | +5 V DC ±1 V |
| Power Consumption | 300 µA @ 5 V |
| Operating Specifications | |
| Operating Temperature | –40 to +85°C |
| Storage Temperature | –40 to +85°C |
| Mechanical Specifications | |
| Housing Material | NORYL PPO UL94 V0 |
| Dimensions | L=33mm, ø14mm |
| Weight | 3g |
| Electrical Connections | 7 pins |
You can request the necessary certificates, documentation, instructions and user guide for Michell HygroSmart I7000XP using the special form.
You can buy Michell HygroSmart I7000XP in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell HygroSmart I7000XP price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
