To get the best possible performance from your MDM300 or MDM300 I.S., it is crucial to have appropriate sample conditioning for your measurement point. Options are available to cover all common sampling requirements – from verification of dry compressed air supplies, to the measurement of natural gas downstream of a glycol contactor.

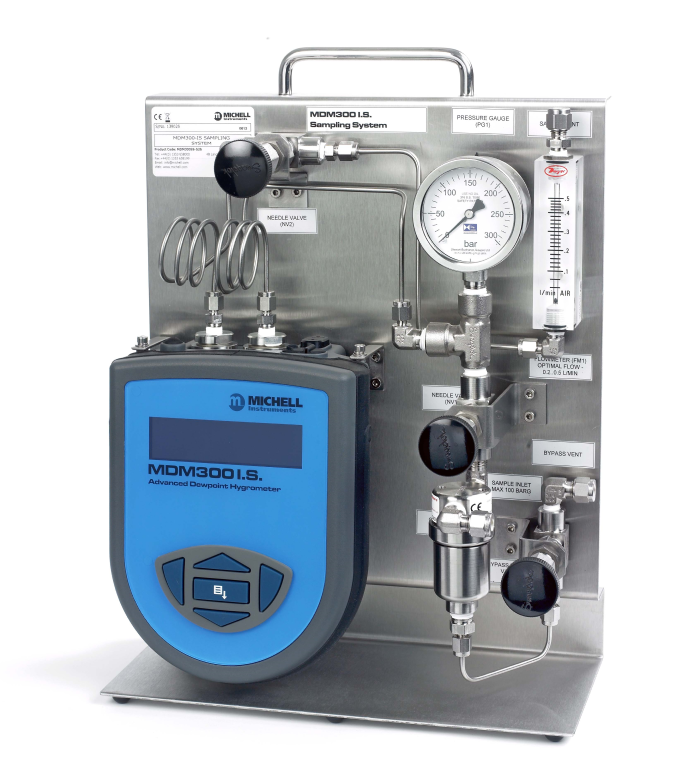

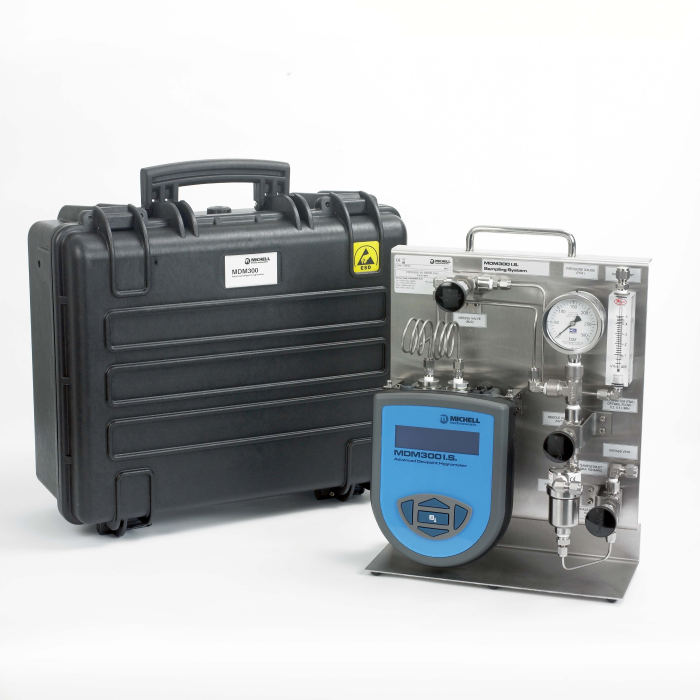

The panel mounted system is a complete system for portability when a single filter type is required. It allows measurement of samples up to 300 barg at either system or atmospheric pressure. Setting the required flow rate is simplified by the presence of bypass arrangement. As the system is mounted integrally with the instrument to a panel, the user only needs to connect an inlet and a vent, rather than assembling the system at the point of measurement. Also available is a solid transport case, so the entire panel can be protected for storage/transit etc.
Applications
| Operating Conditions | |
| Maximum Inlet/Sample Pressure | 300 barg max |
| Operating Environment | -20…+50°C |
| Storage/Transport Temperature | -20…+50°C |
| Mechanical Specifications | |
| Mounting Arrangement | Panel mounted on AISI 316 |
| IP/NEMA Rating | None |
| Gas Connections | Choice of Swagelok tube connectors |
| Flow Measurement | Dwyer Flowmeter |
| Flow Control | Swagelok® metering valves |
| Filters | Choice of: particulate and coalescing |
| Gas Wetted Materials | AISI 316 and Viton; other materials on request |
| Dimensions | 400 x 300 x 150 mm |
| Weight | 5 kg |
