Dew Point Meter for Quick Spot-Check Measurement of Moisture
Made in United Kingdom. brand Michell, model MDM300
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

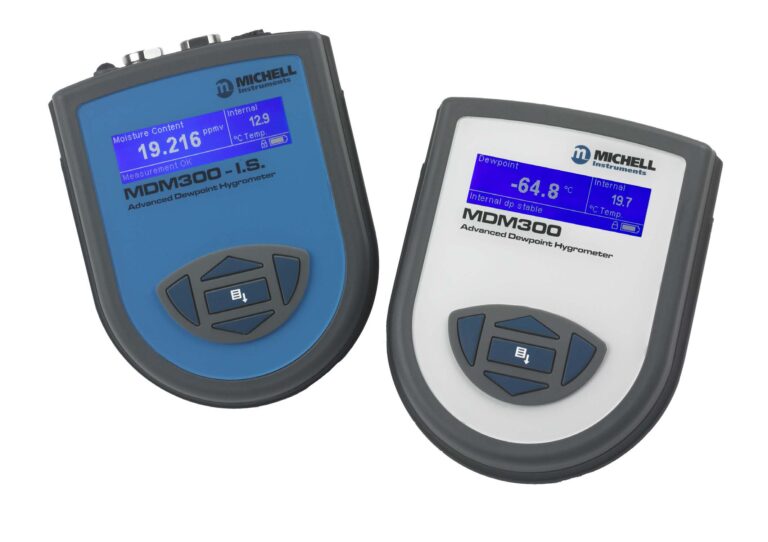

A high-speed portable dew-point hygrometer for rapid spot-check measurements of dew point or moisture content in compressed air, natural gas, high voltage switchgear quench gas and many other applications. The sensor responds quickly to changes in moisture whether from dry to wet or wet to dry. This means there is no need to wait between measurements, allowing operators to make more measurements in a day.

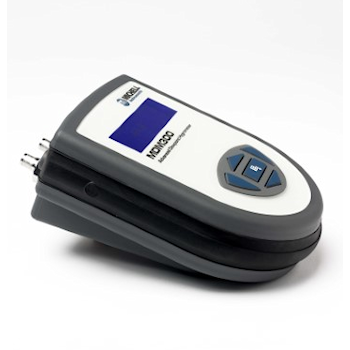

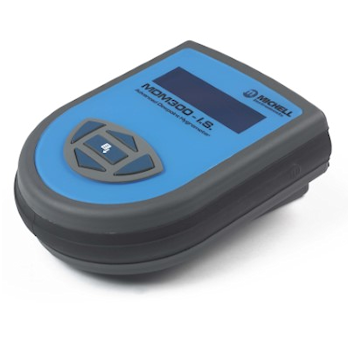

The general purpose MDM300 is suitable for safe area use, while the intrinsically safe MDM300 I.S. has global hazardous area approval from ATEX, UKCA, IECEx, cQPSus and EAC Ex and is able to measure moisture in flammable gases such as natural gas or bio-gas.
It has a hard-wearing, ergonomic case and an easy-to-use interface for comfortable and practical operation in the toughest industrial environments.
Applications
| Product | MDM300 | MDM300 I.S. |
| Performance | ||
| Measurement technology | Michell ceramic metal-oxide moisture sensor | |
| Accuracy | ±1 °C (±1.8 °F) from -60 to +20 °C (-76…+68 °F) dew point ±2 °C (±3.6 °F) from -100 to -60 °C (-148…-76 °F) dew point ±0.2 °C (±0.36 °F) temperature |
|
| Calibrated range | Spot checks: -70…+20 °C (-94…+68 °F) dew point Online analysis: -100…-70 °C (-148…-94 °F) dew point |
|
| Uncalibrated readings from | +20…+30 °C (+68…+86 °F) dew point | |
| Measurement units | °C, °F, K dew point & gas temperature ppmV, ppmW for air, N2, CO2, SF6 % RH, g/m3, g/kg |
°C, °F, K dew point & gas temperature ppmW & g/kg for air, N2, H2, CO2, SF6 ppmV, lb/mmscf & g/m3 for natural gas ppmV, g/m3 & % RH |
| Resolution (display) | 0.1 for all dew-point derived units and autoranging where appropriate | |
| Resolution (measurement) | Better than 0.1 °C (0.18 °F) dew point | |
| Typical response speed | T95 in ≤15 minutes to -60 °C (-76 °F) dew point | T95 in ≤30 minutes to -60 °C (-76 °F) dew point |
| Electrical Input/Output | ||
| Battery type | NiMH 4.8V | |
| Battery operating life | Up to 48 hours of typical usage between charges | Up to 24 hours of typical usage between charges |
| Battery charger | Intelligent charger (supplied) | Intelligent charger (charger not certified for hazardous area use) |
| Operating Conditions | ||
| Operating pressure | 350 barg (5076 psig) max | |
| Operating environment | Outdoors 0…+100% rh condensing | |
| Operating temperature | -20…+50 °C (-4…+122 °F) | |
| Storage/transport temperature | -20…+50 °C (-4…+122 °F) | |
| Mechanical Specifications | ||
| Display | Blue LCD graphical display | |
| Enclosure type | Steel fiber-loaded high-impact polyamide 6 | |
| IP/NEMA rating | IP66/NEMA 4 | |
| Gas connections | 1/8” NPT female (other options available) | |
| Flow across sensor | 0.2…1.2 Nl/min | 0.2…0.5 Nl/min |
| Gas wetted materials | AISI 316L stainless steel | AISI 316L stainless steel, PTFE Seal, Borosilicate glass, ceramic |
| Outline dimensions | 218mm x 170mm x 90mm (8.58” x 6.69” x 3.54”) (d x w x h) | |
| Weight | 1.35kg (2.98lb) | 1.5kg (3.3lb) |
| General | ||
| Data logging | 8 megabytes; Log interval: 5…60 sec; Logs per log file: Up to 10,000 | |
| Communications | (Wireless) BluetoothTM range up to 5m (version 2.0) | |
| User interface languages | English, French, German, Italian, Portuguese, Spanish | |
| Certification Codes | CE
UKCA |
ATEX/UKCA: II 1G Ex ia IIC T4 Ga (-20 °C…+50 °C) IECEx: Ex ia IIC T4 Ga (-20 °C…+50 °C) TR CU Ex: 0Ex ia IIC T4 Ga cQPSus: Class I, Division 1, Groups A B C D, T4 Class I, Zone 0, AEx/Ex ia IIC Ga T4 (-20 °C…+50 °C) |
* The end user has a responsibility to ensure that when installed in the Hazardous Area, the system is compliant with relevant local and international installation Standards for the use of equipment in explosive atmospheres.
You can request the necessary certificates, documentation, instructions and user guide for Michell MDM300 using the special form.
