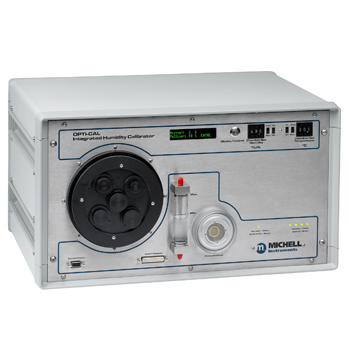

The OptiCal is a premium, self-contained calibrator for humidity sensors. It features an integrated chilled-mirror reference which enables the operator to perform calibrations that are traceable to national standards.
The calibration chamber accommodates up to 5 probes or sensors of any brand or model. The chamber is insulated, and temperature controlled for maximum stability and minimum temperature gradients.
Applications
| Humidity | |
| Generated Range | 10 – 90% RH |
| Control Element Accuracy | ≤ ±1% RH (10-70% RH) ≤ ±1.5% RH (70-90% RH) |
| Stability | ±0.2% RH (20-80% RH) |
| Temperature | |
| Generated Range | +10 to +50°C (+50 to +122°F) (lowest T set point = 10°C (18°F) below ambient) |
| Accuracy | ±0.1°C (±0.18°F) |
| Stability | ±0.1°C (±0.18°F) |
| Chamber | |
| Ramp Rate | +20 to +40°C (+68 to +104°F): 1.5°C / minute (2.7°F / minute) +40 to +20°C (+104 to +68°F): 0.7°C / minute (1.2°F / minute) |
| Control Element | Removable relative humidity sensor |
| Reference | |
| Accuracy | Dew Point Temperature: ±0.2°C (±0.36°F) Temperature: ±0.1°C (±0.18°F) |
| Measurement Units | Dew Point Temperature: (°C/°F), % RH Temperature: (°C/°F), g/m³, g/kg, water activity (aW) |
| Outputs | Analog: 4-20 mA or 0-20 mA over user-settable output Accuracy: ±0.2°C (±0.36°F) Digital: RS232 @ 9600 baud rate Alarm: Volt free contact, 30 V, 100 mA maximum |
| General | |
| Probe Ports | Up to 5 – sensor body diameters 5 to 25mm (0.2 to 0.98″) accommodated by port adapters |
| Chamber Volume | 2000 cm³ (112.1 in³) |

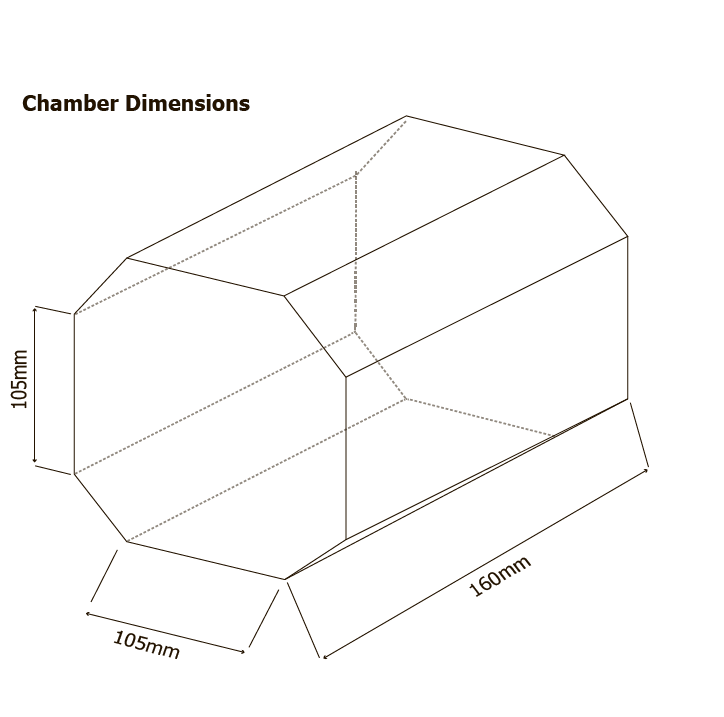

| Chamber Dimensions | 105 x 105 x 160 mm (4.13 x 4.13 x 6.3″) (w x h x d) |

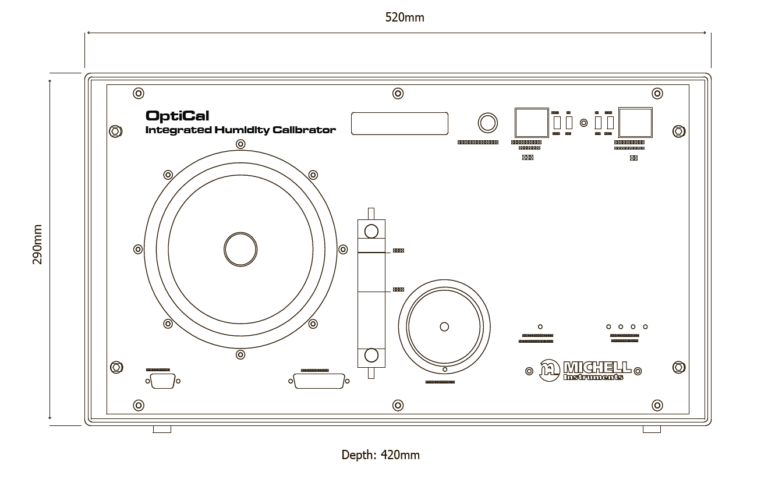

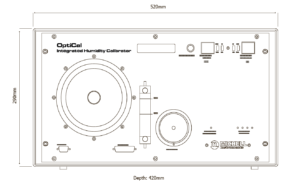

| Instrument Dimensions | 290 x 520 x 420 mm (11.4 x 20.5 x 16.5″) (h x w x d) |
| Set-Point Resolution | 0.1 for humidity and temperature |
| Displays | 2 line Vacuum Fluorescent Display |
| Supply | 85 to 264 V AC, 47/63 Hz, 150 VA |
| Weight | 20 kg (44 lbs) |
You can request the necessary certificates, documentation, instructions and user guide for Michell OptiCal using the special form.
