For safe operation of electrolyzers
Made in United Kingdom. brand Michell, model XTP601
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

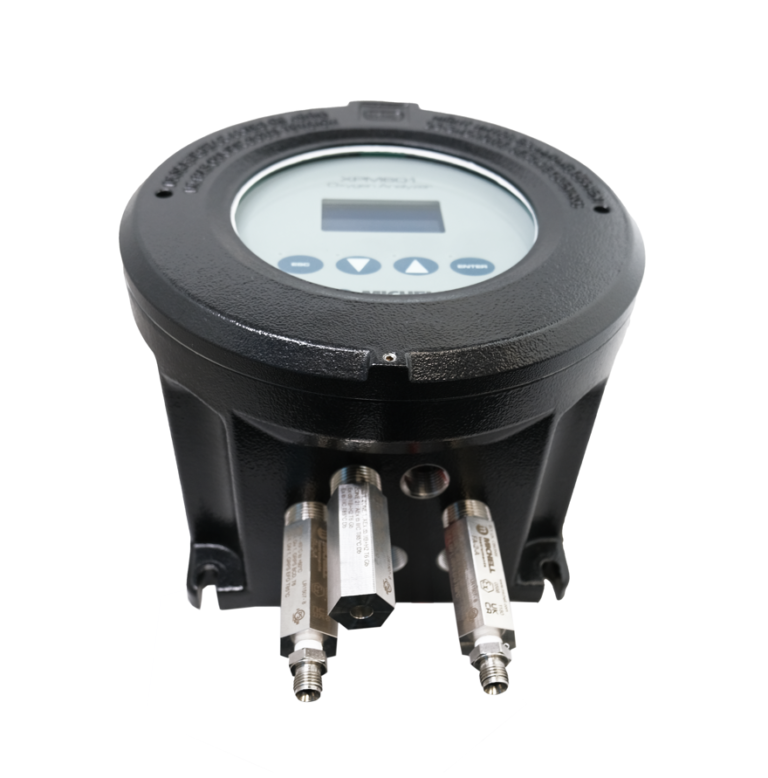

The XPM601 paramagnetic oxygen analyzer has been specifically designed for the measurement of oxygen within hydrogen gas. Utilizing paramagnetic measurement technology, the XPM601 paramagnetic oxygen analyzer enables fast response, accurate and repeatable measurements.
The XPM601 oxygen analyzer is ideally suited for the monitoring of oxygen in hydrogen generated by an electrolyzer, enabling optimal process control and safety as the gas composition change.
This small footprint Exd hazardous area certified analyzer the XPM601 is easy to integrate into process control and safety systems and is offered with SIL2 capability.
Applications
| Performance Specifications | |
| Measurement Technology | Paramagnetic oxygen analyzer |
| Gas | Non-condensing sample with particles <5 μm |
| Measurement Range | Up to 5% O2 |
| Display Resolution | 0.01% |
| Accuracy | < ±0.1% O2 |
| Repeatability | < ±0.012% O2 |
| Linearity | < ±0.1% O2 |
| Zero Stability | ±0.25% of range per month |
| Range Stability | ±0.25% of range per month |
| Sample Flow Rate | 100 ml/min (0.25 scfh) |
| Sample Pressure | 0.33 barg (4.78 psig) |
| Sample Temperature | A constant temperature of +5…+55 °C (+41…+131 °F) |
| Background Gas | Analyzer is calibrated in the background gas of H2 |
| Electrical Specifications | |
| Analog Inputs | 1 off mA input for an external sensor (can be displayed on the screen) 1 off mA input to act as an active compensation for the process conditions |
| Analog Outputs | 2 off 4…20 mA outputs (powered with 24V excitation voltage) |
| Alarms | 2 off single pole changeover (SPCO) relays for O2 concentration (250 V, 5 A max) |
| Digital Communications | Modbus RTU over RS485 |
| Power Supply | 24 V DC, 1.5 A max |
| Operating Conditions | |
| Ambient Temperature | +5…+60 °C (+41…+140 °F) +5…+50 °C (+41…+122 °F) cQPSus |
| Atmospheric Pressure | 750 mbar…1250 mbar |
| Mechanical Specifications | |
| Warm-up Time | < 25 minutes |
| Stabilization Time | 5 minutes |
| Wetted Materials | 316 stainless steel, Viton ‘O’ ring, borosilicate glass, Electroless Nickel, platinum, platinum/iridium alloy |
| Gas Connection | 1/8″ NPT (female) |
| Ingress Protection | IP66, NEMA 4X |
| Hazardous Area Classification | |
| ATEX/UKCA * | II 2 G D, Ex db IIB +H2 T6 Gb, Ex tb IIIC T85 °C Db IP66 |
| IECEx * | Ex db IIB +H2 T6 Gb, Ex tb IIIC T85 °C Db IP66 |
| cQPSus ** | Class I, Division 1, Groups B, C & D T6 Class II, Division 1 Groups E, F & G Class I, Zone 1 AEx db IIB+H2 T6 Gb / Ex db IIB+H2 T6 Gb Zone 21, AEx tb IIC T85°C Db / Ex tb IIC T85°C Db |
* Maximum temperature rating for ATEX/UKCA and IECEx Ta = -15 °C…+60 °C
** Maximum temperature rating for cQPSus Ta = -15 °C…+50 °C
You can request the necessary certificates, documentation, instructions and user guide for Michell XTP601 using the special form.
You can buy Michell XTP601 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Michell XTP601 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
