Robust Long-Life MSRS Zirconia Sensor
Made in United Kingdom. brand Michell, model XZR500
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

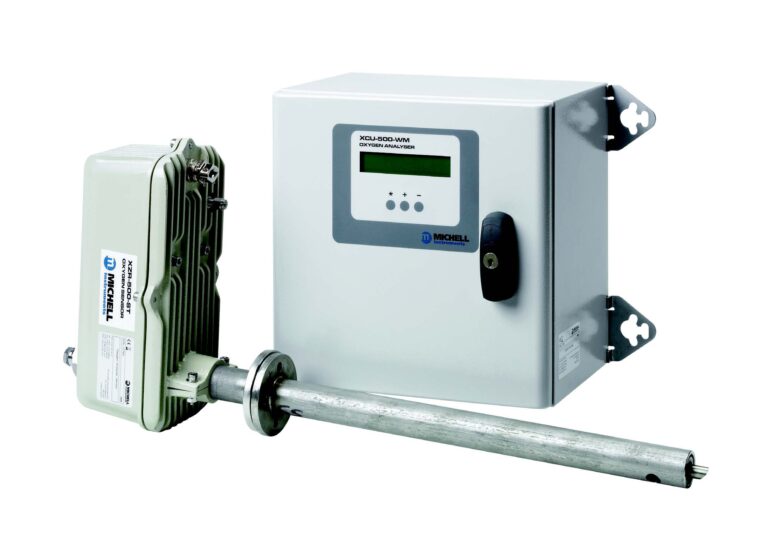

The XZR500 oxygen analyzer from Michell Instruments is designed to determine the excess air required for optimum combustion. It uses advanced Zirconium Oxide technology to measure levels of oxygen in harsh conditions such as boilers, incinerators, cremators and furnaces. It provides fast, accurate readings taken in the harshest of conditions. It has a range of probes from 400mm to 900mm in length with multiple material options from stainless steel to Hastelloy for corrosive environments to ceramic or silicon carbide for temperatures up to 1,400 °C. There is no chance of thermal shock or moisture condensing in the sensor as the analyzer uses a close coupled extractive sample method with the sensor in an oven maintained at 700°C. When utilising the Pitot effect, the sample is vented back inside the flue and no instrument air is required for sampling. Blowback and air ejector options are available if the application is more demanding, such as coal fired furnaces.
Applications
| Sensor Type | |
| Measurement Principle | Zirconium oxide sensor with metallic sealed reference and K Type T/C (MSRS) |
| Performance | |
| Gas Requirements | Typical exhaust gas |
| Measurement Range | 0.01%…25% oxygen |
| Accuracy | Better than ±2% of reading |
| Response Time (T90) | 20 seconds |
| Repeatability | ±0.1% |
| Drift | < 1% per month |
| Linearity | Better than ±1% |
| Sample Flow Rate | Flue gas at 0.5 m/sec (17.65 ft/s) minimum rate |
| Maximum Sample Pressure | Depending on application |
| Dust Loading | The back flush option is required for any sample containing > 250 mg/m³ particulates |
| Sample Temperature | Up to 1400 °C (2552 °F) (see probe selection in ‘Wetted Materials’) |
| Outputs | |
| Output Signal | One 0/4…20 mA linear with galvanic insulation output; 2nd optional output |
| Output Load | Over 1000 Ω |
| Self-Diagnostics | Included in readout |
| Output Ranges | Freely configured between 0.01 and 25% |
| Alarms | 2 alarms; user adjustable (10W), 1 fault alarm |
| Display Resolution | 0.1% standard |
| Power Supply | 110 V (100…120) 50…60 Hz or 220 V (190…240) 50 Hz |
| Power Consumption | 110 VA |
| Ambient Temperature Range | 0…+55 °C (+32…+131 °F) |
| Sensor Temperature | +700 °C (1292 °F) |
| Operating Humidity | 5…90% rh without condensation |
| Physical | |
| Dimensions | Control: 300 x 300 x 200 mm Sensor: 290 x 135 x 650 mm |
| Weight | Control unit: 7 kg Sensor head: 3.5 kg Probe: 1.5 kg to 4.5 kg |
| Wetted Materials (Maximum Temperature) | 316L stainless steel: up to +700 °C (1292 °F) Inconel: up to +1000 °C (1832 °F) HR160: +600…+1000 °C (1112…1832 °F)* C 2000: up to +600 °C (1112 °F)* Halar® coated: up to 120 °C (248 °F)** Ceramic: up to +1400 °C Silicon Carbide: 1300 °C (2372 °F) |
| Probe Lengths | 0.4, 0.6, and 0.9 m |
| Installation | Stack and wall mounting |
| Housing Ingress Protection | Sensor Head: IP53 Control unit: IP52 |
You can request the necessary certificates, documentation, instructions and user guide for Michell XZR500 using the special form.
