Flow switch for gas and liquid flow measurement and control, available in ExdIIBT4 or ExdIICT6 explosion-proof housing. This reliable and sensitive device is widely used in the petrochemical industry.
Made in Russia. brand MIRKIP, model MFSGE-325
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 455
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

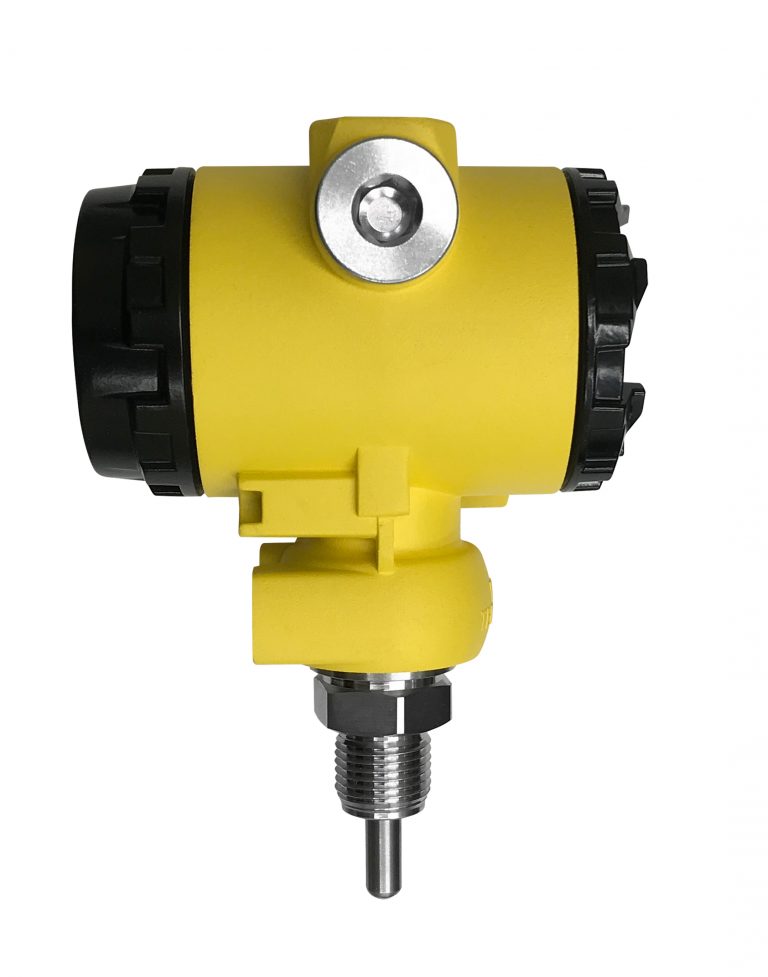

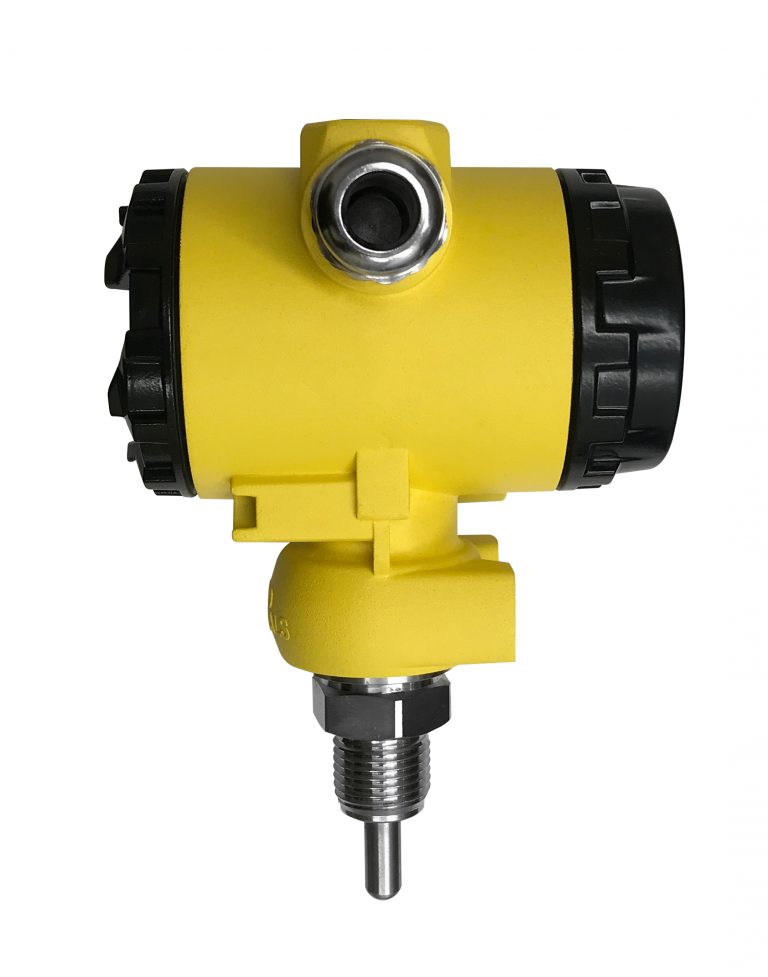

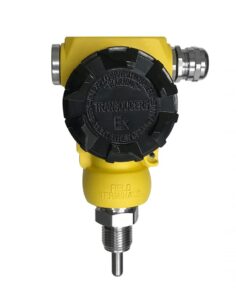

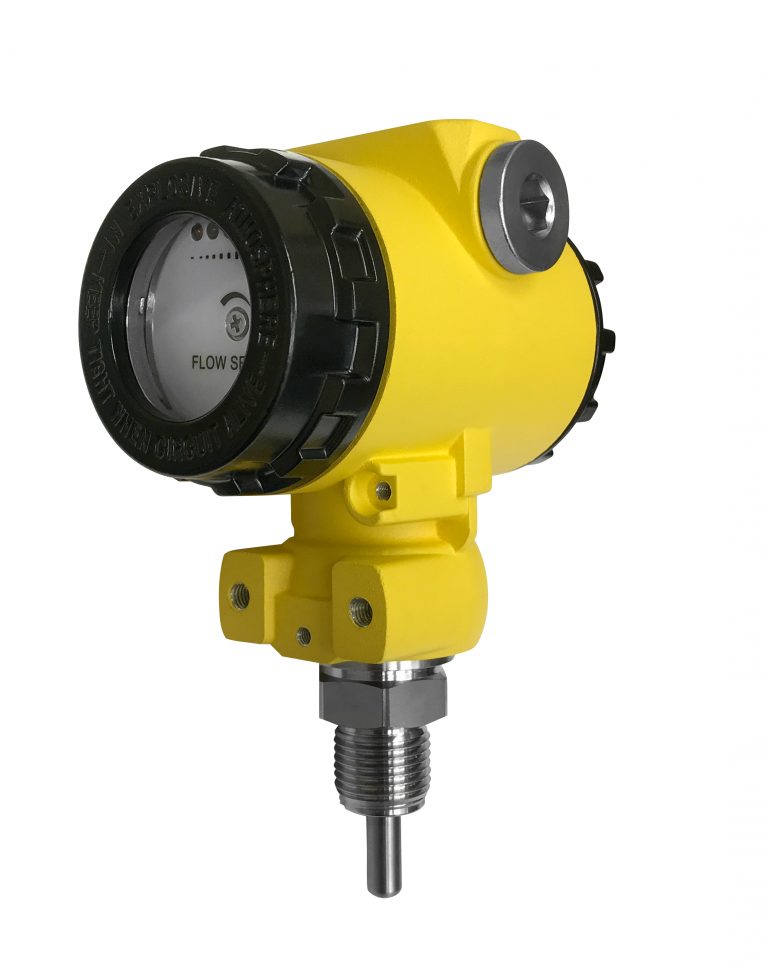

This Calorimetric Flow Sensor is also known as Thermal Dispersion flow switch, it is produced with Explosion proof shell, achieved ExdIIBT4 or ExdIICT6 grade, with ATEX certificate. it could be used to measure and monitor the Gas Flow and Liquid Flow, as a stability and sensitive flow switch, widely used in Petroleum Chemical Industry.
Modifications
| MFSGE325-Digital | 4 digital LED displays showing flow rate values from 0.00% to 100% |

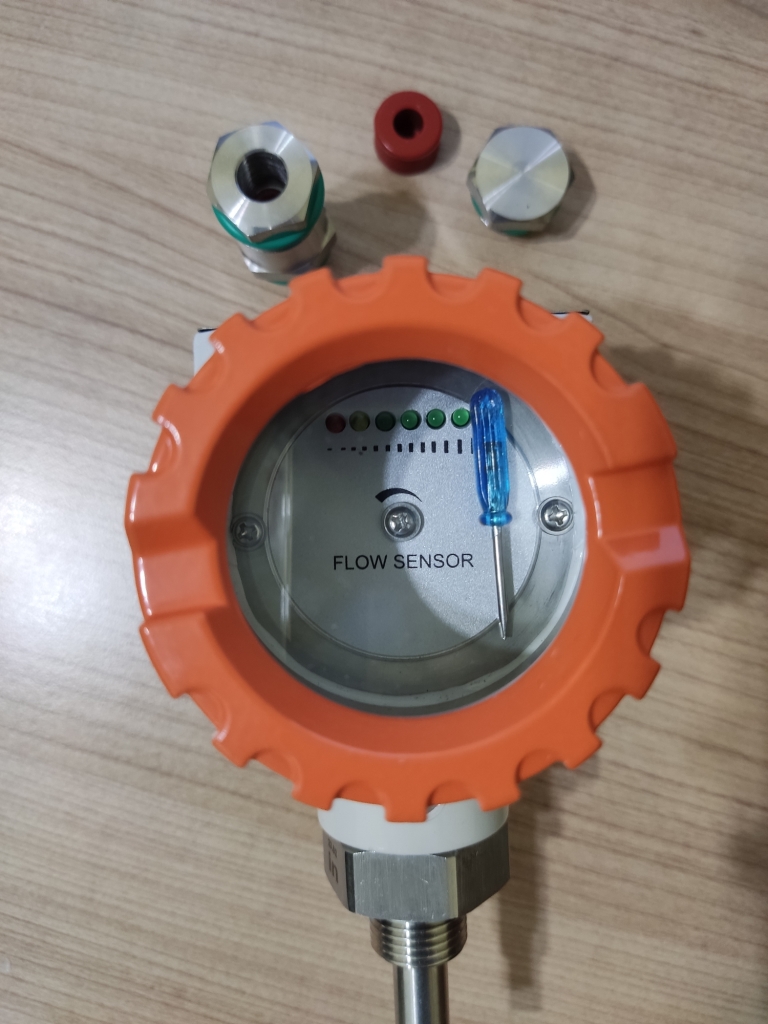

| MFSGE325-LED | 6 LED indicators displaying approximate flow rate; DPDT switch signal can be connected if required |
MFSGE325-Digital features only G1″ thread with 50mm probe. Low quantity prevents custom configurations.
MFSGE325-LED can be configured to customer specifications.
| Connection size | 1/2” or 3/4″ or 1″ male thread, Flange or other |
| Probe Material | standard SUS304, SUS316 or PTFE is available |
| Probe Length | 15 mm to 100 mm (specify in the order!) |

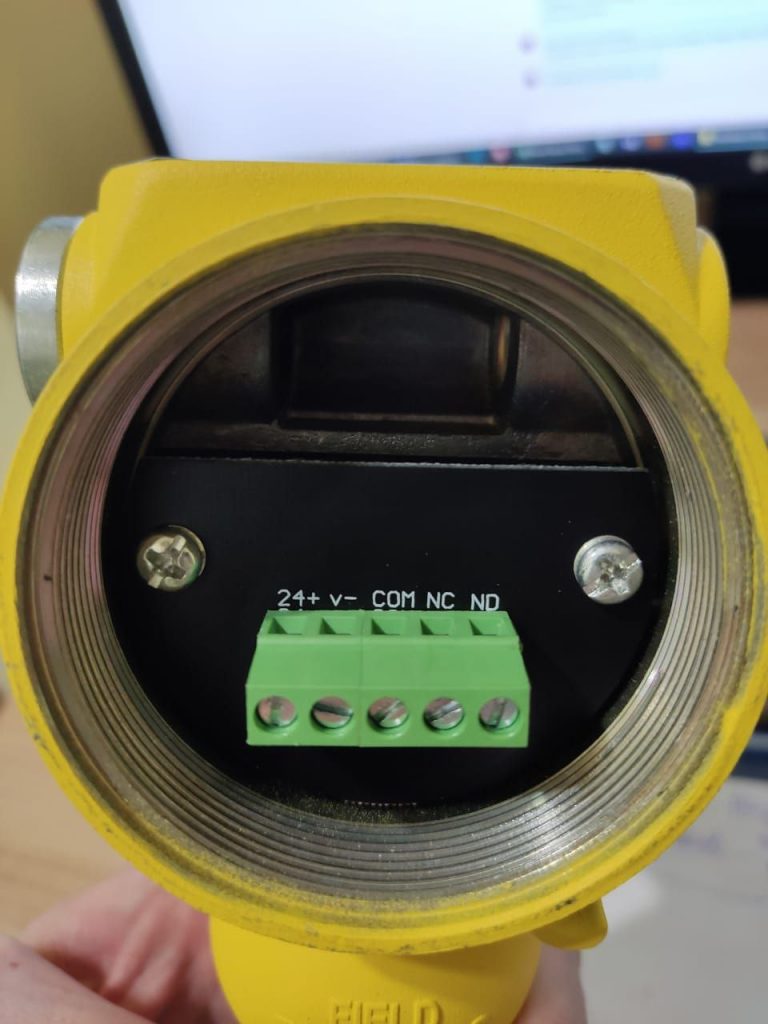

| Output | NO or NC relay (1A/125VAC 2A/30VDC), or NPN, PNP |
| Power Supply | DC 24 V as standard, AC 220 V optional |
| Ex Grade | ExdIIBT4 or ExdIICT6 |
| Protect Grade | IP65, IP67 |
| Electronic Connection | M20x1.5 |
| Max Pressure | 100 bar |
| Media Temperature | -40C ~ 80C |
| Flow Speed | 0.1m/s ~ 30m/s (Gas, Air); 0.01m/s ~ 10m/s (Liquid) |
TR CU 012/2011 certificate specifies ambient temperature range -20°C ~ 80°C
| Model | MFSGE | 325 | |||||
| Indicators | Digital LED |
||||||
| Probe length (15-100 mm) | 15mm 100mm other |
||||||
| Probe Material | SUS304 SUS316 PTFE |
||||||
| Process connection (thread) | 1/2 3/4 1 other |
||||||
| Protect Grade | IP65 IP67 |
Example: MFSGE-325-Digital-15mm-SUS304-1/2-IP65
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MFSGE-325 using the special form.
You can buy MIRKIP MFSGE-325 in UAE at a price starting from 1455 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MIRKIP MFSGE-325 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
