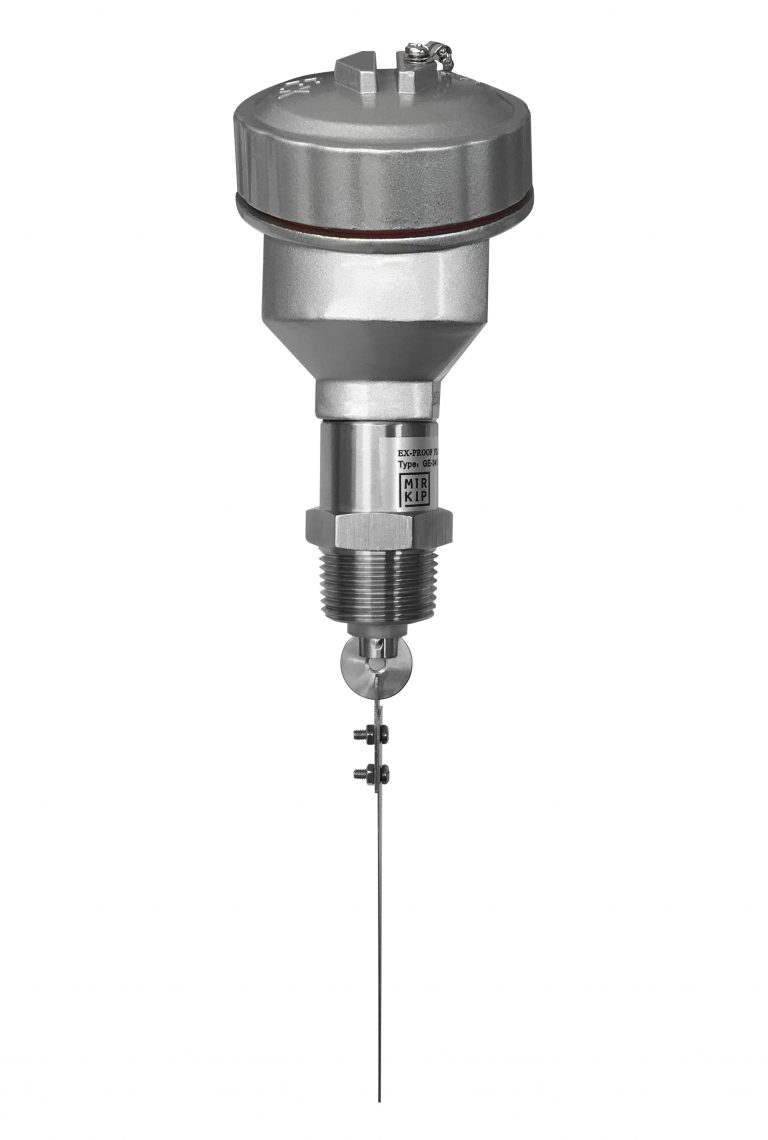

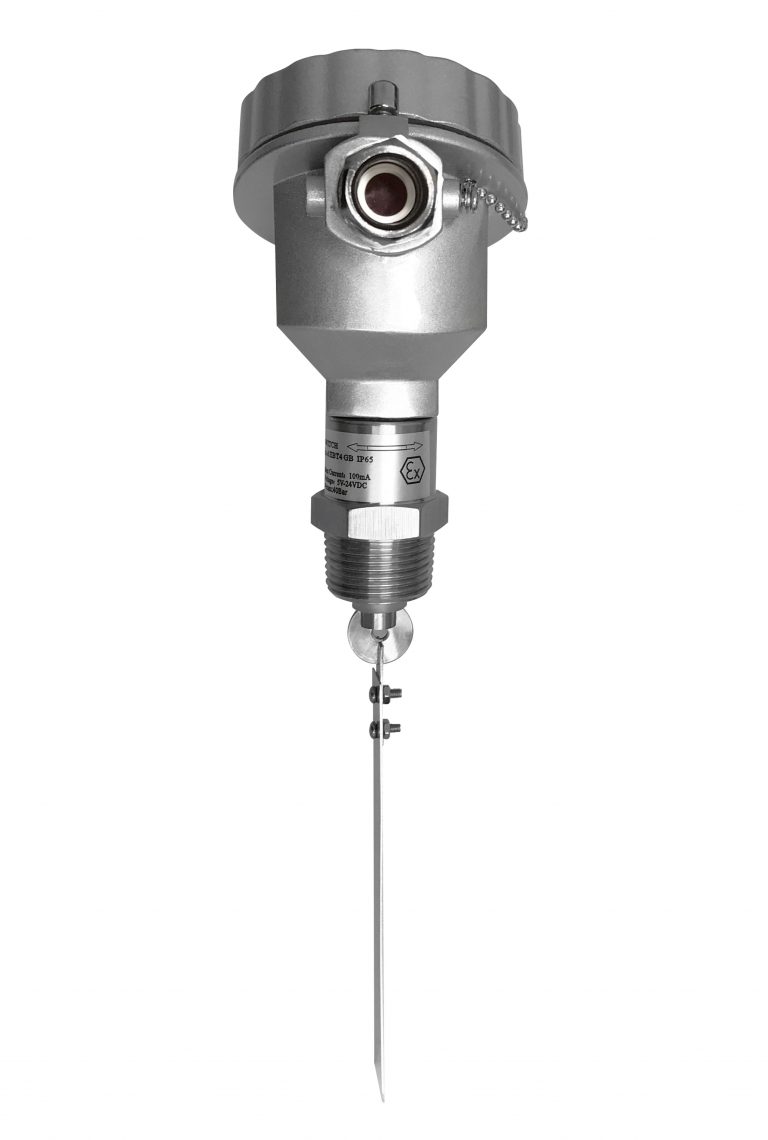

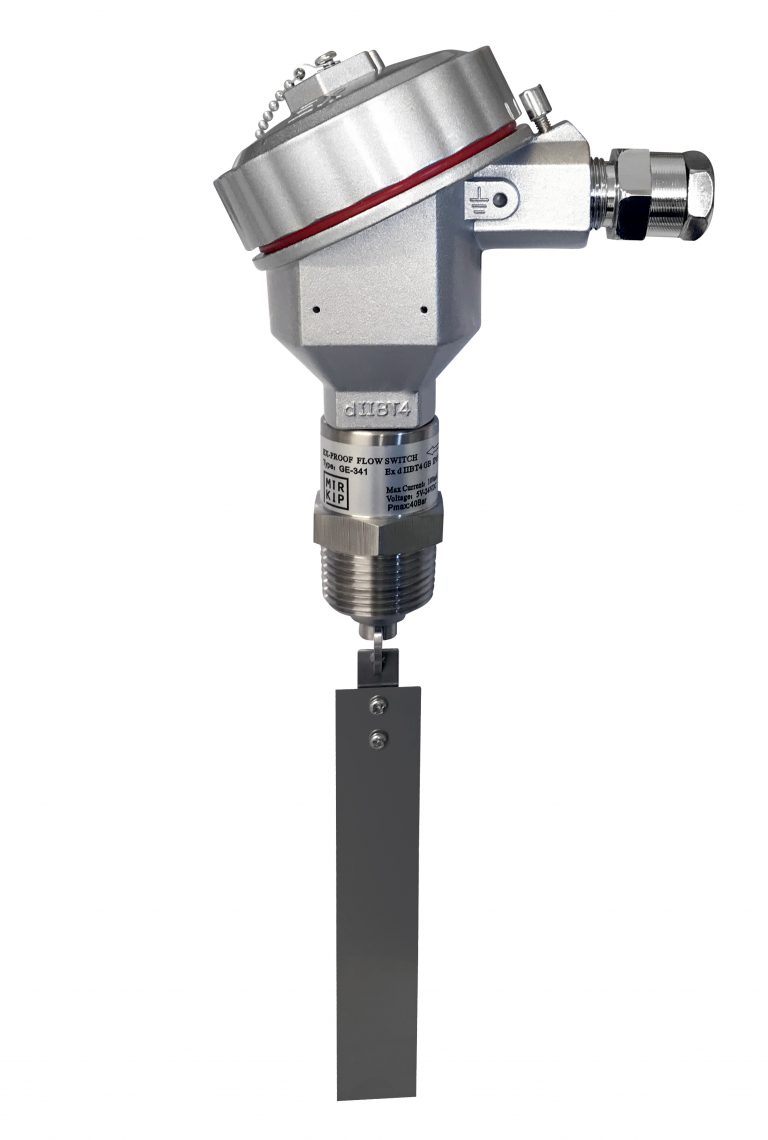

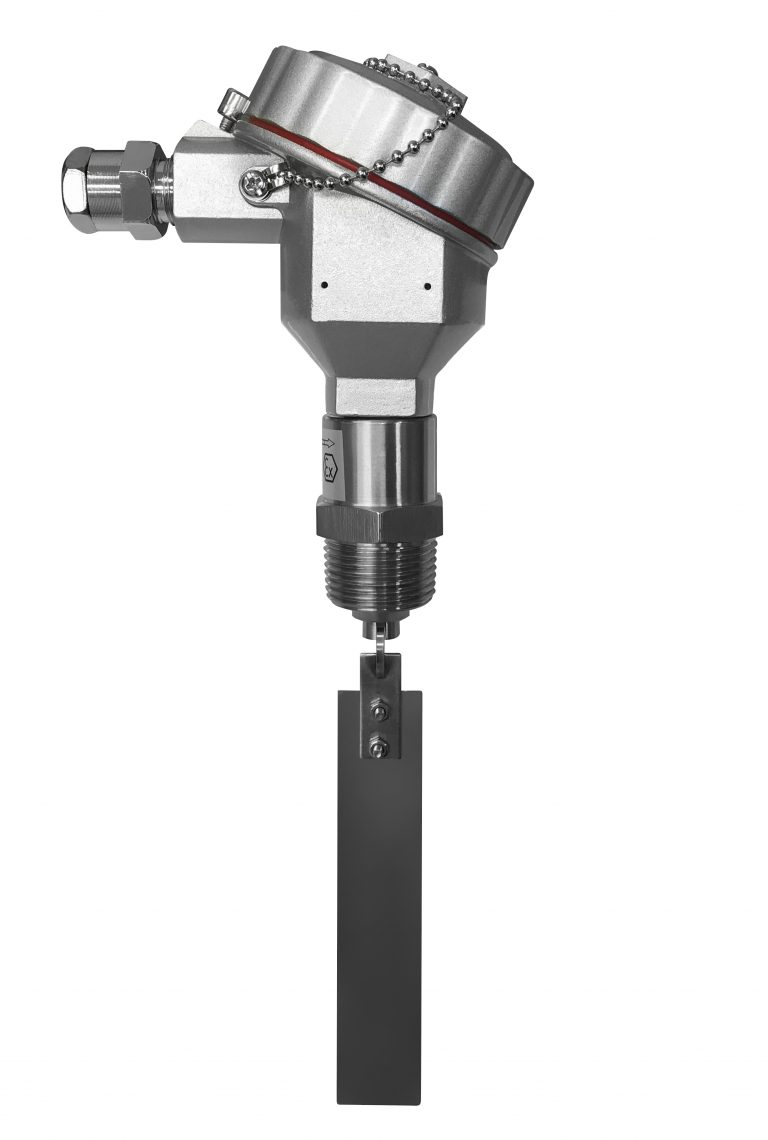

GE-341 flow switch use new structure, could monitor the flow by Two-way. It is operate by micro magnetic reed switch, it is normal Open, when flowing water push the paddle, the transfer structure change the switch condition, it close. It could be Anti Explosion-proof, ExdbIICT6 or ExdIIBT4. ATEX SIL2 SIL3 certificate for the flow switch, UL certificate for micro switch.
Made in Russia. brand MIRKIP, model MFSGE-341
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 343
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The flow switch is actuated by the force of the liquid moving the paddle, thereby detecting the presence of flow in the pipe. In the absence of liquid or when the liquid is stationary, a spring returns the paddle to the no-flow position. The reed switch contact is normally open.
When flow occurs and the paddle is deflected by an angle of 20 to 30 degrees (or more), it lifts the magnet, which in turn actuates the reed switch, closing the circuit. The length of the paddle can be adjusted to match the pipe diameter. The 1″ size can be used only with metal pipes.
Installation is simple.
Cut the paddle to the required size for the pipe. DO NOT use with metal pipes under 1″ diameter.DO NOT use with 1″ plastic pipes (1 1⁄4″ — minimum allowable diameter for plastic pipes). Before installing the device into the tee, apply thread seal tape to the threads and tighten securely. The FLOW marking on the screw’s hex must be parallel to the pipe and ground.
Regardless of water flow direction (left-to-right or right-to-left): with flow present, the switch signals and contacts close; with no flow, contacts remain open.
| Operation Temp | -30°C ~ 150°C |
| Max Pressure | 40 bar |
| Contact Capacity: | 70W 250VAC/DC max; SPST Normal Open |
| Work Voltage | 12V, 24V |
| Work Media | Water and oil |
| Pressure Loss | Less than 0.01 bar |
| Installation | 1″; Insert, 1/2″ 3/4″ could be customized |
| Pipe Size | DN20 ~ DN400 |
| Housing Material | Aluminum alloy, NEMA 4 (IP65) |
| Paddle Material | SUS304 (Similar to 304 SS) |
| Set Point Tolerance | ± 25% |
| Repeatability Tolerance: | ± 5% |
| Maximum viscosity: | 200 SSU or 43 centistokes |
| Protect Grade | IP65 |
| Explosion-Proof Grade | ExdIICT6 or BT4 BT6 (ATEX Certificate) |
TR CU 012/2011 certificate specifies ambient temperature range -20°C ~ 80°C
Standard Actuation and De-Actuation Setpoints
| Pipe Line Size | ||||||||||||
| 1″ | 1 ¹⁄₄” | 1 ¹⁄₂” | 2″ | 2 ¹⁄₂” | 3″ | |||||||
| Approximate Actuation and De-Actuation Flow Rates–GPM Water | ||||||||||||
| Paddle Length | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. | Act. | De-Act. |
| 1″ | 5 | 4 | 8.5 | 6.5 | 12 | 9 | 17 | 15 | ||||
| 1 ¹⁄₄” | 6.5 | 4.5 | 9 | 7 | 15 | 12 | 23 | 20 | ||||
| 1 ¹⁄₂” | 14 | 10 | 23 | 16 | 32 | 25 | ||||||
| 2″ | 18 | 12 | 24 | 17 | 33 | 27 | ||||||
| 2 ¹⁄₂” | 20 | 13 | 27 | 22 | ||||||||
| 3″ | 22 | 16 | ||||||||||
| Model | MFSGE | 341 | ||
| Pipe Size (DN20-DN400) | DN20 DN400 Other |
|||
| Process connection (thread) | 1 1/2 3/4 Other |
Example: MFSGE-341-DN20-1/2
