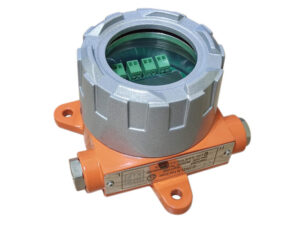

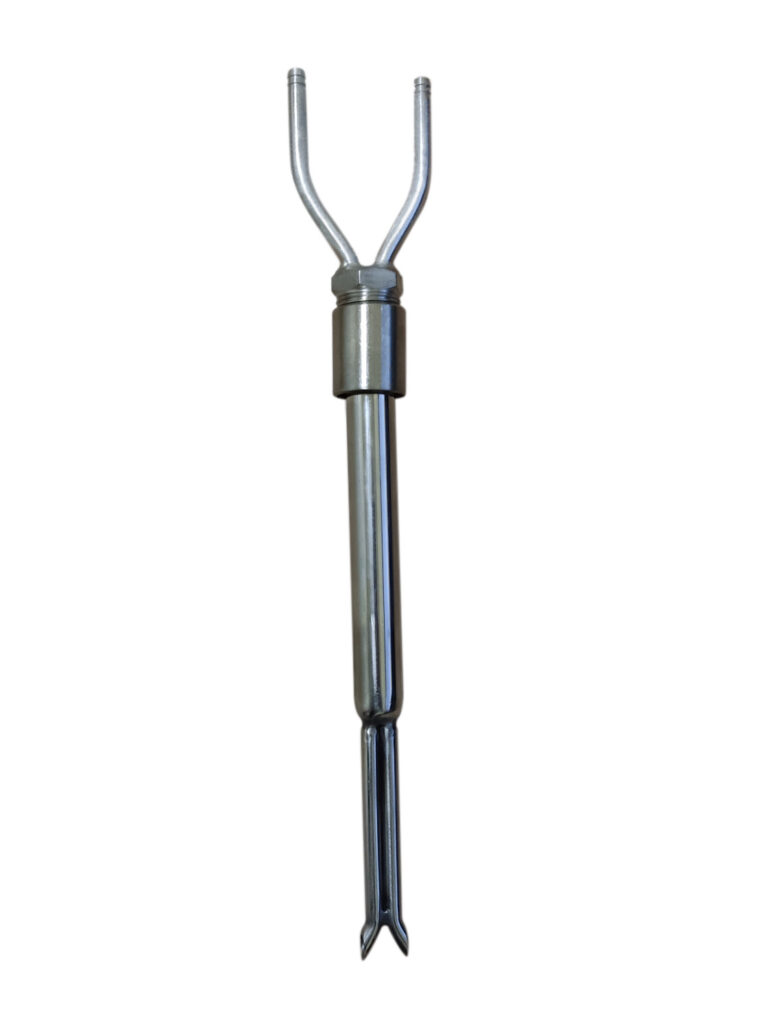

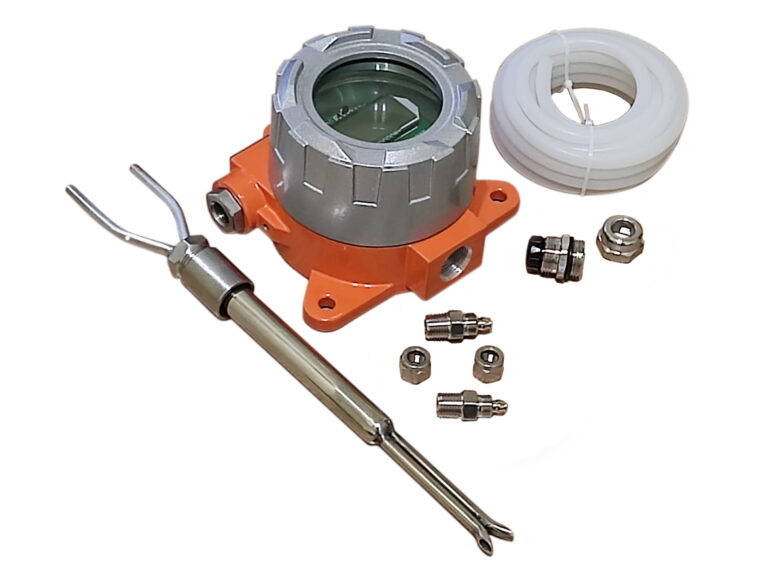

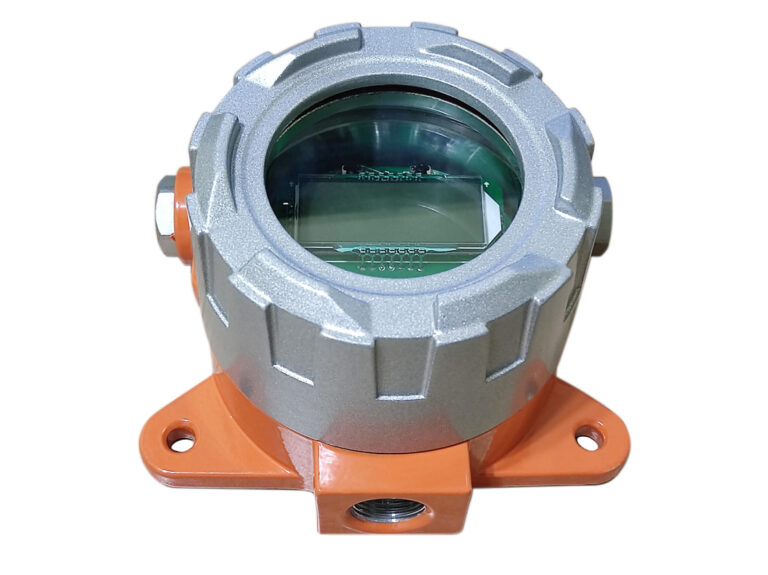

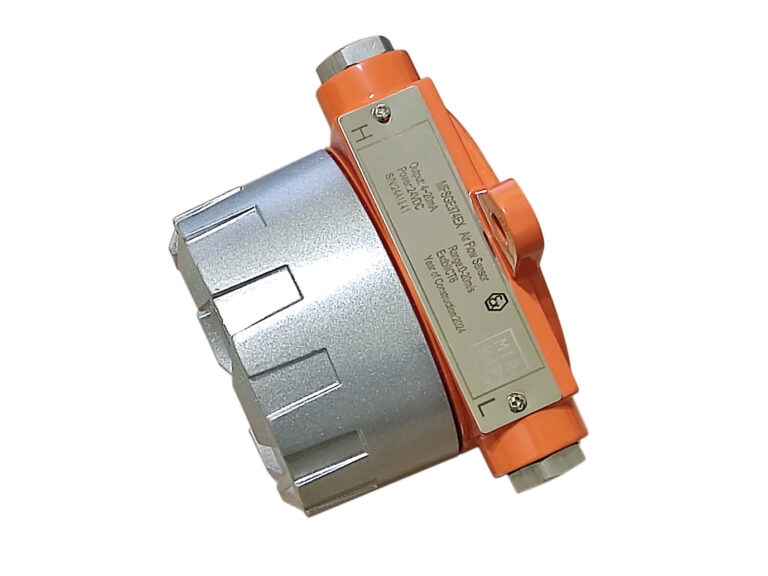

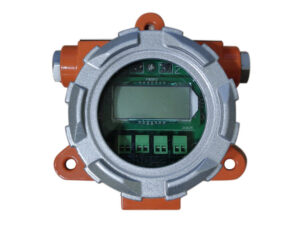

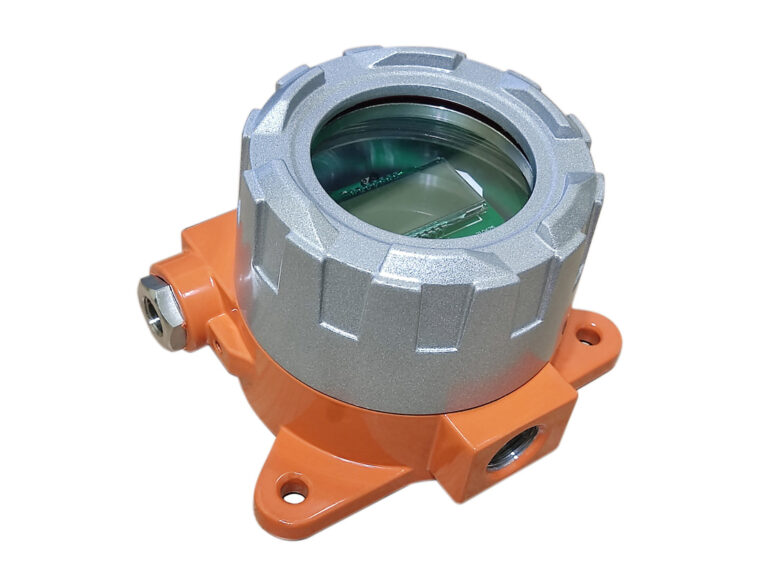

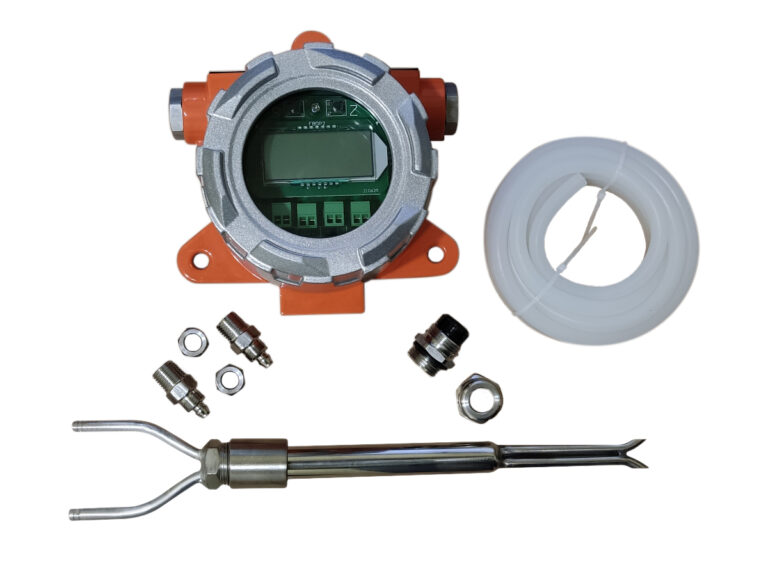

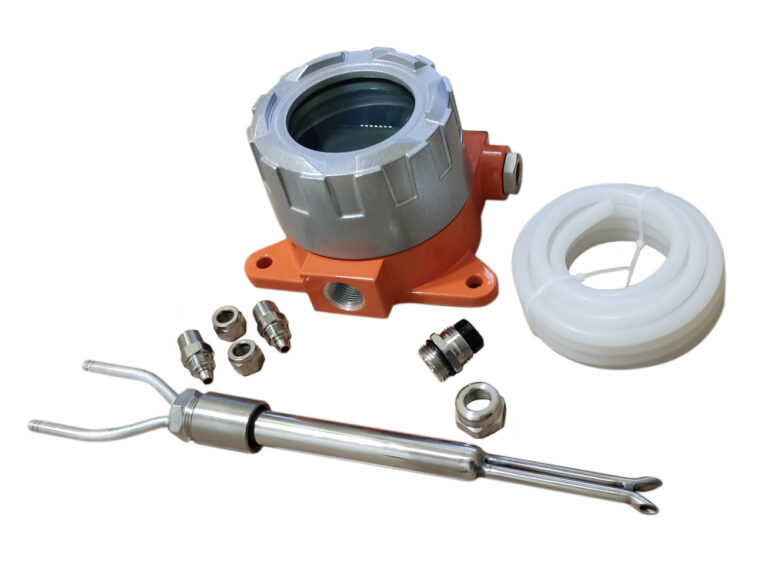

Duct Air Flow Speed Transmitter could measure air flow velocity by Pitot tube with differential pressure sensor, split-type or an integrated both available
Made in Russia. brand MIRKIP, model MFSGE374EX
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 786
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Unlike conventional anemometers with temperature sensors or hot film, GE-374-Ex air Velocity sensors operate on the innovative pitot tube principal, which guarantees accuracy at low air velocity, and better performance at high temperature. Additionally, this pitot sensor is less sensitive to dust and dirt than all other anemometer principles.
Option function:
GE-374-EX-SC: Explosion Proof Air Flow Switch, will have 2 relay switch signal, high and low limit alarm.
The objection of the declaration is in conformity with the relevant EU harmonization legislation: ATEX directive 2014/34/EU, Machinery directive 2006/42/EC. The ATEX grade is Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃) IP65; or Ex II 3GD Ex dc IIC T6 Gc (-20℃≤Ta≤+80℃) and Ex tc IIIC T85℃ Dc (-20℃≤Ta≤+80℃) IP65 for gas and dust explosion prevention
| Velocity Flow Range | 0~5m/s~15m/s~20m/s~25m/s~30m/s~40m/s~70m/s……..200m/s max |
| Accuracy | <(0.2m/s+3% measuring value) @1~20m/s, 25 C, 55%RH 1013hPa |
| Response Time | 2 s |
| Temperature Compensation | 10°C~70°C |
| Ambient temperature | -20°С to +80°С |
| Output | 0-5V, 4-20mA, 0-10V, 0-20mA, RS-485, Modbus, relay |
| Power | 18~30VAC/DC, 24VDC is standard |
| Housing | Ex-proof Aluminum |
| Protection | IP65, NEMA4 |
| Explosion-Proof Grade | 2Ex db IIC T6 Gc, Ex tc IIIC T85°C Dc, -20°C to +80°C |
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MFSGE374EX using the special form.
