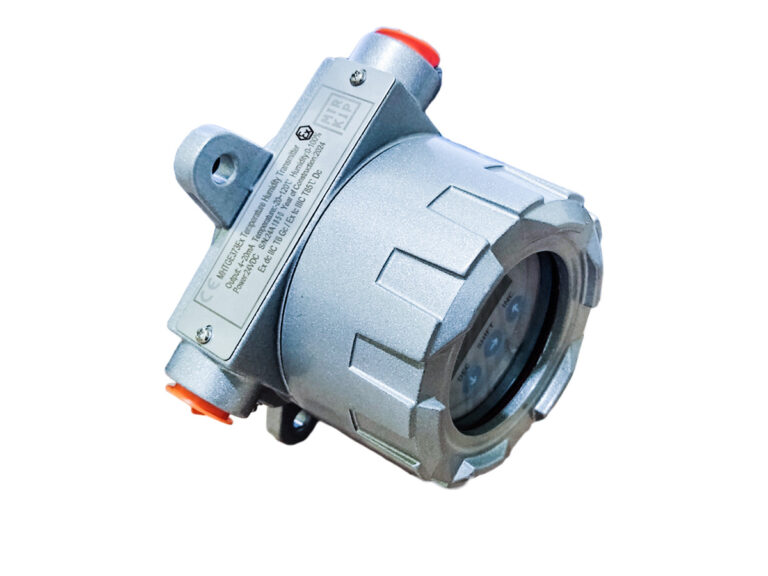

The MHTGE373Ex explosion-proof hygrometer can be used to monitor indoor temperature and humidity in various industrial plants, clean rooms, laboratories, machine rooms, offices, airports, train stations, libraries, stadiums, etc.
Made in Russia. brand MIRKIP, model MHTGE373Ex
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 791
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
GE-373-Ex Explosion Proof Temperature Humidity Sensor adopts a stabilized Ex-proof shell to isolate the flammable point from external gas and dust, achieve the Ex grade to Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃). It has domestic and international ATEX explosion-proof certificates. There are a variety of range options, and the signal output can be 4-20mA or RS-485. At the same time, it meets the requirements of gas explosion-proof and dust explosion-proof. These transmitters can be used for indoor air temperature and humidity monitoring in various industrial plant, clean room, lab, machine room, office and airport, station, library and stadium, etc.
Features：
Type：

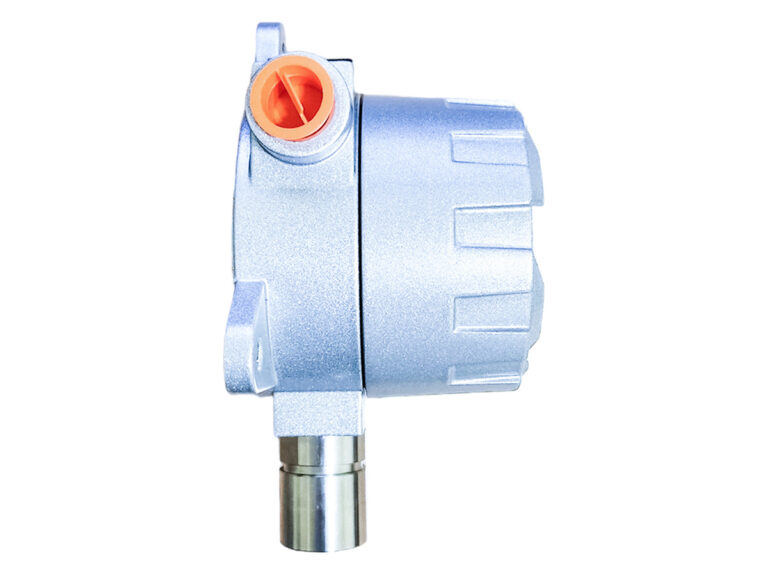

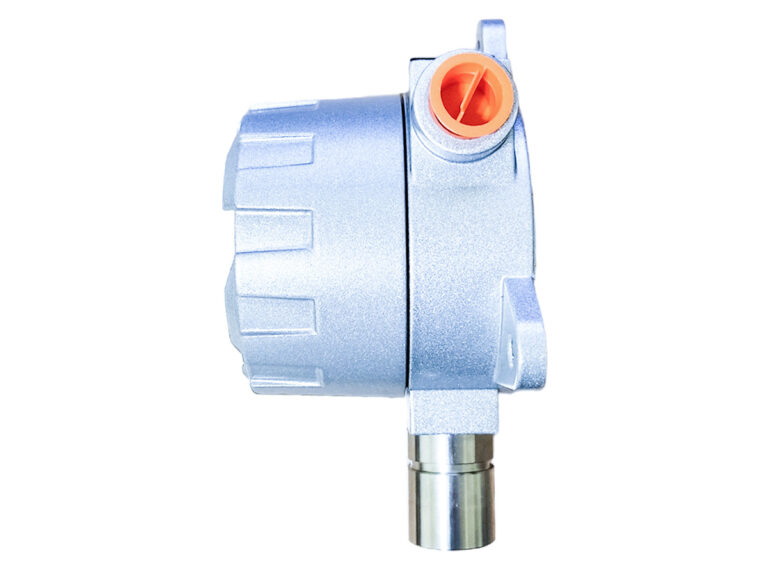

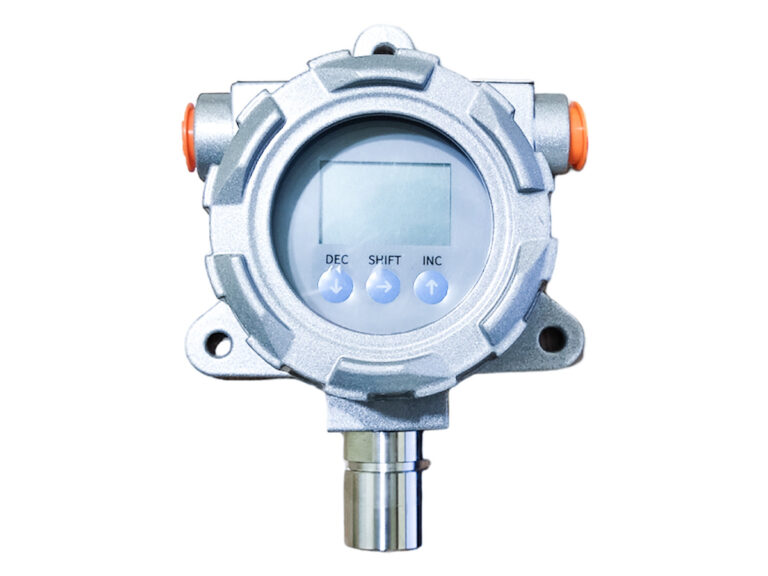

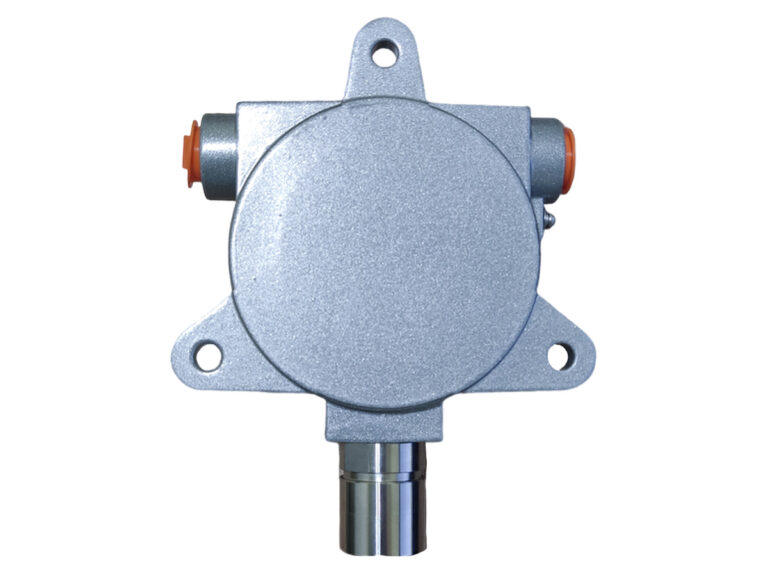

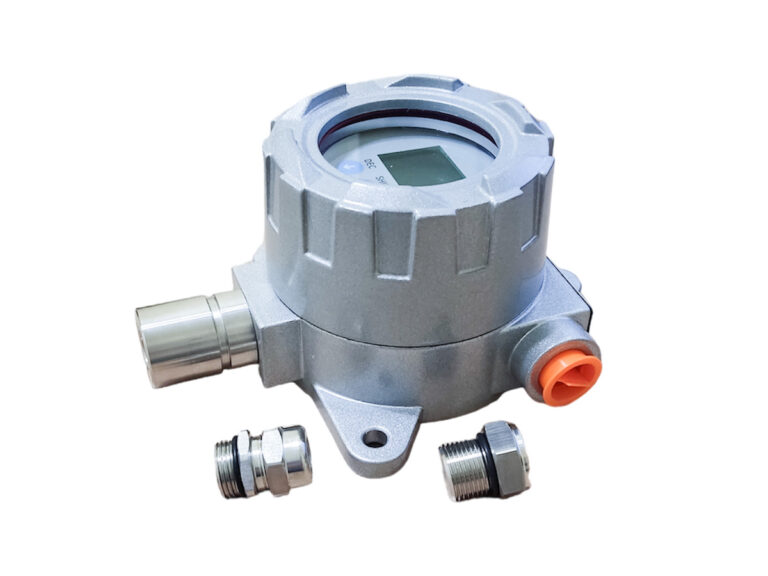

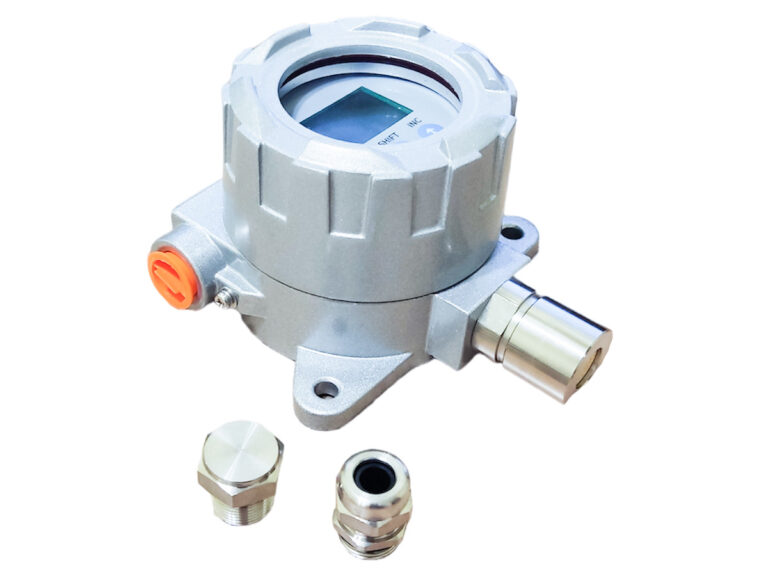

GE-373-EX wall mount type for room or outside area

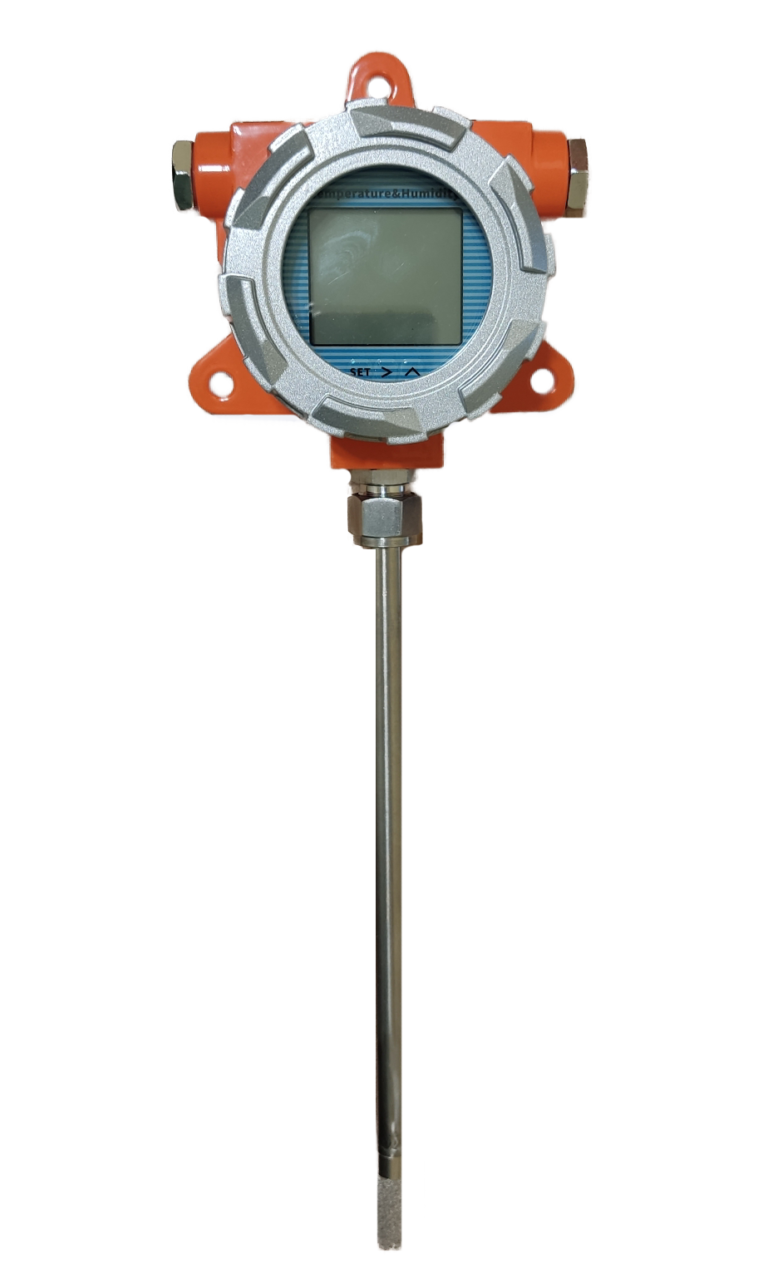

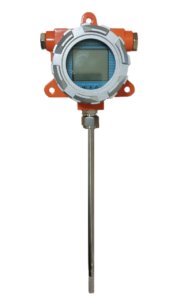

GE-373-EX insert type for duct or pipe air flow
The objection of the declaration is in conformity with the relevant EU harmonization legislation: ATEX directive 2014/34/EU, Machinery directive 2006/42/EC. The ATEX grade is Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃) IP65; or Ex II 3GD Ex dc IIC T6 Gc (-20℃≤Ta≤+80℃) and Ex tc IIIC T85℃ Dc (-20℃≤Ta≤+80℃) IP65 for gas and dust explosion prevention。
| Relative Humidity: | |
| Sensor: | Capacitance polymer |
| Range: | 0~100%RH |
| Output: | 4~20mA / 0~10VDC / RS485 |
| Accuracy: | 2%, 3% and 4.5%RH(25°C, 20~80%RH) |
| Hysteresis: | ﹤±1%RH |
| Response time: | ﹤10s ( 25 C, in slowly flow air) |
| Drift: | ﹤±0.5%RH/year |
| Temperature: | |
| Sensor: | Solid state band gap, RTD or thermistors |
| Range: | 0~50°C 0~100°C or -40~120°C or other |
| Output: | 4~20mA/0~10V/RS485, RTD or thermistors |
| Accuracy: | ﹤±0.2 C @ 25 C |
| Electronic: | |
| Power: | Voltage 15~35 VAC/DC, current 7.5-36 VDC |
| Output Load: | <500Ω (current), >2KΩ (voltage) |
| Display: | Large LCD screen digital display, optional |
| Display Accuracy: | 0.1°C, 0.1%RH |
| Display Resolution: | 0.1°C, 0.1%RH |
| Note on TR CU 012/2011 Certificate | |
| EX marking according to GOST 31610.0-2019 | 1Ex db IIC T6 Gb, Ex tb IIIC T85°C Db |
| Ambient temperature range | from minus 20°C to plus 80°C |
| Supply voltage, V | 24 DC |
| Degree of protection according to GOST 14254-2015 | IP65 |
| Model | MHTGE | 373EX | |||||
| Design type | W D |
||||||
| Output signal | 4-20mA 0-10V RS485 |
||||||
| Temperature measurement range | -20-80°C -40-120°C |
||||||
| Relative humidity measurement range | 10-98% | ||||||
| Display | LCD |
Example: MHTGЕ373EX/W/4-20mA/-20-80°C/10-98%-LCD
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MHTGE373Ex using the special form.
You can buy MIRKIP MHTGE373Ex in UAE at a price starting from 1791 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MIRKIP MHTGE373Ex price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
