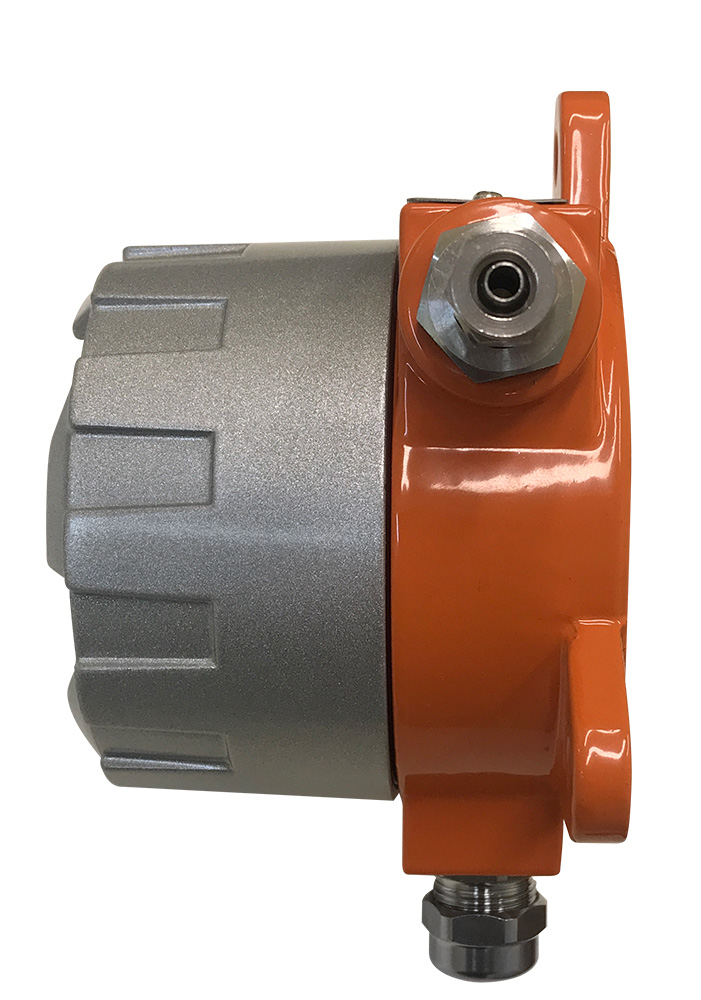

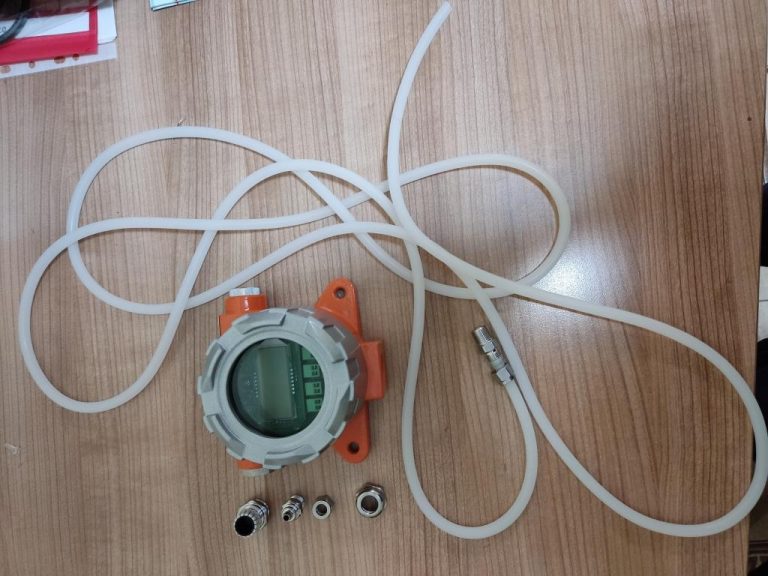

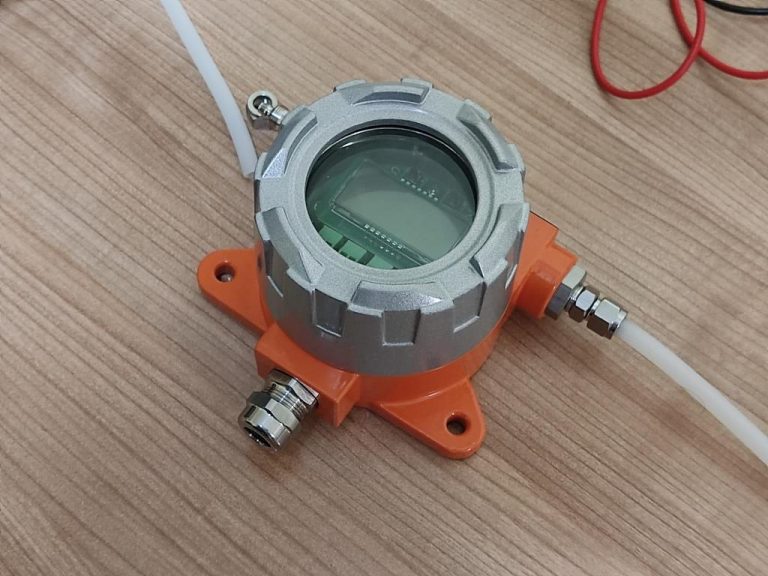

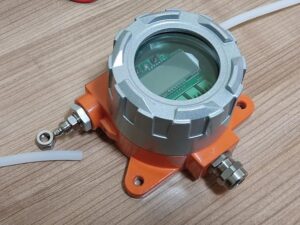

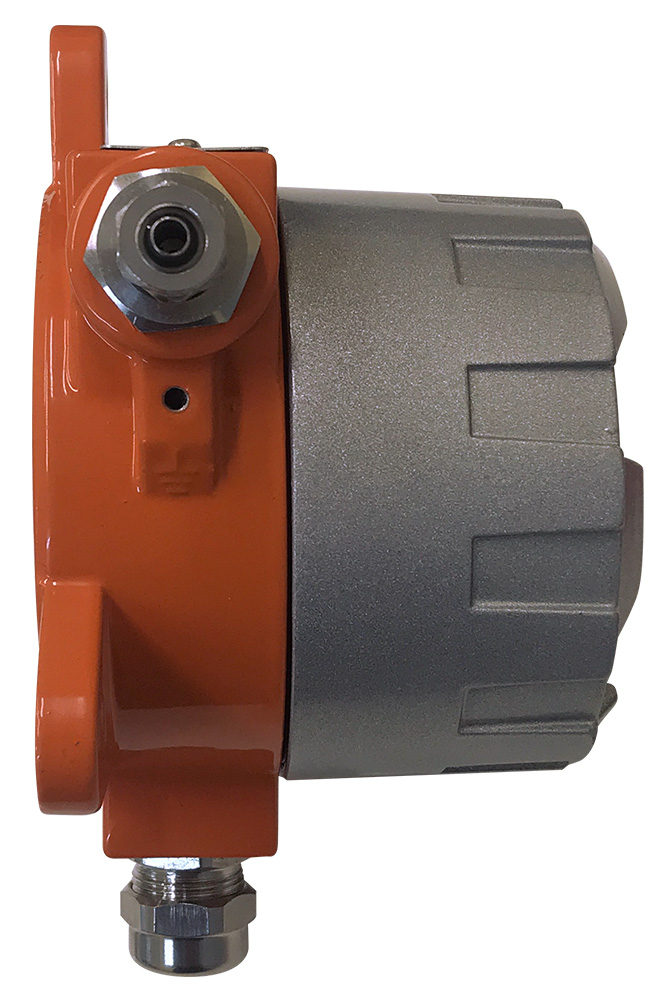

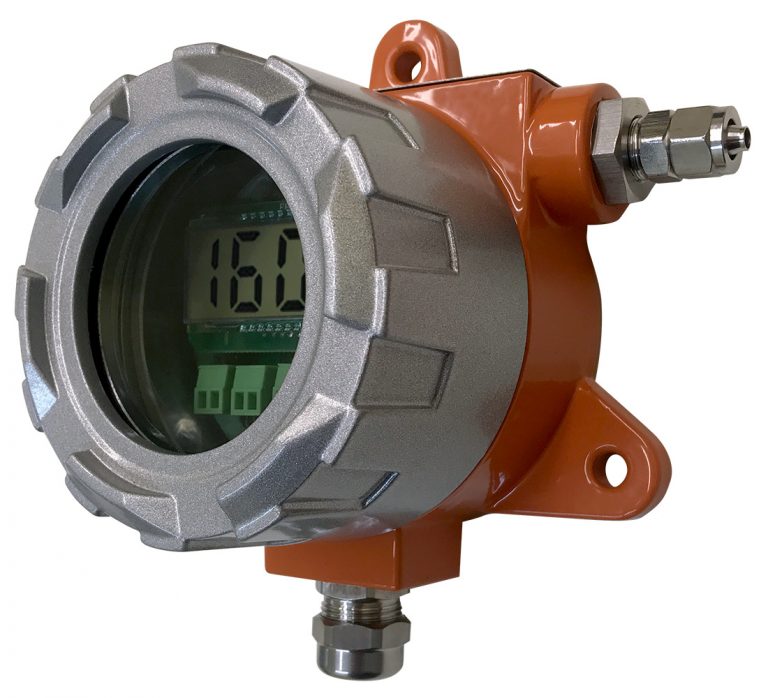

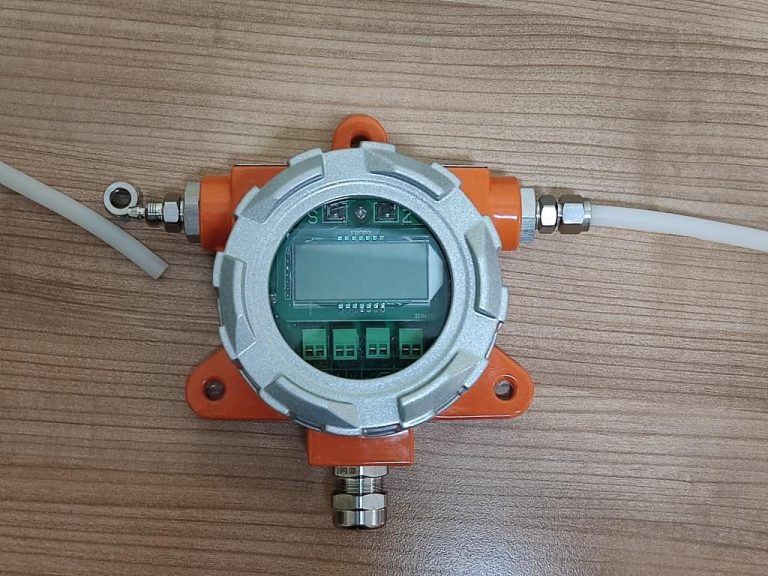

GE-923-Ex Air Differential Pressure transmitter is produced with magnetic sensing technology, pressure ranges from 0~±25Pa at up to 10KPa. Available with Unidirectional and bidirectional pressure ranges, and air velocity, with LCD display screen, 4-20mA output or RS-485 signal.
Made in Russia. brand MIRKIP, model MPSGE923EX
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 279
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

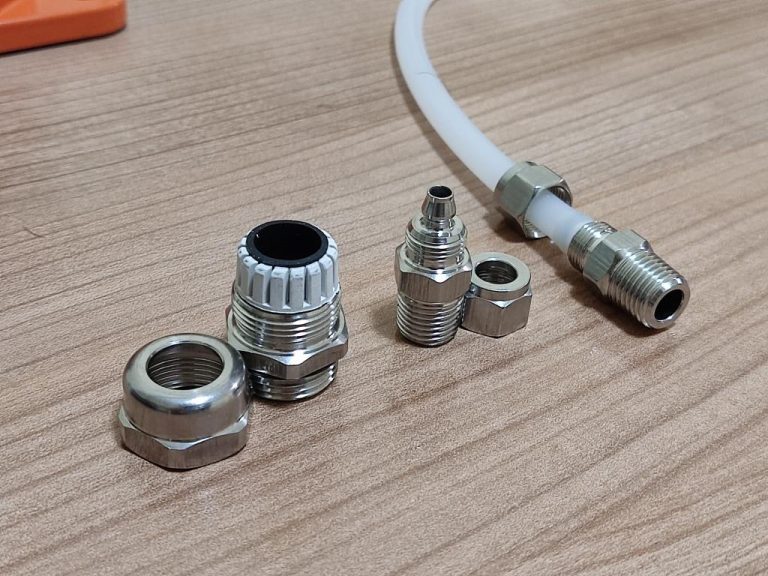

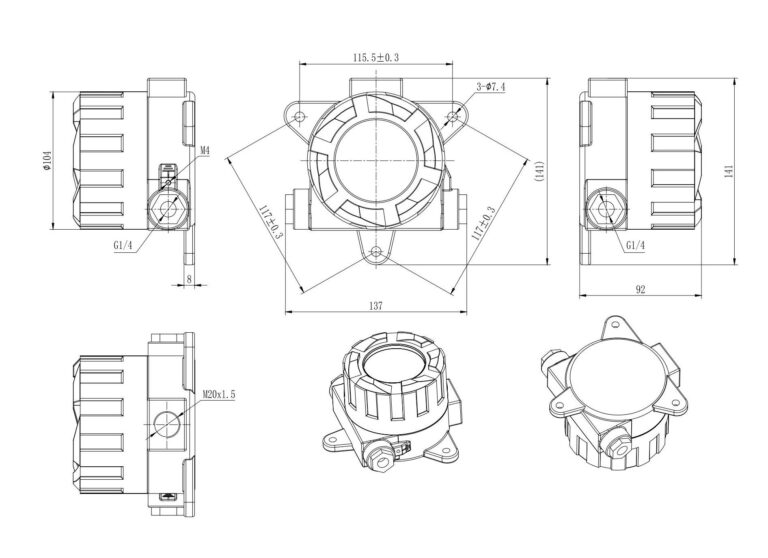

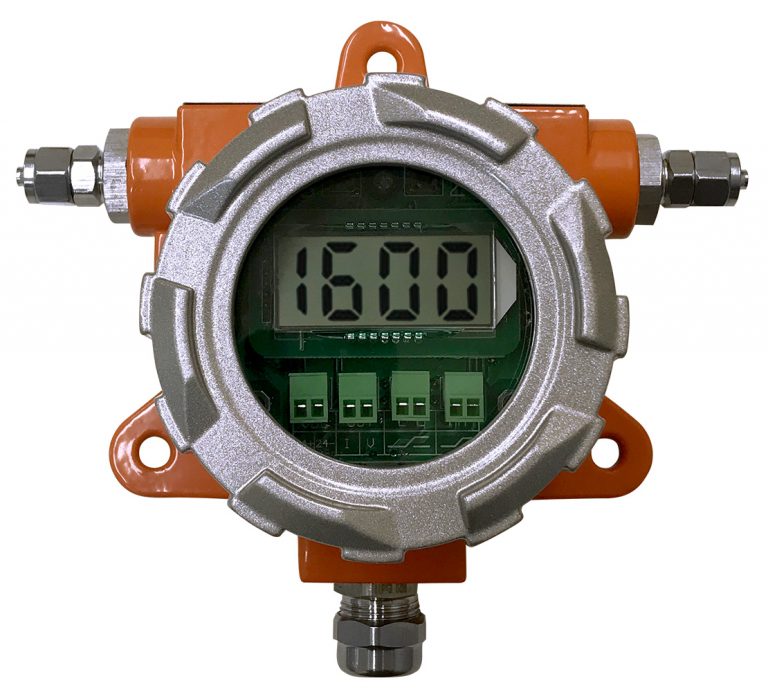

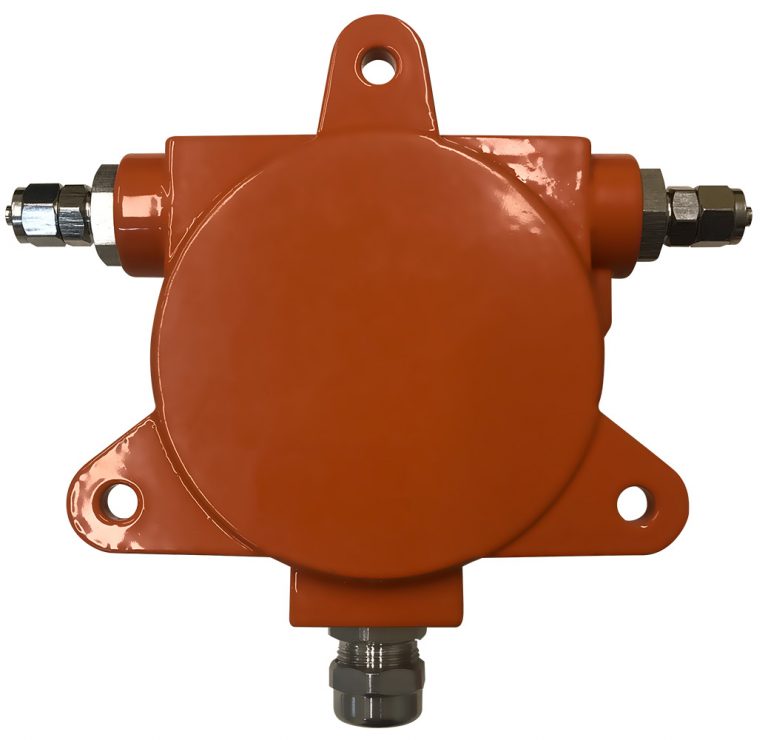

The MPSGE923-Ex air pressure differential transmitter is manufactured using magnetic sensor technology, with a pressure range from 0~±25 Pa to 10 kPa. It is available with unidirectional and bidirectional pressure and air velocity ranges, with an LCD display, and with analog outputs of 4–20 mA, 0–5 V, or 0–10 V. Optional: relay output, RS-485 signal. Cable entry M20x1.5.
Applications:
Option:
Type number: GE-923-EX-SC
Function: Explosion Proof Differential Pressure Switch (High and Low limit relay)
Features:
The objection of the declaration is in conformity with the relevant EU harmonization legislation: ATEX directive 2014/34/EU, Machinery directive 2006/42/EC. Ex db IIC T6 Gb (-20℃≤Ta+80℃), Ex tb IIIC T85℃ Db (-20℃≤Ta+80℃) IP65; or Ex dc IIC T6 Gc (-20℃≤Ta≤+80℃) Ex tc IIIC T85℃ Dc (-20℃≤Ta≤+80℃) IP65
Satisfy to the requirement of the ATEX Directive 2014/34/EU from 15th,AUG, 2020, by compliance with harmonized standards: EN IEC 60079-0:2018 EN 60079-1: 2014 EN 60079-31: 2014
| Media: | Air and Non-corrosive gas |
| Pressure Range: | 0-25pa-100Pa-1000Pa-2KPa-3KPa-5KPa-10KPa, other range could be customized |
| Max Pressure: | 5 x Max Range |
| Power Supply: | 24 VDC |
| Output: | 4-20 mA (2 wires), 0-5 V (3 wires); 0-10 V (3 wires), relay (optional) or RS-485 (optional) |
| Protect Grade: | IP65 |
| Visual Display(optional): | 4-digit LCD |
| Working Temperature: | -20C ~ 70C |
| Model | MPSGE | 923Ex | ||||
| Measurement Range | -25-25 Pa -50-50 Pa -100-100 Pa -250-250 Pa -500-500 Pa -1-1 kPa -2-2 kPa -3-3 kPa -5-5 kPa 0-25 Pa 0-50 Pa 0-100 Pa 0-250 Pa 0-500 Pa 0-750 Pa 0-1.25 kPa 0-2.5 kPa 0-3 kPa 0-5 kPa 0-7 kPa 0-10 kPa 0-20 kPa 0-30 kPa |
|||||
| Output Signal | 4-20mA 0-10V 0-5V RS485 |
|||||
| Relay Switch Type | SPDT DPDT |
|||||
| Display | None LCD |
Example: MPSGE923Ex/0-100 Pa/4-20mA/DPDT/LCD
You can request the necessary certificates, documentation, instructions and user guide for MIRKIP MPSGE923EX using the special form.
You can buy MIRKIP MPSGE923EX in UAE at a price starting from 1279 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MIRKIP MPSGE923EX price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
