It operates over a wide temperature range using a variety of gas sensing technologies. Breakthrough XCell gas sensors with TruCal technology extends calibration cycles up to 24 months and actively monitors sensor integrity for ultimate peace of mind.

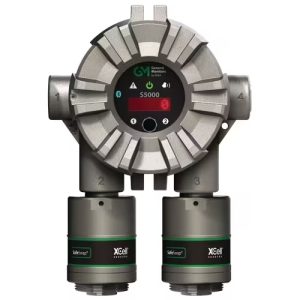

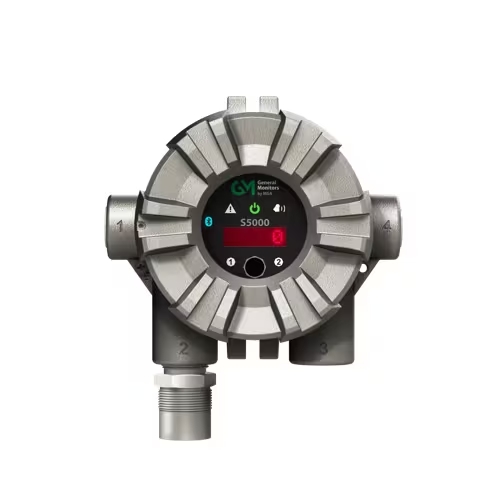

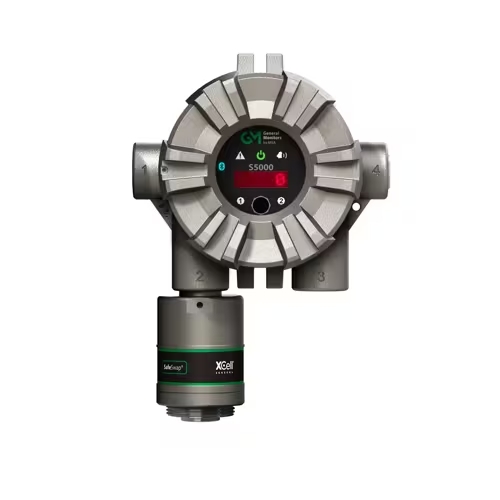

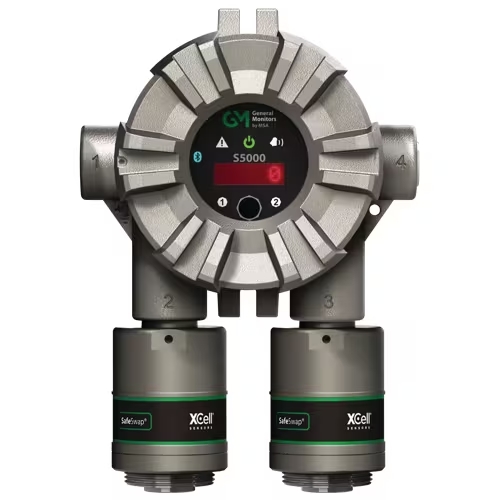

Made in USA. brand MSA Safety, model General Monitors S5000
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Patented XCell H₂S and CO Sensors with TruCal technology extend calibration cycles for as long as 2 years, actively monitor sensor integrity, and compensate for environmental factors and electrochemical sensor drift.
– Diffusion Supervision sends acoustic signal every 6 hours to check that sensor inlet isn’t obstructed so gas can reach the sensor.
– Worry-free operation—automatically self-checks four times per day.
• Three-year warranty and five-year expected life for XCell Sensors.
• SafeSwap enables safe and quick XCell Sensor replacement without powering off gas detector
Applications
| Product Specifications | |||

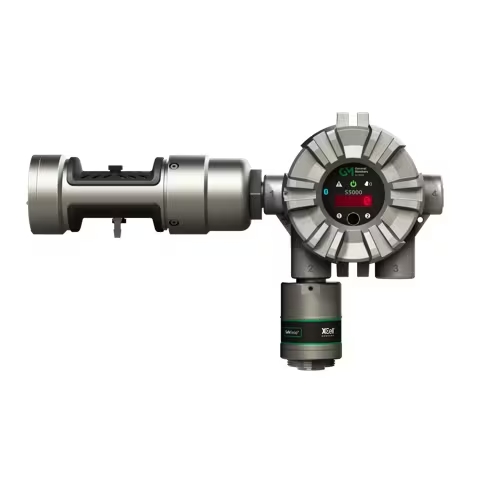

| COMBUSTIBLE GAS SENSOR TYPE | Catalytic bead (Passive comb., XCell comb.) Infrared (IR400) | ||
| TOXIC GAS & OXYGEN SENSOR TYPE | XCell Toxic Ammonia (NH3), Carbon Monoxide (CO),
Carbon Monoxide (CO) H₂-resistant, Chlorine (Cl₂), Sulfur Dioxide (SO₂) Chlorine Dioxide (ClO2) Passive MOS, Echem, XCell Toxic Hydrogen Sulfide (H₂S) XCell O₂ Oxygen (O₂) Electrochem Ammonia (NH3), Ethylene Oxide (ETO) , Hydrogen (H₂), Hydrogen Chloride (HCl), Hydrogen Cyanide (HCN), Hydrogen Fluoride (HF), Nitric Oxide (NO), Nitrogen Dioxide (NO₂) |
||
| SENSOR MEASURING RANGES | Combustible
Cl₂ |
0-100% LEL (CB, IR)
0-5, 0-10, 0-20 ppm |
|
| ClO₂ | 0-3 ppm | ||
| CO | 0-100, 0-500, 0-1000 ppm | ||
| CO, H₂-resistant | 0-100 ppm | ||
| ETO | 0-10 ppm | ||
| H₂ | 0-1000 ppm | ||
| HCl | 0-50 ppm | ||
| HCN | 0-50 ppm | ||
| HF | 0-10 ppm | ||
| H₂S | 0-10, 0-20, 0-50, 0-100, 0-500 ppm | ||
| NH3 | 0-100 ppm, 0-1000 ppm | ||
| NO | 0–100 ppm | ||
| NO₂ | 0-10 ppm | ||
| O₂ | 0-25% | ||
| SO₂ | 0-25, 0–100 ppm | ||
| CLASSIFICATIONS
DIVISIONS (US/CAN)
US ZONES
CANADIAN ZONES/ ATEX/ IECEx |
See manual for complete CSA listings.
Class I, Div/Zone 1&2, Groups A, B, C & D T5/T4; Class II, Div/Zone 1&2, Groups E, F & G, T6; Class III Type 4X, IP66 Class I, Zone 1 AEx db IIC T5 Gb Class I, Zone 2 AEx nA nC IIC T4 Gc Zone 21 AEx tb IIIC T85°C Db Ex db IIC T5 Gb Ex nA nC IIC T4 Gc Ex tb IIIC T85°C Db |
||
| WARRANTY | S5000 transmitter | 2 years | |
| XCell Sensors | 3 years | ||
| Passive comb., MOS, IR400 | 2 years | ||
| Echem Sensors | Varies by gas | ||
| APPROVALS | CSA, FM**, ATEX, IECEx,INMETRO, ABS, DNV-GL Marine, CE Marking. Complies with C22.2 No. 152, FM 6320, ANSI/ISA/CSA/IEC/EN 60079-29-1, ANSI/ISA 12.13.01.
Suitable for SIL 2. |
||
| Dimensions | |||
| HOUSING (W x H x D)
W/PASSIVE SENSOR W/DIGITAL SENSOR W/IR400 IR SENSOR |
6.37” x 5.38” x 4.25” (162 x 137 x 108 mm)
6.37” x 7.62”x 4.25” (162 x 193 x 108 mm) 6.37” x 10.4” x 4.25”(162 x 265 x 108 mm) 14.8” x 6.0” x 4.25” (375 x 152 x 108 mm) |
||
| WEIGHT | 8 lb. (3.6 kg), 316 SS | ||
| Environmental Specifications | |||
| OPERATING
TEMPERATURE RANGE |
Transmitter
CB (sintered, Zones) CB (screened, Div) MOS (sintered, Zones) MOS (screened, Div) IR (CSA) IR (ATEX/IECEx) XCell (Comb) XCell (Toxic/O₂) |
-55°C to +75°C
-40°C to +70°C -40°C to +75°C Ф-40°C to +70°C -40°C to +75°C -40°C to +75°C -60°C to +75°C -55°C to +60°C -40°C to +60°C |
|
| STORAGE
TEMPERATURE RANGE |
Housing, IR400, passive sensors XCell sensors | -50°C to +85°C -40°C to +60°C | |
| RELATIVE HUMIDITY (NON-CONDENSING) | XCell sensors, IR400,
Passive combustible Passive H₂S |
10-95%
0-95% 15-95% |
|
| Mechanical Specifications | |||
| INPUT POWER | 24 VDC nominal, 12 to 30 VDC | ||
| SIGNAL OUTPUT | Dual 4-20 mA current source or sink, HART, Modbus,
Bluetooth. Optional: w/o Bluetooth |
||
| RELAY RATINGS | 5A @ 30VDC; 5A @220 VAC (3X) SPDT – fault, warn, alarm | ||
| RELAY MODES | Common, discrete, horn | ||
| NORMAL MAX POWER |
|
Without Relays | With Relays |
| Passive comb. | 5.0 W | 6.0 W | |
| Passive MOS | 9.8 W | 10.8 W | |
| IR400 | 7.9 W | 8.9 W | |
| XCell comb. | 5.0 W | 6.0 W | |
| XCell toxic & O₂ | 2.6 W | 3.6 W | |
| IR400 + XCell comb. | 10.8 W | 11.8 W | |
| IR400 + XCell toxic or O₂ | 8.6 W | 9.6 W | |
| Dual XCell toxic or O₂ | 3.3 W | 4.3 W | |
| Dual XCell comb. | 7.4 W | 8.4 W | |
| XCell comb. + XCell toxic or O₂ | 5.7 W | 6.7 W | |
| STATUS INDICATORS | 4-digit scrolling LED, icons depicting fault, warn, alarm, Bluetooth, 1 and 2 to indicate sensor reading displayed | ||
| RS-485 OUTPUT | Modbus RTU, suitable for linking up to 128 units or up to 247 units with repeaters | ||
| BAUD RATE | 2400, 4800, 9600, 19200, 38400, 115200 | ||
| HART | HART 7, Device Description (DD) and Device Type Manager (DTM) available | ||
| FAULTS MONITORED | Low supply voltage, RAM checksum error, flash checksum error, EEPROM error, internal circuit error, relay, invalid sensor configuration, sensor faults, calibration faults, analog output mismatch fault | ||
| CABLE REQUIREMENTS | 3-wire shielded cable for single sensor and 4-wire shielded cable for dual sensor configurations. Accommodates up to 12 AWG or 4 mm2
Refer to manual for mounting distances. |
||
