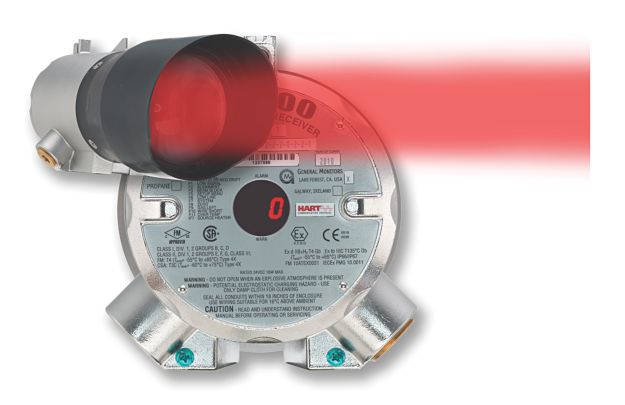

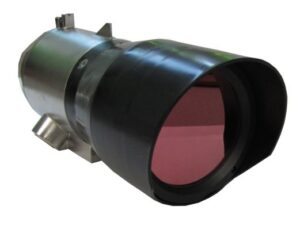

Made in USA. brand MSA Safety, model IR5500
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| System Specifications | |
| Sensor type | Infrared Absorption |
| DUAL RANGES
METHANE PROPANE |
0 to 5000 ppm• meter
0 to 5 LEL• meter 0 to 2000 ppm• meter 0 to 1 LEL• meter Consult factory for other hydrocarbon gases available |
| PATH LENGtHS | 5-30 m, 20-100 m, 80-150 m |
| RESPONSE TIME | T90 ≤ 3 s |
| REPEATABILITY | ≤ ±5% |
| LINEARITY | ≤ ±5% of full scale for each scale
or ±10% of applied gas, whichever is greater |
| CLASSIFICATION
HAZ LOC PERFORMANCE VERIFIED |
CSA/FM:
Class I, Div 1 & 2, Groups B, C, & D; Class II, Div 1 & 2, Groups E, F, & G Class III; Type 4X T3C (Tamb=-60°C to +75°C) T4 (Tamb=-50°C to +65°C) ATEX/IECEx: II 2 G D, Ex d IIB+H2 T4 Gb Ex tb IIIC T135°C Db, IP66/67 (Tamb=-55°C to +65°C) |
| CALIBRATION | No calibration required. Field background zero adjustment provided |
| MODES | Setup, alignment, test mode |
| ACCESSORIES | Test gas films, mounting arm, mounting base, scope, attenuation plate |
| WARRANTY | Two years |
| APPROVALS | CSA, FM, ATEX, IECEx, DNV-GL, INMETRO, EAC, CE. SIL 3 suitable. HART registered. |
| Mechanical Specifications | |
| HOUSING | 316 stainless steel |
| SOURCE | 5.3″ dia. x 12.4″ length
(135 mm dia. x 315 mm length) |
| RECEIVER | 5.3″ dia. x 12.4″ length
(135 mm dia. x 315 mm length) |
| WEIGHT | Source: 12.20 lb (5.53 kg)
Receiver: 12.34 lb (5.60 kg) |
| CONDUIT ENTRIES |
¾” NPT (standard), M25 (optional) |
| Environmental Specifications | |
| OPERATING TEMPERATURE RANGE | -67°F to +149°F (-55°C to +65°C) |
| OPERATING
HUMIDITY RANGE |
10-95% RH, non-condensing |
| Electrical Specifications | |
| INPUT POWER | 20 to 36 VDC range, 24 VDC nominal
24 VDC @ 12 W (max.) – source 24 VDC @ 10 W (max.) – receiver (w/relays) Consult factory for lower power consumption options for other configurations |
| DUAL ANALOG SIGNALS
0 MA* 1.5 MA* 2 MA* 4-20 MA** 4-12 MA*** 12-20 MA*** 21.7 MA |
700 ohm load max.
0-5000 ppm• meter 0-5 LEL• meter Startup/Fault Startup/Fault Test Gas/Setup Test Gas/Setup Beam Block Beam Block 0-5000 ppm• m 0-5 LEL• m 0-5000 ppm• m — — 0-5 LEL• m Over-range Over-range |
| RELAY RATINGS | 8 A @ 250 VAC/8 A @ 30 VDC res. max.
Four (4) SPDT – Fault; ppm Warning, LEL Warning; and Alarm |
| RS-485 OUTPUT | Modbus RTU with block and single data transfer modes |
| BAUD RATE | 2400, 4800, 9600, 19200, or 38400 BPS |
| HART | Fully HART compliant |
| EMC PROTECTION | Complies with EN 61000-6-4 and EN 50270 |
| SAMPLE CABLE DISTANCES | For cable resistance of 3 ohms/1,000 ft, maximum distance between IR5500 and power source @ 24 VDC:
14 AWG – 1,330 ft (405 m) – receiver, 14 AWG – 1,040 (317 m) – source. |
| DIGITAL DISPlAY | LED indication of scale displayed; Two digit, seven segment (auto range change) |
| STANDARD
CONFIGURATION |
IR5500-1-1-1-1-2-2-1-1-1-1 Methane, Dual 0-20 mA, HART,
relays, mounting arm, 20-100 m path length |
You can request the necessary certificates, documentation, instructions and user guide for MSA Safety IR5500 using the special form.
You can buy MSA Safety IR5500 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MSA Safety IR5500 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
