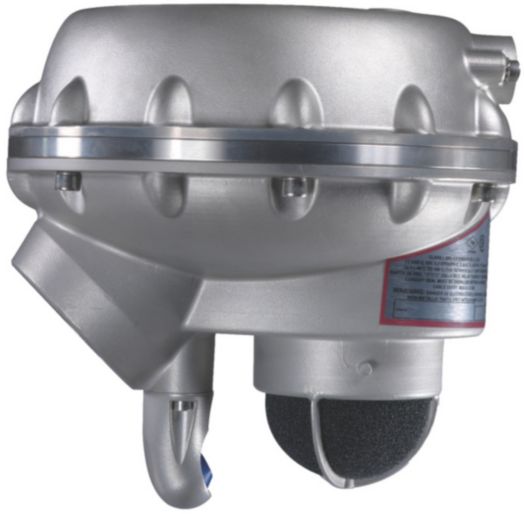

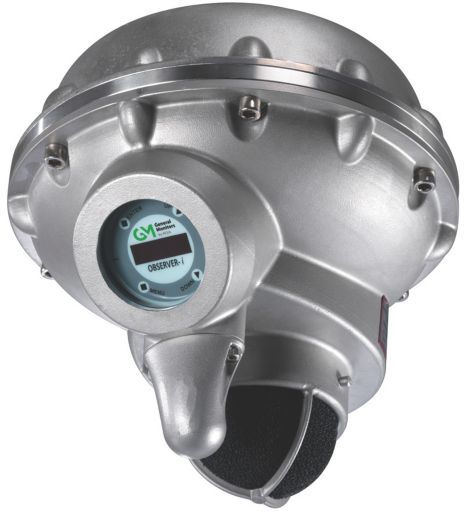

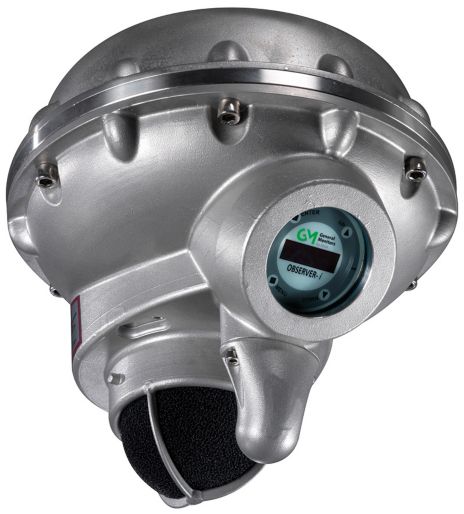

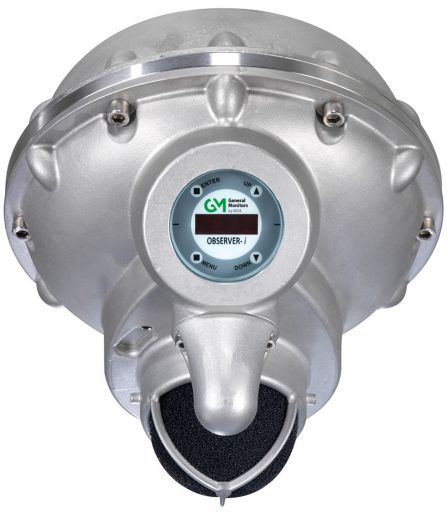

MSA Observer i Ultrasonic Gas Leak Detector

Name: MSA Observer i Ultrasonic Gas Leak Detector
Brand: MSA Safety

Instantly detect pressurized gas leaks with this high-precision, omni-direction acoustic detector utilizing Gassonic® ultrasonic technology. Works even when traditional methods of gas detection are unsuitable or dependent on ventilation. The Observer-i UGLD provides an industry-leading detection range (up to 28 m) reducing the number of detectors required.

			int(22381)
NULL

Made in USA. brand MSA Safety, model OBSERVER i

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

price По запросу

Available

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Descriptions of MSA Observer i

With ANN technology, the Observer-i makes it possible to fully analyze the sound spectrum as low as 12 kHz since common high pass filters are not used. This provides a broader leak detection range which also increases sensitivity to smaller gas leaks, without interference from unwanted background noise.
ANN technology enables the Observer-i to be installed without time consuming “training” sequences, and provides industry-leading detection distance, with unprecedented suppression of false alarms. In addition, ANN technology ensures that the Observer-i has the same gas leak detection coverage in high and low noise areas. The device requires no alarm set points or trigger levels to be configured, nor do these alarm parameters need to be adjusted if background ultrasound were to increase or decrease over time.
The Observer-i is backwards compatible with earlier versions of the Gassonic Observer by means of the Classic Mode setting wherein ANN is disabled and the legacy electrical interface is used.
The Observer-i features the patented Senssonic self-test function. This well-proven self-test checks the device’s electrical integrity and microphone every 15 minutes and ensures the Observer-i is operational at all times. The microphone and the microphone
windscreen are constantly monitored to ensure that the detector always has optimal sensitivity and detection coverage.

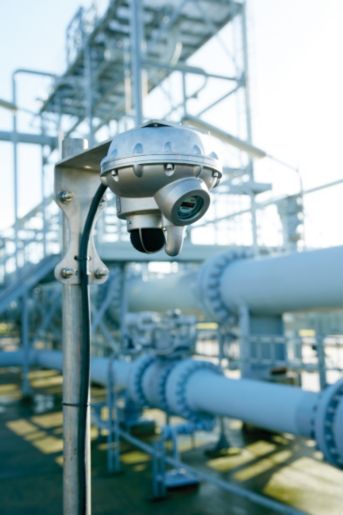

Applications

Floating Production Storage and Offloading Vessels (FPSOs)
Gas Compressor and Metering Stations
Gas Storage Facilities
Hydrogen Storage Facilities
LNG / GTL Trains
LNG Re-gasification Plants
Offshore and Onshore Oil and Gas Installations
Petrochemical Processing Plants

Technical specifications of MSA Observer i

Features	Benefits
ARTIFICIAL NEURAL NETWORK (ANN)	Improved detection range and background noise rejection prevents false alarms
SENSSONIC INTEGRATED ACOUSTIC SELF-TEST	Failsafe operation
ONE-PERSON ACOUSTIC SOUND CHECK WITH TRACEABLE PORTABLE TEST UNIT	High reliability and trouble free maintenance
HART AND MODBUS	Provides complete status and control capability in the control room
EVENT LOGGING	Stores fault, sound check, calibration, and alarm event history
DETECTS GAS LEAKS FROM 2 BAR (29 PSI) PRESSURE	Very small gas leaks can be detected quickly

Expand Table

	Electrical Specifications
INPUT POWER	15–36 VDC, 250 mA max. 24 VDC, 170 mA nominal
RELAY RATINGS (OPTIONAL)	8 A @ 250 VAC
CURRENT OUTPUT (SINK OR SOURCE)	Status Indications: 0 mA: Start up, no power 1 mA: Pulsed acoustic error 3 mA: Unit inhibit Classic Mode: 4–20 mA, 40–120 dB (u) ANN Mode: 4–12 mA, 40–120 dB (u) 16 mA, warning 20 mA, alarm
EMC/RFI	EMC Directive 2014/30/EU EN 61000-6-2, EN 61000-6-4
SERIAL DIGITAL COMMUNICATION	HART, Modbus
CABLE REQUIREMENTS	Max. cable length between Observer-i and power source @ 24 VDC (20 ohm) 2.08 mm2 (14 AWG) – 1,809 m (5,928 ft)
	Environmental Specifications
OPERATING TEMPERATURE RANGE	–40°C to 60°C (–40°F to 140°F)
OPERATING HUMIDITY RANGE	10–95% RH, non-condensing
	Mechanical Specifications
HOUSING	Stainless Steel AISI 316L
DIMENSIONS	203 x 203 x 201 mm (7.99 x 7.99 x 7.91 in)
WEIGHT	7.5 kg (16.6 lbs)
CONDUIT ENTRIES	M20 x 1.5 (additional ¾“ NPT adapter available)
MOUNTING HOLES	2 x mounting screws – M8 x 19 max
INGRESS PROTECTION	IP66 / Type 4X
STANDARD CONFIGURATION	OBSERVER i-1-1-1-1-1-1
Gas Name	Carbon Dioxide Ethylene Hydrogen Sulfide Methane Ethane Helium Hydrogen Propane Propylene
System Specifications
DETECTOR TYPE	Ultrasonic (acoustic) gas leak detector
BACKGROUND NOISE REJECTION METHOD	Artificial Neural Network (ANN)
GAS LEAK RECOGNITION METHOD	Artificial Neural Network (ANN)
MIN. ACOUSTIC DET. FREQUENCY (ANN MODE)	12 kHz
MIN. DETECTION LIMIT	40 dB (u)
ACCURACY	±3 dB
SELF-TEST	Performed every 15 minutes
MIN. PRESSURE REQUIREMENT	2 BAR (29 psi)
DETECTOR COVERAGE (REF. METHANE)	Enhanced Mode (ANN) (@ 0.1 kg/sec): FQHI setting (59 dB ANN sensitivity level): 17 meters (56 ft.) Default Ultra-high to medium background noise FQLO setting (54 dB ANN sensitivity level): 28 meters (92 ft.) Medium to low background noise Classic Mode (@ 0.1 kg/sec): Ultra-high: 7 meters (23 ft.) w/84 dB T.L. High: 12 meters (39 ft.) w/74 dB T.L. Medium: 18 meters (59 ft.) w/64 dB T.L. Low: 24 meters (79 ft.) w/54 dB T.L.
RESPONSE TIME	< 1 s (speed of sound)
APPROVALS CLASSIFICATION	ATEX/IECEx: II 2 G D Ex db ia IIB+H2 T6 Gb, Ex tb IIIC T85°C Db CSA: Ex d ia IIB+H2 Gb T6, Ex tb IIIC T85°C Db FM/CSA: Class I, Div. 1, 2 Groups B,C,D; Class II, Div. 1, 2 Groups E,F,G; Class III, T5 (Ta = –40°C to +60°C)
APPROVALS	ATEX, CE, UKEx, CSA, FM, IECEx, Inmetro, SANS HART 6.0 registered FM certified to IEC 61508 (SIL 3)
ACCESSORIES	1701 Test and Calibration Unit
DEVICE DRIVERS	DDL, DTM available here
WARRANTY	2 years

Expand Table
