MSA PrimaX I Gas Transmitter

Description of MSA PrimaX I

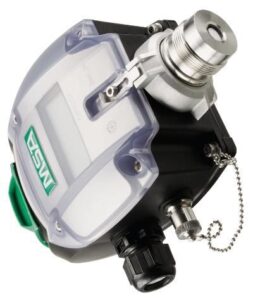

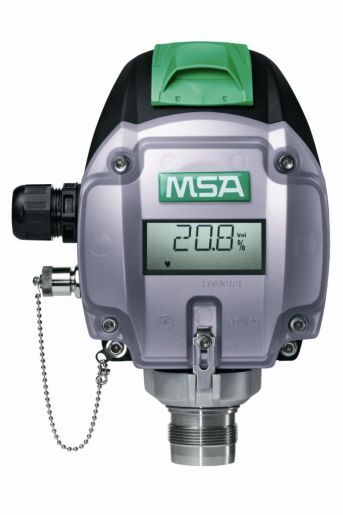

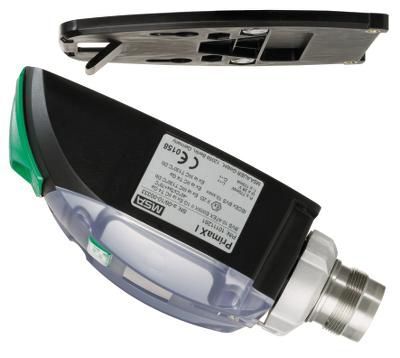

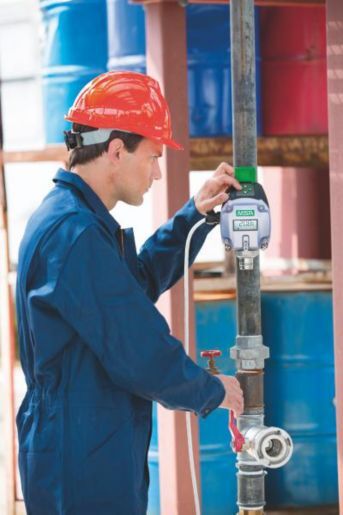

The transmitter detects toxic gases and oxygen and is housed in an antistatic, reinforced nylon enclosure. It also has a large, easy-to-read LCD screen and attaches to an integral mounting plate for easy installation, while the built-in keypad makes for quick, simple calibration. To transmit data, the unit uses a 4-20 mA output signal and can also be configured to use HART digital communication. With easily replaced plug-in sensors, the PrimaX I transmitter is suitable for laboratories, chemical plants, power plants and several other industry settings.

Applications

PrimaX gas transmitters are suitable for many industrial applications:

• Agriculture, fertilisers
• Construction
• Storage of hazardous materials
• Laboratory
• Utilities
• OGP
• Chemical plants
• General industry
• Power plants
• Steel plants
• Car industry
• Waste water
• Food and beverages
• Various industrial applications


  Technical specifications of MSA PrimaX I

  DESCRIPTION	Values	PrimaX P	PrimaX I
  Sensors
  Combustible	Catalytic	+	–
  Oxygen & Toxic	Electrochemical	+	+
  Performance
  Typical response time	τ₉₀ ≤ 20 sec. (Combustible) τ₉₀ ≤ 25 sec. (O₂) τ₉₀ ≤ 20 sec. (CO) τ₉₀ ≤ 12 sec. (H₂S)	+	+
  Sensor operating life	up to 3 years in clean air	+	+
  Operating temperature	–40 °C to +70 °C (–40 °F to +160 °F)	+	+
  Operating humidity range	15% to 90% RH non-condensing	+	+
  Operating pressure range	80–120 kPa	+	+
  Electrical
  Supply voltage	19.2 to 28 VDC (24 VDC nominal)	+	+
  Output signal	4–20 mA (max. load 300 ohm)	+	+
  Power consumption	3 watt typical at 24 VDC	+	–
  	0.7 watt typical at 24 VDC	–	+
  Terminals	3 or 4 wire – up to 2.5 mm2	+	–
  	2 wire – up to 2.5 mm2	–	+
  Display & Indicators
  Display	Alphanumeric LCD	+	+
  LED status indicators	Green, Yellow and Red	+	–
  Options
  HART digital protocol	Diagnostics and configuration	+	+
  Relay output	Alarm and Fault – 2 A/30 VDC SPDT	+	–
  Physical
  Ingress Protection	IP 67	+	–
  	IP 66	–	+
  Weight	1.6 kg (3.5 lbs)	+	–
  	1.2 kg (2.6 lbs)	–	+
  Dimensions	220 x 162 x 100 mm (H x W x D)	+	–
  	220 x 162 x 81 mm (H x W x D)	–	+
  Material	Powder coated aluminium	+	–
  	Anti-static reinforced nylon	–	+
  Cable gland thread	M25 x 1.5 mm2	–	+
  	3/4″ NPT or M25 x 1.5 mm2	+	–
  Approvals
  ATEX/IECEx	Gas – II 2G Ex d ia [ia] IIC T4 Gb Dust – II 2D Ex tb ia [ia] IIIC T130°C Db EN 60079-29-1, EN 50104, EN45544	+	–
  	Gas – II 1G Ex ia IIC T4 Ga Dust – II 2D Ex ia IIIC T130°C Db EN 50104, EN 45544	–	+
  UL	Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III	+
  	Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups F, G; Class III		+
  Other Approvals	CSA, CMC, CCCF, EAC, INMETRO, HART registered, BG RCI	+	+
  Safety Integrity Level	SIL 2	+	+

  Expand Table

  Description	PrimaX P	PrimaX I
  Gases and Ranges
  Methane (100% LEL)	+	–
  Propane (100% LEL)	+	–
  Oxygen (25%, 10%)	+	+
  Hydrogen Sulphide H₂S (10, 20, 50,100 ppm)	+	+
  Carbon Monoxide CO (100, 200, 500, 1000 ppm)	+	+
  Ammonia nH₃ (50, 100, 500, 1000 ppm)	+	+
  Chlorine Cl₂ (5, 10 ppm)	+	+
  Sulphur Dioxide SO₂ (10, 20, 50, 100 ppm)	+	+
  Hydrogen Cyanide HCn (10, 20, 30, 50 ppm)	+	+
  Hydrogen Chloride HCl (10, 20, 30 ppm)	+	+
  Hydrogen H₂ (1000 ppm)	+	+
  Nitrogen Dioxide NO₂ (10, 20, 100 ppm) n n	+	+
  Nitric Oxide NO (100 ppm)	+	+
  Options
  HART	+	+
  Relays	+	–
  Galvanic isolated output	+	–
  Accessories
  Flow adapter	+	+
  Pipe mount kit	+	+
  Sensorgard	+	+
  Calibration cap	+	+
  Sunshield	+	+
  Sensor tag	+	+
  CalGard remote calibration adapter	+	+
  Duct Mounting Kit	+	+
  HART Cable	+	+
