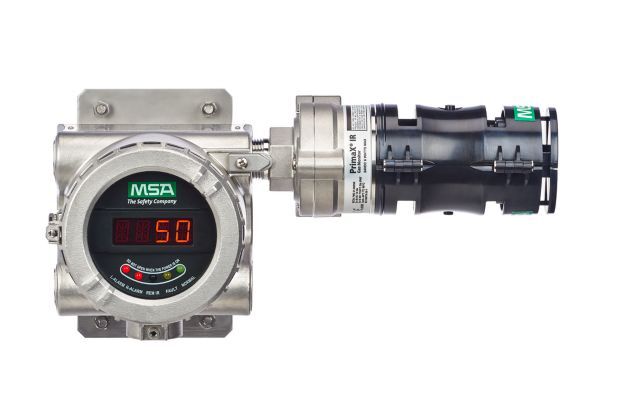

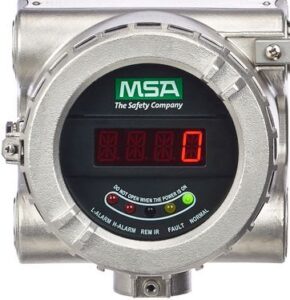

Made in USA. brand MSA Safety, model PrimaX IR+
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
| General specifications | |
| Measuring Range | 0 – 100% LEL |
| Gas Types | Hydrocarbon gases and vapours; The PrimaX IR+ Detector is available with factory Methane and Propane calibrations, the instrument may also be calibrated to following performance approved gases: Methane, Propane, Toluene, n-Butane, n-Pentane, n-Hexane, Propylene, Ethane, Propylene Oxide, Acetone, Cyclopentane, Ethyl Acetate, IsoButane, Ethylene. Most of other flammable hydrocarbon vapours are also detectable. |
| Warranty | 3 years full instrument
10 years IR source |
| Signal Outputs | 3-Wire, 4-20 mA current source, HART 7 protocol compatible 3 relays: 2 alarm, 1 fault (2A@30 VDC) |
| Output Levels (default values) |
Normal for 0 – 100% LEL 4.0 – 20.0 mA Safety Critical Fault 0.0 mA *Fault 2.0 mA *Obscuration or dirty optics 2.5 mA *Power up or calibration 3.0 mA *Cleaning mode 3.5 mA Overrange 20.0 – 20.5 mA (*) user configurable via the HART interface |
| Current Draw | 175 mA RMS average @ 24 VDC
250 mA Max in-rush @ 24 VDC including sensor |
| Power Input | 20-30 VDC, 6 Watts max |
| Wiring requirement | Connection terminals: 3-Wires, 2.5 mm2 max |
| Performance specifications | |
| Response Time Methane/Propane |
T50 < 5 sec, T90 < 7 sec (without environmental guard) T50 < 7 sec, T90 < 15 sec (with environmental guard) |
| Stability | +/- 2% Full Scale/Year |
| Repeatability | +/- 1% Full Scale |
| Mechanical specifications | |
| Physical | 320-W x 152-L x 115-H mm (12.6 x 6.0 x 4.5 inches)
Weight with display and mounting bracket: |
| Material Type | Display housing: Aluminum or 316 Stainless Steel with 3 each M25 entries (316 Stainless Steel stopping plug provided) Sensor assembly: 316 Stainless Steel |

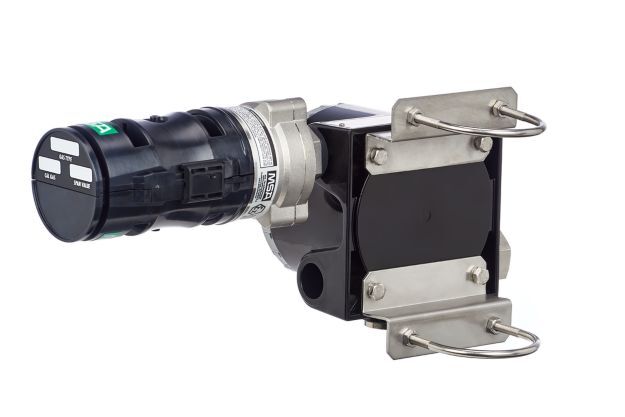

| Mounting bracket (included) |
316 Stainless Steel, with 2” pipe mount U-Bolts |
| Environmental specifications | |
| Temperature range | -40 to 75°C (-40 to 167°F) |
| Humidity | 15-95% RH, non-condensing |
| Ingress Protection | Dual IP66 and IP67 rated |
| Approvals |
|
| General |
IECEx, ATEX, UKCA, CE Marking, SIL 2 suitable |
| Approval Ratings |
European Approvals ATEX Directive 2014/34/EU, EMC Directive 2014/30/EU Gas II 2 G Ex db IIC T4 Gb Dust II 2 D Ex tb IIIC T130°C Db -40°C ≤ Ta ≤ +75°C EN 60079-0:2018, EN 60079-1:2014, EN 60079-31:2014, EN 60079-29-1:2016, EN 50271:2018 IEC Approvals Gas Ex db IIC T4 Gb Dust Ex tb IIIC T130°C Db -40°C ≤ Ta ≤ +75°C IEC 60079-0:2017, IEC 60079-1:2014, IEC 60079-31:2013, IEC 60079-29-1:2016 |
| Safety Integrity Level |
Suitable for SIL2 (HFT=0), SIL3 (HFT=1) according to IEC 61508 |
You can request the necessary certificates, documentation, instructions and user guide for MSA Safety PrimaX IR+ using the special form.
You can buy MSA Safety PrimaX IR+ in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MSA Safety PrimaX IR+ price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
