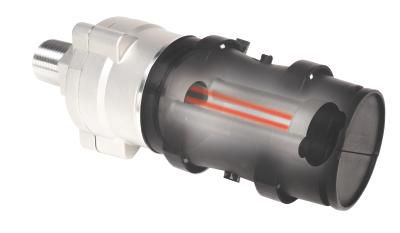

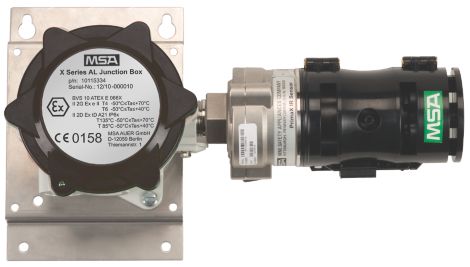

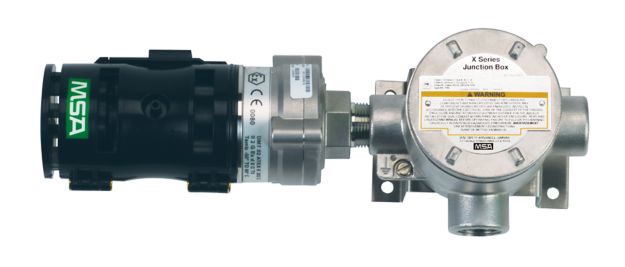

Every feature of the PrimaX IR Gas Transmitter is designed with reliability in mind to withstand the most challenging environmental conditions through out the product’s life. MSA’s PrimaX IR Gas Transmitter offers LEL (Lower Explosive Limit) combustible gas detection through a patented PrimaX Gas Transmitter IR dual source design. A redundant IR source provides reliability and uninterrupted monitoring should a source failure occur. Furthermore, the possibility of obscurations due to rain, fog, dirt, dust, and other environmental conditions is minimized due to dual source design.
Applications
• OGP including platforms, refineries, drilling rigs, and compressor stations
• Chemical plants
• Fuel-loading and storage facilities
• Wastewater
• Various other industrial applications
| Description | Specification |
| Gas Types and Ranges | Hydrocarbon gases & vapors; 0–100 % LEL
The PrimaX IR Detector is ATEX performance approved to following gases: |
| Temperature Range | –50 °C to +80 °C (–58 °F to +176 °F) |
| Repeatability | ±1 % full-scale |
| Response Times
without environmental guard |
τ₉₀ <4 sec Tested as per procedure in EN 60079-29-1. |
| Humidity | 0 %–95 % RH, non-condensing |
| Sensor Warranty | 10 years for IR source |
| Power Input | 18–32 VDC, 5 watts (–50 °C to +80 °C) |
| Current Draw | 350 mA RMS average @ 24 VDC |
| Wiring Requirements | 3-wire, 2.0 mm max (14 AWG) |
| Signal Output | 4–20 mA 3-wire current source with HART protocol |
| Sensor Physical Characteristics Weight Dimensions |
316 stainless steel 1.5 kg (3.3 lbs.) 89 x 203 mm (3.5” dia. x 8” long) |
| Approval Ratings | Europe/International EN 60079-0:2009, EN 60079-1:2007 IEC 60079-31:2009 EN 60079-29-1:2007, EN 50271:2010 CE EMC Directive: 2014/30/EU II 2 G Ex d IIC T4 Gb II 2 D Ex tb IIIC T130° Db IP67 US and Canada cFMus Class I, Div.1, Groups A, B, C, & D Class II, Div.1, Groups E, F, & G Class III ANSI/ISA 12.13.01 CSA C22.2 No. 152 Combustible Gas Performance IEC China Ex/CMC/CCCF Russia Ex/EAC (Tamb –50 °C to +80 °C) |
| Ingress Protection | IP67 |
| Source Redundancy | 100 % redundancy with failure of 1st source |
| HART HART 7.0 | Compatibility with HART 7.0 |
| Safety Integrity Level | SIL 2 |
You can request the necessary certificates, documentation, instructions and user guide for MSA Safety PrimaX IR using the special form.
