Made in USA. brand MSA Safety, model PrimaX P
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

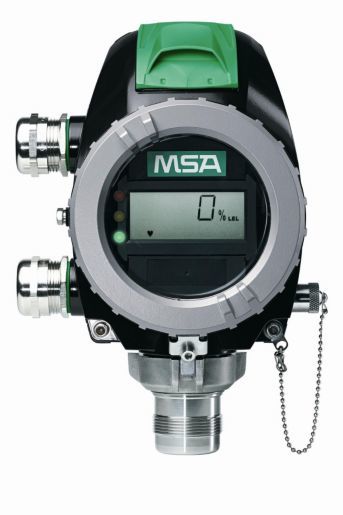

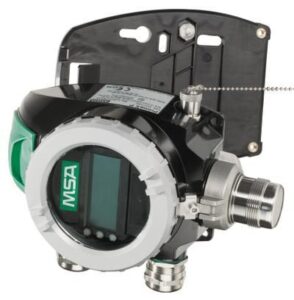

Designed to detect gases indoors or outdoors, our PrimaX P Gas Transmitter measures oxygen and toxic and combustible gases. The flameproof transmitter is housed in a powder-coated aluminum enclosure that will protect it in extremely dangerous conditions. The unit also features a large, easy-to-read LCD screen and three LED status indicators for up-to-the-second reporting. The transmitter attaches to an integral mounting plate for easy installation, and it can be easily calibrated using the built-in keypad. It uses a 4-20 mA output signal to transmit its data, and it can also be configured to use HART digital communication. With easily replaced plug-in sensors, the PrimaX P transmitter is suitable for laboratories, chemical plants, power plants and several other industry settings.

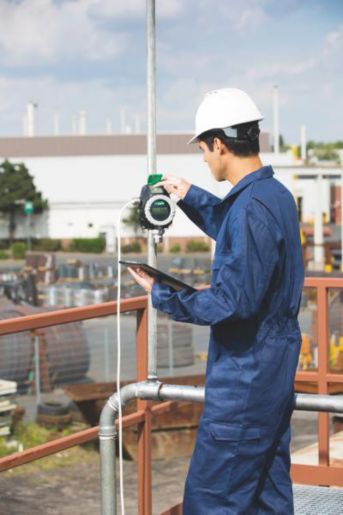

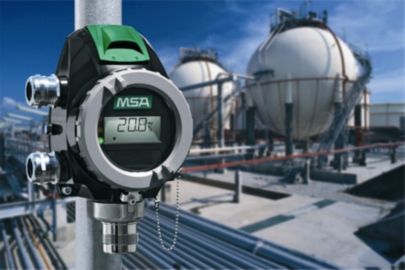

Applications
PrimaX gas transmitters are suitable for many industrial applications:
| DESCRIPTION | Values | PrimaX P | PrimaX I |
| Sensors | |||
| Combustible | Catalytic | + | – |
| Oxygen & Toxic | Electrochemical | + | + |
| Performance | |||
| Typical response time | τ₉₀ ≤ 20 sec. (Combustible) τ₉₀ ≤ 25 sec. (O₂) τ₉₀ ≤ 20 sec. (CO) τ₉₀ ≤ 12 sec. (H₂S) |
+ | + |
| Sensor operating life | up to 3 years in clean air | + | + |
| Operating temperature | –40 °C to +70 °C (–40 °F to +160 °F) | + | + |
| Operating humidity range | 15% to 90% RH non-condensing | + | + |
| Operating pressure range | 80–120 kPa | + | + |
| Electrical | |||
| Supply voltage | 19.2 to 28 VDC (24 VDC nominal) | + | + |
| Output signal | 4–20 mA (max. load 300 ohm) | + | + |
| Power consumption | 3 watt typical at 24 VDC | + | – |
| 0.7 watt typical at 24 VDC | – | + | |
| Terminals | 3 or 4 wire – up to 2.5 mm2 | + | – |
| 2 wire – up to 2.5 mm2 | – | + | |
| Display & Indicators | |||
| Display | Alphanumeric LCD | + | + |
| LED status indicators | Green, Yellow and Red | + | – |
| Options | |||
| HART digital protocol | Diagnostics and configuration | + | + |
| Relay output | Alarm and Fault – 2 A/30 VDC SPDT | + | – |
| Physical | |||
| Ingress Protection | IP 67 | + | – |
| IP 66 | – | + | |
| Weight | 1.6 kg (3.5 lbs) | + | – |
| 1.2 kg (2.6 lbs) | – | + | |
| Dimensions | 220 x 162 x 100 mm (H x W x D) | + | – |
| 220 x 162 x 81 mm (H x W x D) | – | + | |
| Material | Powder coated aluminium | + | – |
| Anti-static reinforced nylon | – | + | |
| Cable gland thread | M25 x 1.5 mm2 | – | + |
| 3/4″ NPT or M25 x 1.5 mm2 | + | – | |
| Approvals | |||
| ATEX/IECEx | Gas – II 2G Ex d ia [ia] IIC T4 Gb Dust – II 2D Ex tb ia [ia] IIIC T130°C Db EN 60079-29-1, EN 50104, EN45544 |
+ | – |
| Gas – II 1G Ex ia IIC T4 Ga Dust – II 2D Ex ia IIIC T130°C Db EN 50104, EN 45544 |
– | + | |
| UL | Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups E, F, G; Class III |
+ | |
| Class I, Div. 1, Groups A, B, C, D; Class II, Div. 1, Groups F, G; Class III |
+ | ||
| Other Approvals | CSA, CMC, CCCF, EAC, INMETRO, HART registered, BG RCI | + | + |
| Safety Integrity Level | SIL 2 | + | + |
| Description | PrimaX P | PrimaX I |
| Gases and Ranges | ||
| Methane (100% LEL) | + | – |
| Propane (100% LEL) | + | – |
| Oxygen (25%, 10%) | + | + |
| Hydrogen Sulphide H₂S (10, 20, 50,100 ppm) | + | + |
| Carbon Monoxide CO (100, 200, 500, 1000 ppm) | + | + |
| Ammonia nH₃ (50, 100, 500, 1000 ppm) | + | + |
| Chlorine Cl₂ (5, 10 ppm) | + | + |
| Sulphur Dioxide SO₂ (10, 20, 50, 100 ppm) | + | + |
| Hydrogen Cyanide HCn (10, 20, 30, 50 ppm) | + | + |
| Hydrogen Chloride HCl (10, 20, 30 ppm) | + | + |
| Hydrogen H₂ (1000 ppm) | + | + |
| Nitrogen Dioxide NO₂ (10, 20, 100 ppm) n n | + | + |
| Nitric Oxide NO (100 ppm) | + | + |
| Options | ||
| HART | + | + |
| Relays | + | – |
| Galvanic isolated output | + | – |
| Accessories | ||
| Flow adapter | + | + |
| Pipe mount kit | + | + |
| Sensorgard | + | + |
| Calibration cap | + | + |
| Sunshield | + | + |
| Sensor tag | + | + |
| CalGard remote calibration adapter | + | + |
| Duct Mounting Kit | + | + |
| HART Cable | + | + |
You can request the necessary certificates, documentation, instructions and user guide for MSA Safety PrimaX P using the special form.
You can buy MSA Safety PrimaX P in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MSA Safety PrimaX P price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
