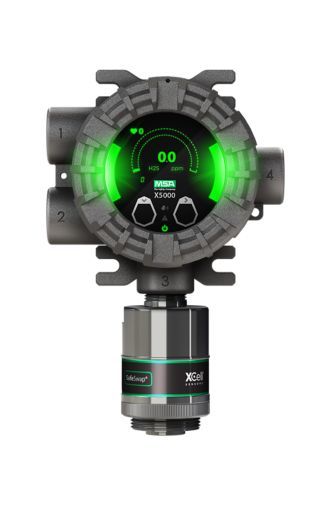

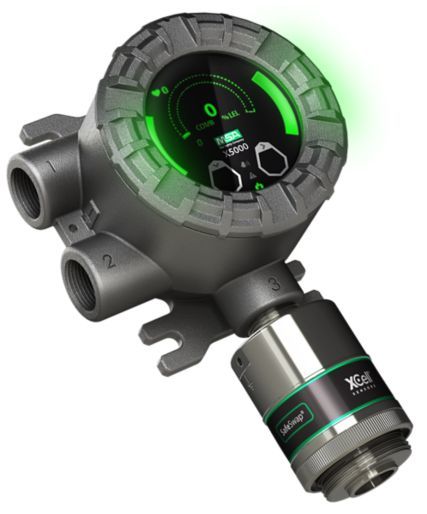

The ULTIMA X5000 Gas Monitor is the future of gas detection for oxygen, toxic and combustible gases. MSA XCell gas sensors with TruCal technology offer calibration cycles up to 24 months (local calibration respected). The gas transmitter’s advanced, multi-lingual OLED display is easy to read and the unique touch-screen interface makes it simple to navigate.
Made in USA. brand MSA Safety, model X5000
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
Applications
| Product Specifications | |||
| COMBUSTIBLE GAS SENSOR TYPE | Catalytic Bead (XCell combustible) Infrared (XIR Plus) | ||
| TOXIC GAS & OXYGEN SENSOR TYPE | XIR PLUS | Carbon Dioxide (CO₂) | |
| XCell Toxic | Ammonia (NH₃), | ||
| Carbon Monoxide (CO), | |||
| Carbon Monoxide (CO) H₂-resistant, | |||
| Hydrogen Sulfide (H₂S), | |||
| Chlorine (Cl₂), | |||
| Chlorine Dioxide (ClO2) | |||
| Sulfur Dioxide (SO₂) | |||
| XCell O₂ | Oxygen (O₂) | ||
| Electrochem. | Ammonia (NH₃), | ||
| Ethylene Oxide (ETO) | |||
| Hydrogen (H₂), | |||
| Hydrogen Chloride (HCl), | |||
| Hydrogen Cyanide (HCN), | |||
| Hydrogen Fluoride (HF) | |||
| Nitric Oxide (NO), | |||
| Nitrogen Dioxide (NO₂), | |||
| Sulfur Dioxide (SO₂) | |||
| SENSOR MEASURING RANGES | Combustible | 0-100% LEL | |
| CO₂ | 0-2%, 0-5% Vol | ||
| CO | 0-100, 0-500, 0-1000 ppm | ||
| CO, H₂-resistant | 0-100 ppm | ||
| Cl₂ | 0-5, 0-10, 0-20 ppm | ||
| ClO₂ | 0-3 ppm | ||
| ETO | 0-10 ppm | ||
| H₂ | 0-1000 ppm | ||
| HCl | 0-50 ppm | ||
| HCN | 0-50 ppm | ||
| HF | 0-10 ppm | ||
| H₂S | 0-10, 0-50, 0-100, 0-500 ppm | ||
| NH₃ | 0-100, 0-1000 ppm | ||
| NO | 0-100 ppm | ||
| NO₂ | 0-10 ppm | ||
| O₂ | 0-25% | ||
| SO₂ | 0-25, 0-100 ppm | ||
| APPROVALS CLASSIFICATION | Markings vary by component. | ||
| See manual for specific component markings. | |||
| DIVISIONS (US/CAN) | |||
| ZONES (GLOBAL) | Class I, II, III; Div 1 & 2, T4/T5/T6 | ||
| ENCLOSURE RATING | Ex db nA IIC T5 Gb (Class I, Zone 1/Zone2) | ||
| Ex tb IIIC T85°C Db (Class II, Zone 21) | |||
| Type 4X, IP66 | |||
| WARRANTY | X5000 transmitter | 2 years | |
| XIR PLUS | 10 years source, | ||
| 5 years electronics | |||
| XCell Sensors | 3 years | ||
| Electrochemical Sensors | Varies by gas | ||
| CSA, FM*, ATEX, IECEx, INMETRO, DNV-GL Marine, CE Marking. SIL 2 suitable. | |||
| APPROVALS | Complies with C22.2 No. 152, FM 6320 | ||
| Environmental Specifications | ||||
| OPERATING | XCell | -40°C to +60°C | ||
| TEMPERATURE RANGE | Electrochem. | See page 2 | ||
| XIR PLUS | -40°C to +60°C | |||
| RELATIVE HUMIDITY (NON-CONDENSING) | XCell toxics & O₂ | 10-95% | ||
| XCell combustible | 0-95% | |||
| XIR PLUS | 15-95% | |||
| Mechanical Specifications | ||||
| INPUT POWER | 11 to 30 VDC, 3 wire | |||
| SIGNAL OUTPUT | Dual 4-20 mA current source, HART | |||
| BLUETOOTH (OPTIONAL) | Bluetooth Low Energy (BLE) v4.3 or higher | |||
| RELAY RATINGS | 5 A @ 30 VDC; 5 A @ 220 VAC (3X) SPDT – fault, warn, alarm | |||
| RELAY MODES | Common, discrete, horn | |||
| NORMAL MAX POWER | Without Relays | With Relays | ||
| XIR PLUS | 5.7 W | 6.7 W | ||
| XCell combustible | 3.9 W | 4.9 W | ||
| XCell Toxic & O₂ | 1.8 W | 2.8 W | ||
| XIR PLUS & XCell combustible | 9.9 W | 10.9 W | ||
| XIR PLUS & XCell toxic or O₂ | 6.0 W | 7.0 W | ||
| Dual XIR PLUS | 10.6 W | 11.6 W | ||
| Dual XCell toxic & O₂ | 2.6 W | 3.6 W | ||
| Dual XCell combustible | 9.6 W | 10.6 W | ||
| Dual XCell comb. & XCell toxic or O₂ | 4.3 W | 5.3 W | ||
| EMC DIRECTIVE | Complies with EN 50270, EN 61000-6-4, EN 61000-6-3 | |||
| DISPLAY | Organic LED (multi-lingual) with contrast ratio of 2000:1 and view angle of 160° | |||
| HART | HART 7, HART device description language available | |||
| FAULTS MONITORED | Low supply voltage, RAM checksum error, flash checksum error, EEPROM error, internal circuit error, relay, invalid sensor configuration, sensor faults, general system | |||
| CABLE REQUIREMENTS | 3-wire shielded cable for single sensor and 4-wire shielded cable for dual sensor configurations. Accommodates up to 12 AWG or 4 mm2 | |||
| Refer to manual for mounting distances. | ||||
| Dimensions | ||||
| HOUSING (W x H) | 5.88” x 5.71” (150 x 145 mm) | |||
| W/XCELL SENSOR | 5.88” x 10.15” (150 x 258 mm) | |||
| W/XCELL & XIR SENSORS | 13.42” x 10.15” (341 x 258 mm) | |||
| LID (DEPTH) | 4.86” (123 mm) | |||
| W/RELAY BOARD | ||||
| W/O RELAY BOARD | 3.86” (98 mm) | |||
| WEIGHT | 8.8 lb. (4 kg), 316 SS | |||
You can request the necessary certificates, documentation, instructions and user guide for MSA Safety X5000 using the special form.
You can buy MSA Safety X5000 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. MSA Safety X5000 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
