Protection heads are available in a variety of materials, are compatible with various probe diameters and can use transmitters. Also, configurable w/ single or dual elements.
Made in USA. brand OMEGA, model NB-HEPTX-NXT
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $43
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

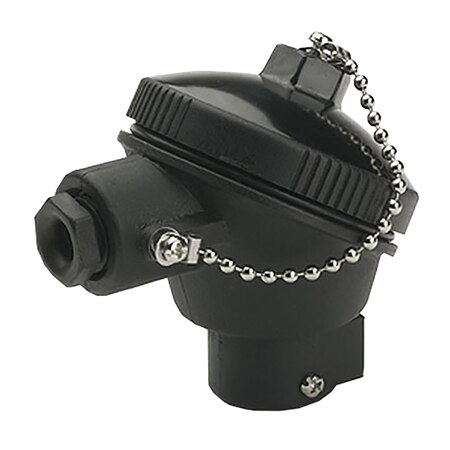

OMEGA offers a wide range of thermocouple heads from cast iron to Feraloy Iron Alloy.
| Material | Type | Model No. | Terminals | Wt. (oz) |
Threaded Openings | Features | |
| Protection Tube Entry |
Extension Wire Entry |
||||||
| Cast Iron | NB1 | NB1-0 NB1-2 NB1-4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 14 gage wire |
22 23 24 |
1/2′ NPT | 1/2′ NPT | * Rugged construction * Screw cover with inside thread * Moisture and dust resistant * Ideal for outdoor use |
| Burnished Die Cast Aluminum |
NB2 | NB2-0 NB2-2 NB2-4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 14 gage wire |
5 6 6-1/2 |
1/2′ NPT Standard |
1/2′ NPT w/compression fitting for 1/8′ to 1/4’O.D. wire |
* Small and Lightweight * Good corrosion resistance * Gasketed, weather resistant * Burnished finish * Safety chain on cover |
| Cast Aluminum Body and Cap |
NEPA | NEPA-0 NEPA-2 NEPA-4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 14 gage wire |
16-1/2 17-3/4 18-1/4 |
3/4′ NPT | 3/4′ NPT | * Explosion resistant head * Rated for: Class III Class I, Group C, D Class II, Groups E, F, G * Screw cover * Moisture and dust resistant * Safety Ideal for outdoor use * Safety Utilizes barrier strip connector (optional) |
| NEPB | NEPB-0 NEPB-2 NEPB-4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 14 gage wire |
21-1/2 22-3/4 23-1/4 |
1/2′ NPT | 1/2′ NPT | ||
| Cast Iron |
NSA | NSA-0 NSA-2 NSA-4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 8 gage wire |
42 46 48 |
1/2′ NPT | 3/4′ NPT | * Rugged construction * Screw cover with inside thread * Moisture and dust resistant * Ideal for outdoor use * Standard OMEGA™ heavy duty head * Cover equipped with safety chain (readily removed without tools) |
| NSB | NSB-0 NSB-2 NSB-4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 8 gage wire |
40 44 46 |
3/4′ NPT | 3/4′ NPT | ||
| NSC | NSC-0 NSC-2 NSC-4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 8 gage wire |
36 40 42 |
1′ NPT | 3/4′ NPT | ||
| Cast Iron with Aluminum Cap |
NEP-T | NEP-T0 NEP-T2 NEP-T4 |
0 = no terminal block 2 = single element 4 = duplex elementmax. 14 gage wire |
75 76 76 |
1/2′ NPT | 1/2′ NPT | * Explosion resistant head * Rated for Class I, Group C, D Class II, Groups E, F, G Class III * Screw cover with inside thread * Moisture and dust resistant * Ideal for outdoor use * Utilizes barrier strip connector (optional) |
| Feraloy with Iron Alloy |
HEP-TX | HEP-TX-0 HEP-TX-2 HEP-TX-4 HEP-TX-70 |
0 = no terminal block 2 = single element 4 = duplex element 70 = for mounting TX70 Transmitter max. 14 gage wire |
62 64 64 66 |
1′ NPT 3/4′ NPT |
1′ NPT 3/4′ NPT |
* Explosion resistant head for 2-wire transmitter * Rated for Class I, Div 1&2, Groups C, D Class III Class II, Div 1 Groups E, F, G, Class III * Moisture and dust resistant * Ideal for outdoor use * Utilizes barrier strip connector (optional) |
| Product Number | Material | Process Connection | Terminals | Protection Tube Entry |
|---|---|---|---|---|
|
NB4 $49.37
|
Aluminum
|
M16 x 1.5 with compression fitting
|
Duplex element
|
M10 x 1 works with 1/8 NPT
|
|
NB1-0 $42.85
|
Cast Iron
|
1/2″ NPT
|
No terminal block
|
1/2″ NPT
|
|
NB1-2 $48.36
|
Cast Iron
|
1/2″ NPT
|
Single element
|
1/2″ NPT
|
|
NB1-4 $51.15
|
Cast Iron
|
1/2″ NPT
|
Duplex element
|
1/2″ NPT
|
|
NB2-0 $42.85
|
Burnished Die Cast Aluminum
|
1/2″ NPT with compression fitting for 1/8 to 1/4 in OD wire
|
No terminal block
|
1/2″ NPT
|
|
NB2-2 $45.78
|
Burnished Die Cast Aluminum
|
1/2″ NPT with compression fitting for 1/8 to 1/4 in OD wire
|
Single element
|
1/2″ NPT
|
|
NB2-4 $52.16
|
Burnished Die Cast Aluminum
|
1/2″ NPT with compression fitting for 1/8 to 1/4 in OD wire
|
Duplex element
|
1/2″ NPT
|
|
NB3-0 $46.66
|
Aluminum
|
1/2″ NPT
|
No terminal block
|
1/2″ NPT
|
|
NB3-2 $51.15
|
Aluminum
|
1/2″ NPT
|
Single element
|
1/2″ NPT
|
|
NB3-4 $55.55
|
Aluminum
|
1/2″ NPT
|
Duplex element
|
1/2″ NPT
|
|
NB9-2 $47.43
|
Glass Reinforced Nylon
|
1/2″ NPT with compression fitting
|
Single element
|
1/2″ NPT
|
|
NSB-0 $93.26
|
Cast Iron
|
3/4″ NPT
|
No terminal block
|
3/4″ NPT
|
|
NSB-2 $98.34
|
Cast Iron
|
3/4″ NPT
|
Single element
|
3/4″ NPT
|
|
NSB-4 $107.33
|
Cast Iron
|
3/4″ NPT
|
Duplex element
|
3/4″ NPT
|
|
NXT-2 $54.48
|
Aluminum
|
Not Applicable
|
Not Applicable
|
Not Applicable
|
|
NEP-T2 $151.17
|
Cast Iron with Aluminum Cap
|
1/2″ NPT
|
Single element
|
1/2″ NPT
|
|
NEPA-0 $155.46
|
Cast Aluminum Body and Cap
|
3/4″ NPT
|
No terminal block
|
3/4″ NPT
|
|
NEPA-2 $160.47
|
Cast Aluminum Body and Cap
|
3/4″ NPT
|
Single element
|
3/4″ NPT
|
|
NEPA-4 $165.44
|
Cast Aluminum Body and Cap
|
3/4″ NPT
|
Duplex element
|
3/4″ NPT
|
|
HEP-TX-0 $145.49
|
Feraloy with Iron Alloy
|
1″ NPT, 3/4″ NPT
|
No terminal block
|
1″ NPT, 3/4″ NPT
|
|
HEP-TX-2 $152.14
|
Feraloy with Iron Alloy
|
1″ NPT, 3/4″ NPT
|
Single element
|
1″ NPT, 3/4″ NPT
|
You can request the necessary certificates, documentation, instructions and user guide for OMEGA NB-HEPTX-NXT using the special form.
You can buy OMEGA NB-HEPTX-NXT in UAE at a price starting from 43 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. OMEGA NB-HEPTX-NXT price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
