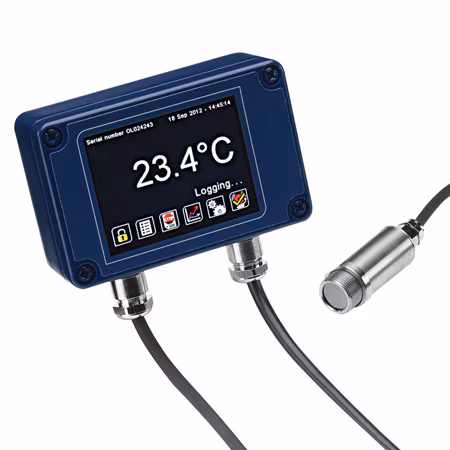

Miniature Fixed Infrared Temperature Sensor with Optional Touch Screen Display
Made in USA. brand OMEGA, model OS-MINI
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $345
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
4 to 20 mA, 15:1, IR Sensor, 30 m Extended Cable
OS-MINI and OS-MINI22 Models
The electronics module is available with several different options: The backlit touch screen interface provides a large, bright display of the measured temperature in digital format and a graph view that shows the history of the measured temperature. It also enables full configuration of the sensor including temperature range setting between -20 to 1000°C (-4 to 1832°F), adjustable filtering, peak or valley hold processing, emissivity setting and reflected energy compensation. In alarm conditions, the whole display changes color to provide an immediate and obvious alarm indication.
Alarm modes and levels can be configured via the touch screen. When fitted with a MicroSD card, the Omega MINI and MINI22 models also function as a data logger, providing a useful means of recording process temperatures for quality assurance and traceability. The user can select the sample rate and the number of samples to be taken and schedule the data logging to start at a certain time. With a 2 GB card, the user can store 28.4 million time and date stamped readings, which provides almost 1 years’ worth of data at the fastest possible sample rate of 1 per second. Output options include 4 to 20 mA, RS485 Modbus and alarm relays, which are rated 24 Vdc so there is no need for a separate trip amplifier. Optional accessories include mounting brackets, an air purge collar, protective lens cover and laser sighting tool.
OS-MINIUSB Model
The OS-MINIUSB is a simple easy way to measure non-metallic surfaces between -20 and 1000°C (-4 and 1832°F), with a response time of just 125 ms. Some specific applications of the OS-MINIUSB include but not limited to:
Benchtop and Laboratory
With the precision and robustness of our industrial pyrometers, and the plug-and-play convenience of USB, the OS-MINIUSB is the ideal fixed mount IR temperature sensor for testing and experimentation.
Education
The OS-MINIUSB is ideal for teaching science concepts such as emissivity, reflectivity, thermal conductivity, energy transfer, insulation and internal energy.
| Product Number | Process Temprature Range | Field of View | Accuracy @ Ambient | Operating Temprature range | Laser Output | Built in Display | Emissivity | Cable Length | Output | Supply Voltage | Spectral Response | Response Time | Communication Protocol | Intrisically Safe | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OS-MINIUSB-SN201 $345.18
|
-20°C (-4°F) to 1000°C (1832°F)
|
20:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 75°C (167°F)
|
No
|
No
|
0.2-1
|
1.5 m (5 ft)
|
USB
|
5 Vdc
|
8 to 14 microns
|
125 ms
|
USB
|
No
|
Datalogging & configuration software
|
|
OS-MINI152-D-C4 $857.18
|
-20°C (-4°F) to 1000°C (1832°F)
|
15:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
RS485
|
No
|
Touch Screen Interface
|
|
OS-MINI152-D-MA $737.10
|
-20°C (-4°F) to 1000°C (1832°F)
|
15:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
|
OS-MINI212-D-C4 $789.03
|
-20°C (-4°F) to 1000°C (1832°F)
|
2:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
RS485
|
No
|
Touch Screen Interface
|
|
OS-MINI212-D-MA $708.98
|
-20°C (-4°F) to 1000°C (1832°F)
|
2:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
|
OS-MINI302-D-C4 $971.35
|
-20°C (-4°F) to 1000°C (1832°F)
|
30:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
RS485
|
No
|
Touch Screen Interface
|
|
OS-MINI302-D-MA $922.39
|
-20°C (-4°F) to 1000°C (1832°F)
|
30:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
|
OS-MINI802-D-C4 $1,192.86
|
-20°C (-4°F) to 1000°C (1832°F)
|
Close-Focus
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
RS485
|
No
|
Touch Screen Interface
|
|
OS-MINI802-D-MA $1,047.23
|
-20°C (-4°F) to 1000°C (1832°F)
|
Close-Focus
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
|
OS-MINIUSB-SN21 $300.63
|
-20°C (-4°F) to 1000°C (1832°F)
|
2:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 75°C (167°F)
|
No
|
No
|
0.2-1
|
1.5 m (5 ft)
|
USB
|
5 Vdc
|
8 to 14 microns
|
125 ms
|
USB
|
No
|
Datalogging & configuration software
|
|
OS-MINI152-MA-HT $528.13
|
0°C (32°F) to 500°C (932°F)
|
15:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI152-MA-MT $489.74
|
0°C (32°F) to 250°C (482°F)
|
15:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI212-MA-HT $442.12
|
0°C (32°F) to 500°C (932°F)
|
2:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI212-MA-LT $468.68
|
-20°C (-4°F) to 100°C (212°F)
|
2:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI212-MA-MT $459.17
|
0°C (32°F) to 250°C (482°F)
|
2:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI302-MA-HT $647.03
|
0°C (32°F) to 500°C (932°F)
|
30:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI302-MA-LT $647.03
|
-20°C (-4°F) to 100°C (212°F)
|
30:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI302-MA-MT $935.25
|
0°C (32°F) to 250°C (482°F)
|
30:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI302-MA-XT $647.03
|
-20°C (-4°F) to 1000°C (1832°F)
|
30:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI802-MA-HT $727.79
|
0°C (32°F) to 500°C (932°F)
|
Close-Focus
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI802-MA-LT $793.00
|
-20°C (-4°F) to 100°C (212°F)
|
Close-Focus
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI802-MA-MT $736.05
|
0°C (32°F) to 250°C (482°F)
|
Close-Focus
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI802-MA-XT $750.51
|
-20°C (-4°F) to 1000°C (1832°F)
|
Close-Focus
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI-HA201-D-C4 $1,043.08
|
-20°C (-4°F) to 1000°C (1832°F)
|
20:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 180°C (356°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
RS485
|
No
|
Touch Screen Interface
|
|
OS-MINI-HA201-D-MA $970.94
|
-20°C (-4°F) to 1000°C (1832°F)
|
20:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 180°C (356°F)
|
No
|
Yes
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
|
OS-MINI-HA201-MA-HT $672.73
|
0°C (32°F) to 500°C (932°F)
|
20:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 180°C (356°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI-HA201-MA-XT $659.77
|
0 to 1000°C (32 to 1832°F)
|
20:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 180°C (356°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
None
|
|
OS-MINI22-SN151-MA-PT $775.39
|
100°C (212°F) to 400°C (752°F)
|
15:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN251-MA-MT $719.91
|
250°C (482°F) to 1000°C (1832°F)
|
25:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN751-MA-HT $764.92
|
450°C (842°F) to 2000°C (3632°F)
|
75:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-C4-HT $775.39
|
450°C (842°F) to 2000°C (3632°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1 m (3 ft)
|
RS485 Modbus
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
RS485
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-C4-MT $775.39
|
250°C (482°F) to 1000°C (1832°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1 m (3 ft)
|
RS485 Modbus
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
RS485
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-MA-HT $707.38
|
450°C (842°F) to 2000°C (3632°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-MA-MT $707.38
|
250°C (482°F) to 1000°C (1832°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI212-D-MA-PMCE-12 $831.26
|
-20°C (-4°F) to 1000°C (1832°F)
|
2:1
|
±1% rdg or 1°C (1.8°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.2-1
|
12 m (39 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
8 to 14 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
|
OS-MINI22-SN151-D-MA-PT $911.42
|
100°C (212°F) to 400°C (752°F)
|
15:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
|
OS-MINI22-SN251-D-MA-HT $679.66
|
450°C (842°F) to 2000°C (3632°F)
|
25:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN251-D-MA-MT $666.56
|
250°C (482°F) to 1000°C (1832°F)
|
25:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN751-D-C4-MT $938.61
|
250°C (482°F) to 1000°C (1832°F)
|
75:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
RS485
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN751-D-MA-HT $1,225.19
|
450°C (842°F) to 2000°C (3632°F)
|
75:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN751-D-MA-MT $938.61
|
250°C (482°F) to 1000°C (1832°F)
|
75:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-D-C4-HT $1,060.72
|
450°C (842°F) to 2000°C (3632°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
RS485
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-D-C4-MT $993.04
|
250°C (482°F) to 1000°C (1832°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
RS485 Modbus, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
RS485
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-D-MA-HT $1,279.99
|
450°C (842°F) to 2000°C (3632°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN801-D-MA-MT $993.04
|
250°C (482°F) to 1000°C (1832°F)
|
Close-Focus
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1 m (3 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN151-MA-PT-CE30 $1,095.78
|
100°C (212°F) to 400°C (752°F)
|
15:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
No
|
0.1-1
|
30 m (98 ft)
|
4 to 20 mA
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
IP 65 Rated
|
|
OS-MINI22-SN151-D-MA-PT-CE5 $1,296.32
|
100°C (212°F) to 400°C (752°F)
|
15:1
|
±1% rdg or 2°C (3.5°F)
|
0°C (32°F) to 60°C (140°F)
|
No
|
Yes
|
0.1-1
|
5 m (16 ft)
|
4 to 20 mA, 2 alarm relays output
|
24 Vdc
|
2 to 2.6 microns
|
240 ms
|
None
|
No
|
Touch Screen Interface
|
You can request the necessary certificates, documentation, instructions and user guide for OMEGA OS-MINI using the special form.
You can buy OMEGA OS-MINI in UAE at a price starting from 345 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. OMEGA OS-MINI price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
