Multi-channel IR Sensor with optional touch screen display, -20 to 1000°C temperature range, RS485 Modbus output, IP65 rated housing, create 6-channel system with alarms.
Made in USA. brand OMEGA, model OS-MINIHUB
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $365
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The OS-MINIHUB is an industrial infrared temperature monitoring system, with miniature sensing heads and optional display modules. OS-MINIHUB sensors are designed to measure the surface temperature of non-reflective materials in industrial applications, from -20 to 1000°C (-4 to 1832°F). They are sealed to NEMA 4 (IP65), built from 316 stainless steel, and fully tested to industrial EMC standards.
They can measure food, paper, thick plastics, asphalt, paint, bulk materials and organic materials, as well as most dirty, rusty or oily surfaces.
Robust
OS-MINIHUB sensors have an operating temperature rating of up to 120°C (248°F) with no need for cooling.
Compact
The sensors measure just 45 mm (1.7″”) long (plus cable gland), so they can fit into the smallest of spaces.
Configurable

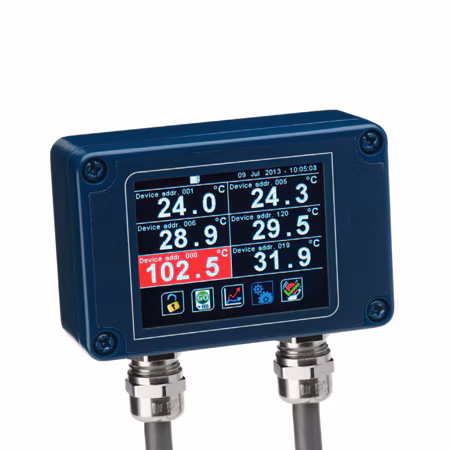

Up to 6 sensors can be connected to the optional TSD600 interface module, which provides temperature display, configuration, and high-capacity data logging to a MicroSD Card. Analog and relay outputs are available via separate DIN rail mounted modules.
Low Cost
With up to 6 sensors connected to one TSD600, the OS-MINIHUB is an ideal low-cost non-contact temperature measurement system.
Networkable
To measure more than 6 locations, OS-MiniHUB sensors and TSD600 sub-networks may be connected to an RS485 Modbus SCADA system or PLC. It is possible to measure the temperature of hundreds or thousands of locations on the same network.
Applications
The OS-MINIHUB may be installed as a new temperature monitoring system, or integrated into an existing Modbus network. With two Modbus interfaces, the TSD600 makes an ideal local display for a group of sensors as part of a larger system. The OS-MINIHUB-JB6 junction box makes it easy to connect the system together. Never miss a critical temperature event. In condition monitoring applications, the OS-MiniHUB system is an always-on solution that can replace manual checks with a handheld thermometer or expensive thermal imager.
Typical Applications
Curing Ovens Fiberglass impregnated with epoxy is cured in an oven to increase strength. OS-MiniHUB sensors are placed inside the oven at up to 120°C (248°F), to build-up a temperature profile at many points on the entire surface of the workpiece, and to communicate the measured temperature to the heating system that controls the hot air blowers in the oven. Industries include boatbuilding and aerospace as well as many others.
Industrial Bakeries
Check the temperature profile of bakery products at multiple points along a conveyor oven.
Corrugated Board Manufacturing
Monitor the web temperature along an entire corrugator, with local displays for each section of the production line, and centralized monitoring in the control room. Sensors withstand 120°C (248°F), and can be used in hightemperature areas such as single facers without cooling.
Power Distribution
Monitor the temperature of bulbar joints in switchgear cabinets. Hundreds or even thousands of points can be monitored on the same network using the OS-MiniHUB system.
Automotive
A large system of OS-MiniHUB sensors can monitor the paint curing process at several points. Monitor temperatures around the entire vehicle in environmental test chambers.
Condition Monitoring
A network of OS-MiniHUB sensors can monitor all the bearing temperatures on a machine, a runout table, or the whole factory. The OS-MiniHUB is ideal for measuring the temperature of all painted metal surfaces.
Infrared Curing
Arrays of sensors fitted on a rig of infrared curing lamps ensure an even temperature profile along the part being cured. Surface coatings, paint and epoxy are ideal target materials, among many others.
Gas Cylinder Filling
Monitor temperatures to improve repeatability in the filled volume and improve filling efficiency. The temperature of every cylinder on a filling rig is easily monitored with no need to manually move contact probes.
| Product Number | Process Temprature Range | Field of View | Accuracy @ Ambient | Operating Temprature range | Laser Output | Built in Display | Emissivity | Cable Length | Output | Supply Voltage | Spectral Response | Response Time | Communication Protocol | Intrisically Safe | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OS-MINIHUB-SN21 $317.60
|
-20°C (-4°F) to 1000°C (1832°F)
|
2:1
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 120°C (248°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
RS 485 Modbus
|
6 to 28 Vdc
|
8 to 14 microns
|
125 ms
|
Modbus
|
No
|
Optional touch-screen display
|
|
OS-MINIHUB-SN201 $364.67
|
-20°C (-4°F) to 1000°C (1832°F)
|
20:1
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 120°C (248°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
RS 485 Modbus
|
6 to 28 Vdc
|
8 to 14 microns
|
125 ms
|
Modbus
|
No
|
Optional touch-screen display
|
|
OS-MINIHUB-SN801 $453.17
|
-20°C (-4°F) to 1000°C (1832°F)
|
8:1
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 120°C (248°F)
|
No
|
No
|
0.2-1
|
1 m (3 ft)
|
RS 485 Modbus
|
6 to 28 Vdc
|
8 to 14 microns
|
125 ms
|
Modbus
|
No
|
Optional touch-screen display
|
