High speed IR sensor with optional touch screen display, 0 to 500°C temperature range, adjustable emissivity, laser sighting and for small targets down to 1.6 mm diameter.
Made in USA. brand OMEGA, model OS-PC
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $1 815
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

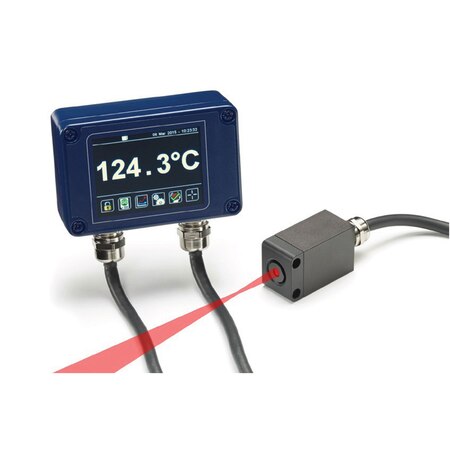

The OS-PC cube is an infrared pyrometer with an extremely fast response time and a very small measurement area size. It is available with or without the OS-PC-TSD touch screen interface. The sensor is designed for applications where an extremely fast response time is required, or where the object to be measured is very small. It is an ideal temperature sensor for blow molding preform measurement, as well as applications in the food industry, laboratories, and many others.
| Product Number | Process Temprature Range | Field of View | Accuracy @ Ambient | Operating Temprature range | Laser Output | Built in Display | Emissivity | Cable Length | Output | Supply Voltage | Spectral Response | Response Time | Communication Protocol | Intrisically Safe | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OS-PC16-2M-1V $1,816.67
|
0°C (32°F) to 500°C (932°F)
|
Min 0.06 in spot @ 1.4 in
|
±1% rdg or 3°C (5.4°F)
|
0°C (32°F) to 50°C (122°F)
|
Yes
|
No
|
0.3-1
|
6 ft
|
4 to 20 mA,0 to 1 Vdc, 0 to 20 mA, mV/°C
|
12 to 24 Vdc
|
2-7 micron
|
10 ms
|
RS232 Modbus RTU
|
No
|
High Speed
|
|
OS-PC30-2M-1V $1,781.67
|
0°C (32°F) to 500°C (932°F)
|
Min 0.12 in spot @ 2.8 in
|
±1% rdg or 3°C (5.4°F)
|
0°C (32°F) to 50°C (122°F)
|
Yes
|
No
|
0.3-1
|
6 ft
|
4 to 20 mA,0 to 1 Vdc, 0 to 20 mA, mV/°C
|
12 to 24 Vdc
|
2-7 micron
|
10 ms
|
RS232 Modbus RTU
|
No
|
High Speed
|
|
OS-PC55-2M-1V $1,781.67
|
0°C (32°F) to 500°C (932°F)
|
Min 0.2 in spot @ 3.9 in
|
±1% rdg or 3°C (5.4°F)
|
0°C (32°F) to 50°C (122°F)
|
Yes
|
No
|
0.3-1
|
6 ft
|
4 to 20 mA,0 to 1 Vdc, 0 to 20 mA, mV/°C
|
12 to 24 Vdc
|
2-7 micron
|
10 ms
|
RS232 Modbus RTU
|
No
|
High Speed
|
|
OS-PC30-2M-10V $2,086.63
|
0°C (32°F) to 500°C (932°F)
|
Min 0.12 in spot @ 2.8 in
|
±1% rdg or 3°C (5.4°F)
|
0°C (32°F) to 50°C (122°F)
|
Yes
|
No
|
0.3-1
|
6 ft
|
4 to 20 mA,0 to 1 Vdc, 0 to 20 mA, mV/°C, 0 to 10 Vdc
|
12 to 24 Vdc
|
2-7 micron
|
10 ms
|
RS232 Modbus RTU
|
No
|
High Speed
|
|
OS-PCF35-2M-1V $4,906.65
|
0°C (32°F) to 500°C (932°F)
|
Min 0.2 in spot @ 3.9 in
|
±1% rdg or 3°C (5.4°F)
|
0°C (32°F) to 50°C (122°F)
|
Yes
|
No
|
0.3-1
|
6 ft
|
4 to 20 mA,0 to 1 Vdc, 0 to 20 mA, mV/°C
|
12 to 24 Vdc
|
2-7 micron
|
1 ms
|
RS232 Modbus RTU
|
No
|
High Speed
|
|
OS-PCF70-2M-1V $4,644.43
|
0°C (32°F) to 500°C (932°F)
|
Min 0.3 in spot @ 7.9 in
|
±1% rdg or 3°C (5.4°F)
|
0°C (32°F) to 50°C (122°F)
|
Yes
|
No
|
0.3-1
|
6 ft
|
4 to 20 mA,0 to 1 Vdc, 0 to 20 mA, mV/°C
|
12 to 24 Vdc
|
2-7 micron
|
1 ms
|
RS232 Modbus RTU
|
No
|
High Speed
|
You can request the necessary certificates, documentation, instructions and user guide for OMEGA OS-PC using the special form.
You can buy OMEGA OS-PC in UAE at a price starting from 1815 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. OMEGA OS-PC price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
