IR sensor with RS232 output, optional display options, -18 to 538°C temperature range, 5 output options, adjustable emissivity, 6:1 field of view and NEMA 4 IP65 housing.
Made in USA. brand OMEGA, model OS100E
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $560
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

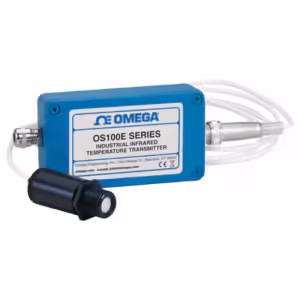

OMEGA’s OS100E Series miniature infrared sensors/transmitters measure a temperature range of -18 to 538°C (0 to 1000°F). They consist of a remotely mounted infrared sensor head connected to a high-performance, microprocessor-based signal conditioner. The miniature sensor head is ideal for measuring temperature in confined, hard-to-reach places and harsh environments. The sensor head is connected to the main electronics housing via a 1.8 m (6′) shielded cable. The signal conditioner’s main electronics are mounted in a rugged NEMA 4 (IP65) rated die-cast aluminum housing. Model OS102E includes a built-in LED display that is switchable between °C and °F. Standard features include adjustable emissivity, field-adjustable alarm output, and RS232 PC interface. The unit has analog outputs such as 4 to 20 mA, 0/5 Vdc, 0/10 Vdc, 1 mV/degree, and Type K thermocouple.
Adjustable emissivity from 0.1 to 1 makes the OS100E Series suitable for a wide variety of different material surfaces. Applications such as asphalt, brass, brick, paints/lacquers and much more can be measured. Thermocouple outputs allow for easy convenient replacement of thermocouple contact sensors and don’t require external power source.
| Product Number | Process Temperature Range | Field of View | Accuracy @ Ambient | Operating Temprature range | Laser Output | Built in Display | Emissivity | Cable Length | Output | Supply Voltage | Spectral Response | Response Time | Communication Protocol | Intrisically Safe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OS101E-K $388.93
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
Thermocouple Type K
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-K $648.21
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
Thermocouple Type K
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-MA $493.01
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
4 to 20 mA
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-MV $361.54
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
1 mV/deg
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-V1 $388.93
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
0 to 5 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-V2 $388.93
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
0 to 10 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-MA $614.39
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
4 to 20 mA
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-MV $492.39
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
1 mV/deg
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-V1 $492.39
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
0 to 5 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-V2 $538.67
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
0 to 10 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-K-HT $560.11
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
Thermocouple Type K
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-K-HT $804.76
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
Thermocouple Type K
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-MA-HT $789.17
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
4 to 20 mA
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-MV-HT $560.11
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
1 mV/deg
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-V1-HT $560.11
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
0 to 5 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS101E-V2-HT $602.55
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
No
|
0.1-1
|
1.8 m (6 ft)
|
0 to 10 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-MA-HT $804.76
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
4 to 20 mA
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-MV-HT $687.40
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
1 mV/deg
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-V1-HT $687.40
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
0 to 5 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
|
OS102E-V2-HT $739.48
|
-18°C (0°F) to 538°C (1000°F)
|
6:1
|
±2% rdg or 2.2°C (4°F)
|
0°C (32°F) to 85°C (185°F)
|
No
|
Yes
|
0.1-1
|
1.8 m (6 ft)
|
0 to 10 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
100 ms
|
RS232
|
No
|
You can request the necessary certificates, documentation, instructions and user guide for OMEGA OS100E using the special form.
You can buy OMEGA OS100E in UAE at a price starting from 560 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. OMEGA OS100E price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
