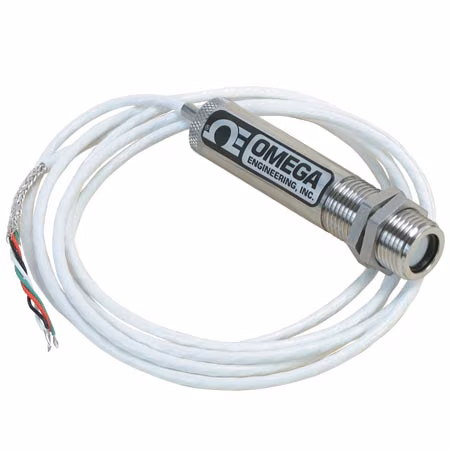

Miniature IR sensor with optional laser, -18 to 538°C temperature range, 6 output options, adjustable emissivity, 6:1 or 10:1 field of view and NEMA 4 IP65 and IP66 housing.
Made in USA. brand OMEGA, model OS36SM
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $160
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
6 ft, Thermocouple Type K ouput , Miniature Non-Contact Infrared Temperature Sensor/Transmitter
he Omega OS130A-Series offers a low cost, high-performance infrared (IR) sensor/transmitter in a 316 stainless steel housing. These IR sensors are ideal for hard-to-reach areas, confined spaces, or harsh environments. The 6 different output options provide simple interfacing directly to meters, controllers, data loggers, recorders, computer boards, and PLC’s. The units come standard with 2 hex nuts, 1.8 m (6′) shielded cable for power and output connections, and an operator’s manual.
The OS137A models feature adjustable emissivity 0.5 to 1, field of view 10 to 1, and adjustable alarm set points and voltage output to trigger external relays. The stainless steel housing makes this sensor durable and long lasting and the OS137A models have a NEMA IP65 rating.
The OS136A models have a NEMA IP66 rating and remain robust within many different environments. These models have an optical field of view of 6 to 1 with a fixed emissivity of 0.95.
| Product Number | Process Temprature Range | Field of View | Accuracy @ Ambient | Operating Temprature range | Laser Output | Built in Display | Emissivity | Cable Length | Output (changed from Analog Output) | Supply Voltage | Spectral Response | Response Time | Intrisically Safe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OS136A-1-V1 $353.28
|
-18°C (0°F) to 202°C (400°F)
|
61
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
0 to 5 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-1-K $384.03
|
-18°C (0°F) to 202°C (400°F)
|
61
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
Thermocouple Type K
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-2-K $384.03
|
149°C (300°F) to 538°C (1000°F)
|
61
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
Thermocouple Type K
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-1-K $568.18
|
0°C (32°F) to 100°C (212°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
Thermocouple Type K
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-2-K $595.68
|
-18°C (0°F) to 260°C (500°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
Thermocouple Type K
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-3-K $578.90
|
-18°C (0°F) to 538°C (1000°F)
|
101
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
Thermocouple Type K
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-1-MA $353.28
|
-18°C (0°F) to 202°C (400°F)
|
61
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-1-V2 $353.28
|
-18°C (0°F) to 202°C (400°F)
|
61
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
0 to 10 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-2-MA $353.28
|
149°C (300°F) to 538°C (1000°F)
|
61
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-2-V1 $353.28
|
149°C (300°F) to 538°C (1000°F)
|
61
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
0 to 5 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-2-V2 $353.28
|
149°C (300°F) to 538°C (1000°F)
|
61
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
0 to 10 Vdc
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-1-MA $568.18
|
0°C (32°F) to 100°C (212°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
4 to 20 mA
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-1-V1 $633.31
|
0°C (32°F) to 100°C (212°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
0 to 5 Vdc
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-1-V2 $600.26
|
0°C (32°F) to 100°C (212°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
0 to 10 Vdc
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-2-MA $547.96
|
-18°C (0°F) to 260°C (500°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
4 to 20 mA
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-2-V1 $578.90
|
-18°C (0°F) to 260°C (500°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
0 to 5 Vdc
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-2-V2 $550.64
|
-18°C (0°F) to 260°C (500°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
0 to 10 Vdc
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-3-MA $547.96
|
-18°C (0°F) to 538°C (1000°F)
|
101
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
4 to 20 mA
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-3-V1 $571.00
|
-18°C (0°F) to 538°C (1000°F)
|
10:1
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.5-1
|
6 ft
|
0 to 5 Vdc
|
12 to 24 Vdc
|
5.5 to 14 microns
|
150 ms
|
None
|
|
OS137A-3-V2 $578.90
|
-18°C (0°F) to 538°C (1000°F)
|
101
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
0 to 10 Vdc
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-1-MV-C $353.28
|
-18°C (0°F) to 202°C (400°F)
|
61
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
10 mV/°C
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-1-MV-F $353.28
|
-18°C (0°F) to 202°C (400°F)
|
61
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
10 mV/°F
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-2-MV-C $353.28
|
149°C (300°F) to 538°C (1000°F)
|
61
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
10 mV/°C
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS136A-2-MV-F $353.28
|
149°C (300°F) to 538°C (1000°F)
|
61
|
±3% rdg or 5.5°C (10°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.95
|
6 ft
|
10 mV/°F
|
12 to 24 Vdc
|
5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-1-MV-F $588.70
|
0°C (32°F) to 100°C (212°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
10 mV/°F
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
|
OS137A-2-MV-C $550.12
|
-18°C (0°F) to 260°C (500°F)
|
101
|
±3% rdg or 4.4°C (8°F)
|
0°C (32°F) to 70°C (158°F)
|
Optional
|
No
|
0.5-1
|
6 ft
|
10 mV/°C
|
12 to 24 Vdc @ 50 mA
|
5.5 to 14 microns
|
150 msec, 0 to 63% of final value
|
No
|
You can request the necessary certificates, documentation, instructions and user guide for OMEGA OS36SM using the special form.
You can buy OMEGA OS36SM in UAE at a price starting from 160 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. OMEGA OS36SM price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
