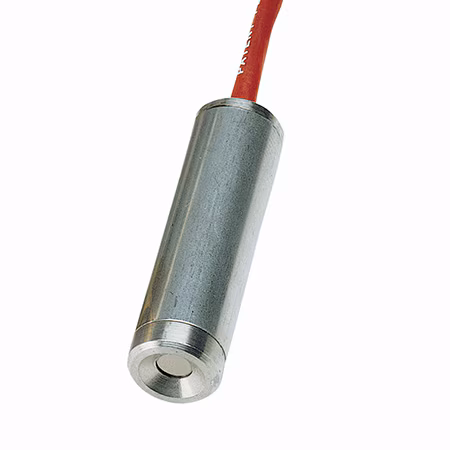

Stainless Steel Housing IR sensor with Thermocouple Outputs
Made in USA. brand OMEGA, model OS36
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $401
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The OS36 is an infrared sensor with thermocouple outputs with the advantages of non-contact temperature measurement. The OS36 produces a thermocouple output signal that can be used with any standard J, K, T or E thermocouple instrumentation. The thermocouple output option elmiminates the need for external power sources. The infrared sensor’s accuracy is specified for target emissivity 0.9. For other emissivity values, readings can be corrected to provide accurate measurements. Even without correction, the readings are extremely repeatable, for use in process and quality control applications.
The OS36 has a calibrated sensing range of -18 to 250°C (0 to 480°F) and operating temperature range of -18 to 85°C (0 to 185°F). These sensors can achieve higher ambient temperature ratings with the OS36-APC up to 538°C (1000°F) with water cooling or 400°C (750°F) with air-cooling. The housing is hermetically sealed and NEMA 4, IP65 and IP67 rated.
The OS36 is designed for applications such as rough steel plates, brick, paints, quartz, water, asbestos,unpolished stainless steel wood and more.
| Product Number | Process Temprature Range | Field of View | Accuracy @ Ambient | Operating Temprature range | Laser Output | Built in Display | Emissivity | Cable Length | Output | Spectral Response | Response Time | Intrisically Safe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OS36-E-50F $400.51
|
-18°C (0°F) to 30°C (85°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-80F $400.51
|
0°C (32°F) to 50°C (120°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-50F $423.73
|
-18°C (0°F) to 30°C (85°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-80F $410.59
|
0°C (32°F) to 50°C (120°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-50F $408.97
|
-18°C (0°F) to 30°C (85°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-80F $432.05
|
0°C (32°F) to 50°C (120°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-T-50F $402.68
|
-18°C (0°F) to 30°C (85°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type T
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-140F $402.68
|
20°C (70°F) to 90°C (190°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-180F $400.51
|
60°C (140°F) to 105°C (220°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-240F $408.97
|
80°C (180°F) to 120°C (250°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-280F $408.97
|
115°C (240°F) to 165°C (330°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-340F $400.51
|
140°C (280°F) to 190°C (370°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-440F $400.51
|
160°C (320°F) to 260°C (500°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-140F $432.05
|
20°C (70°F) to 90°C (190°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-180F $432.05
|
60°C (140°F) to 105°C (220°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-240F $408.97
|
80°C (180°F) to 120°C (250°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-280F $432.05
|
115°C (240°F) to 165°C (330°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-440F $408.97
|
160°C (320°F) to 260°C (500°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-140F $408.97
|
20°C (70°F) to 90°C (190°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-180F $423.73
|
60°C (140°F) to 105°C (220°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-240F $408.97
|
80°C (180°F) to 120°C (250°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-280F $432.05
|
115°C (240°F) to 165°C (330°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-440F $432.05
|
160°C (320°F) to 260°C (500°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-T-140F $388.65
|
20°C (70°F) to 90°C (190°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type T
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-E-98.6F $400.51
|
16°C (60°F) to 39°C (102°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type E
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-J-98.6F $402.68
|
16°C (60°F) to 39°C (102°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type J
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-K-98.6F $408.38
|
16°C (60°F) to 39°C (102°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 100°C (212°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-50F $448.23
|
-18°C (0°F) to 30°C (85°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-80F $448.03
|
0°C (32°F) to 50°C (120°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-140F $448.03
|
20°C (70°F) to 90°C (190°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-180F $448.03
|
60°C (140°F) to 105°C (220°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-240F $464.42
|
80°C (180°F) to 120°C (250°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-280F $448.03
|
115°C (240°F) to 165°C (330°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-340F $441.83
|
140°C (280°F) to 190°C (370°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-440F $448.03
|
160°C (320°F) to 260°C (500°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
|
OS36-RA-K-98.6F $448.03
|
16°C (60°F) to 39°C (102°F)
|
1:1
|
±2% range
|
-18°C (0°F) to 85°C (185°F)
|
No
|
No
|
0.9
|
1 m (3 ft)
|
Thermocouple Type K
|
6.5 to 14 microns
|
100 ms
|
No
|
You can request the necessary certificates, documentation, instructions and user guide for OMEGA OS36 using the special form.
You can buy OMEGA OS36 in UAE at a price starting from 401 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. OMEGA OS36 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
