Intrinsically safe IR sensor designed for hazardous environments, -20 to 1000°C temperature range, 316 stainless steel housing, IP65 rated and adjustable emissivity.
Made in USA. brand OMEGA, model OSAT
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $897
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

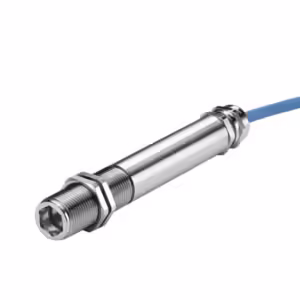

The OSAT is an intrinsically safe infrared pyrometer. It measures the temperature of surfaces in hazardous areas without contact, and provides a direct 4-20 mA output. It is certified to ATEX, IECEx and TIIS standards.The OSAT is a small and compact low cost option for temperature measurement in hazardous locations. It uses Intrinsic Safety as the method of protection, whereas explosion proof pyrometers typically have bulky, and expensive housings.
Petrochemical – condition monitoring
Bearing, gearbox and motor housing surface temperatures in refineries and chemical plants can be monitored without contact, eliminating the need to replace contact probes that are easily damaged by vibration.
Petrochemical – liquid storage and processing The sensor can be positioned in a Zone 0 environment such as the top of a tank of hazardous liquid or reactor, to measure the surface temperature of the liquid.
Paper
Dust in pulp, paper and packaging plants can create a fire and explosion hazard. The OSAT intrinsically safe pyrometer can be used for paper web temperature measurement and condition monitoring in ATEX and IECEx classified hazardous areas.
Coal conveyors
The OSAT fast 240 ms response time makes it ideal for measuring the surface temperature of coal on conveyors, as well as other bulk materials where there is an explosive dust hazard.
Gas cylinder filling
The surface temperature of cylinders of explosive gases is monitored with the OSAT as they are filled. The Group IIC, T4 classification makes it suitable for almost all gases including propane, butane, hydrogen and acetylene. The temperature of each cylinder is measured on the filling rig to help detect fault conditions in filling, to calculate the final filled volume (in conjunction with the pressure), to ensure the volume is repeatable, and to improve the filling rate.
Automotive painting
Solvents in automotive painting can create a gas explosion risk. The intrinsically safe OSAT may be used to monitor the temperature of containers and vessels, the surface temperature of liquids and powders, and the temperature of painted surfaces.
Offshore
The OSAT 316 stainless steel housing and intrinsically safe certification makes it well-suited for use on offshore platforms. As well as measuring the temperature of surfaces on the rig, it can be used to measure the temperature of the sea surface.
| Product Number | Process Temprature Range | Field of View | Accuracy @ Ambient | Operating Temprature range | Laser Output | Built in Display | Emissivity | Cable Length | Output | Supply Voltage | Spectral Response | Response Time | Communication Protocol | Intrisically Safe | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OSAT-151-HT-C-05 $823.63
|
0°C (32°F) to 500°C (932°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-HT-C-25 $982.04
|
0°C (32°F) to 500°C (932°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
82 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-LT-C-05 $879.38
|
-20°C (-4°F) to 100°C (212°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-LT-C-10 $921.34
|
-20°C (-4°F) to 100°C (212°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
33 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-LT-C-25 $1,048.80
|
-20°C (-4°F) to 100°C (212°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
82 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-MT-C-05 $896.66
|
0°C (32°F) to 250°C (482°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-MT-C-10 $880.19
|
0°C (32°F) to 250°C (482°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
33 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-MT-C-25 $1,048.80
|
0°C (32°F) to 250°C (482°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
82 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-XT-C-05 $823.63
|
0°C (32°F) to 1000°C (1832°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-151-XT-C-10 $1,371.63
|
0°C (32°F) to 1000°C (1832°F)
|
151
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
33 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-211-MT-C-05 $863.76
|
0°C (32°F) to 250°C (482°F)
|
21
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-211-MT-C-25 $1,203.53
|
0°C (32°F) to 250°C (482°F)
|
21
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
82 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-211-XT-C-10 $807.79
|
0°C (32°F) to 1000°C (1832°F)
|
21
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
33 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-LT-C-05 $910.76
|
-20°C (-4°F) to 100°C (212°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-LT-C-10 $950.34
|
-20°C (-4°F) to 100°C (212°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
33 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-LT-C-25 $1,090.16
|
-20°C (-4°F) to 100°C (212°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
82 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-MT-C-05 $995.38
|
0°C (32°F) to 250°C (482°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-MT-C-10 $1,018.15
|
0°C (32°F) to 250°C (482°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
33 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-XT-C-05 $910.76
|
0°C (32°F) to 1000°C (1832°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-XT-C-10 $950.34
|
0°C (32°F) to 1000°C (1832°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
33 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-301-XT-C-25 $1,145.60
|
0°C (32°F) to 1000°C (1832°F)
|
301
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
82 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-801-LT-C-25 $1,164.18
|
-20°C (-4°F) to 100°C (212°F)
|
Close-Focus
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
82 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
|
OSAT-801-MT-C-05 $1,005.78
|
0°C (32°F) to 250°C (482°F)
|
Close-Focus
|
±1% rdg or 1°C(1.8°F)
|
0°C (32°F) to 70°C (158°F)
|
No
|
No
|
0.2-1
|
16 ft
|
4 to 20 mA
|
12 to 24 Vdc
|
8 to 14 microns
|
240 ms
|
USB
|
Yes
|
IP 65 Rated , OffShore application
|
You can request the necessary certificates, documentation, instructions and user guide for OMEGA OSAT using the special form.
You can buy OMEGA OSAT in UAE at a price starting from 897 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. OMEGA OSAT price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
