OMEGA PTRA-PTRM

Photo OMEGA PTRA-PTRM Specifications OMEGA PTRA-PTRM Ordering OMEGA PTRA-PTRM User Manual for OMEGA PTRA-PTRM Related instruments to OMEGA PTRA-PTRM

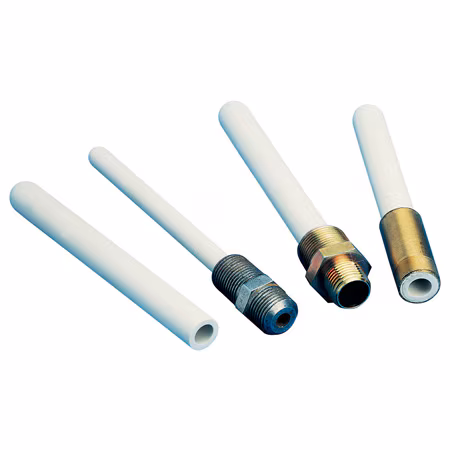

OMEGA PTRA-PTRM Ceramic Protection Tubes with Optional Fittings

OMEGA PTRA-PTRM Ceramic Protection Tubes with Optional Fittings

Ceramic Protection Tubes are made from MEGATITE™ 450 and MEGATITE™ 300 which protect the sensor at temperatures as high as 1950°C (3540°F). Optional fittings are available.

  • Maximum Service Temperature to 1700°C (3092°F) for OMEGATITE™ 450
  •  Standard Lengths of 12, 18 and 24 Inches
  •  Tubes Supplied Standardly Without Fittings. Consult Sales for Optional Fittings.
			int(19256)
NULL

Made in USA. brand OMEGA, model PTRA-PTRM

International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.

Retail price from $136

Available

Available

Advantages

Only the best I&C brands

Our company is a UAE supplier of control and measuring instruments from well-known world brands

Advantages

Discounts for organisations

We sell high-tech equipment at best prices. We provide really advantageous conditions for partners

Advantages

Fast delivery across the Middle East

Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries

Advantages

Professional advice on device selection

Our specialists are ready to advise you on any technical question. We can find an analogue of any device

Description of OMEGA PTRA-PTRM



Technical specifications of OMEGA PTRA-PTRM

Ceramic Thermocouple Protection Tubes

PTRA
OMEGATITE™ 450		 PTRM
OMEGATITE™ 300		 Dimensions
Model No. Model No. Inside Dia.
mm (in.)		 Outside Dia.
mm (in.)		 Tube Length*
mm (inches)
PTRA-11618-12
PTRA-11618-18
PTRA-11618-24		 PTRM-11618-12
PTRM-11618-18
PTRM-11618-24		 1.5 (1/16″) 3.0 (1/8″) 300 (12″)
450 (18″)
600 (24″)
PTRA-564532-12
PTRA-564532-18
PTRA-564532-24		 PTRM-564532-12
PTRM-564532-18
PTRM-564532-24		 2.0 (5/64″) 4.0 (5/32″) 300 (12″)
450 (18″)
600 (24″)
PTRA-53214-12
PTRA-53214-18
PTRA-53214-24		 PTRM-53214-12
PTRM-53214-18
PTRM-53214-24		 4.0 (5/32″) 6.0 (1/4″) 300 (12″)
450 (18″)
600 (24″)
PTRA-31614-12
PTRA-31614-18
PTRA-31614-24		 PTRM-31614-12
PTRM-31614-18
PTRM-31614-24		 4.5 (3/16″) 6.0 (1/4″) 300 (12″)
450 (18″)
600 (24″)
PTRA-316516-12
PTRA-316516-18
PTRA-316516-24		 PTRM-316516-12
PTRM-316516-18
PTRM-316516-24		 4.5 (3/16″) 8.0 (5/16″) 300 (12″)
450 (18″)
600 (24″)
PTRA-1438-12
PTRA-1438-18
PTRA-1438-24		 PTRM-1438-12
PTRM-1438-18
PTRM-1438-24		 6.0 (1/4″) 9.5 (3/8″) 300 (12″)
450 (18″)
600 (24″)
PTRA-516716-12
PTRA-516716-18
PTRA-516716-24		 8.0 (5/16″) 11.0 (7/16″) 300 (12″)
450 (18″)
600 (24″)
PTRA-51612-12
PTRA-51612-18
PTRA-51612-24		 PTRM-51612-12
PTRM-51612-18
PTRM-51612-24		 8.0 (5/16″) 12.5 (1/2″) 300 (12″)
450 (18″)
600 (24″)
PTRA-3812-12
PTRA-3812-18
PTRA-3812-24		 PTRM-3812-12
PTRM-3812-18
PTRM-3812-24		 9.5 (3/8″) 12.5 (1/2″) 300 (12″)
450 (18″)
600 (24″)
PTRA-7161116-12
PTRA-7161116-18
PTRA-7161116-24		 PTRM-7161116-12
PTRM-7161116-18
PTRM-7161116-24		 11.0 (7/16″) 17.5 (11/16″) 300 (12″)
450 (18″)
600 (24″)
PTRA-1234-12
PTRA-1234-18
PTRA-1234-24		 PTRM-1234-12
PTRM-1234-18
PTRM-1234-24		 12.5 (1/2″) 19.0 (3/4″) 300 (12″)
450 (18″)
600 (24″)
PTRA-5878-12
PTRA-5878-18
PTRA-5878-24		 PTRM-5878-12
PTRM-5878-18
PTRM-5878-24		 16.0 (5/8″) 22.0 (7/8″) 300 (12″)
450 (18″)
600 (24″)
PTRA-341-12
PTRA-341-18
PTRA-341-24		 PTRM-341-12
PTRM-341-18
PTRM-341-24		 19.0 (3/4″) 25.5 (1″) 300 (12″)
450 (18″)
600 (24″)
PTRA-78118-12
PTRA-78118-18
PTRA-78118-24		 PTRM-78118-12
PTRM-78118-18
PTRM-78118-24		 22.0 (7/8″) 28.5 (1 1/8″) 300 (12″)
450 (18″)
600 (24″)
PTRA-1114-12
PTRA-1114-18
PTRA-1114-24		 PTRM-1114-12
PTRM-1114-18
PTRM-1114-24		 25.5 (1″) 32.0 (1 1/4″) 300 (12″)
450 (18″)
600 (24″)
PTRA-5MM7MM-12
PTRA-5MM7MM-18
PTRA-5MM7MM-24		 5 mm 7 mm 300 (12″)
450 (18″)
600 (24″)
Expand Table

*Length: The tube lengths shown are standard lengths for a tube without any fittings. Special lengths are also available. Consult Sales.
Expand Table

How to buy OMEGA PTRA-PTRM

Product Number Material Maximum Temperature Rating Head Connection Size Process Connection Length Outer Diameter Inner Diameter Sensing End

PTRA-316516-12

$63.60
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.312 in
0.187 in
Closed

PTRA-341-12

$62.38
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
1 in
0.750 in
Closed

PTRA-341-18

$95.00
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
1 in
0.750 in
Closed

PTRA-341-24

$119.39
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
1 in
0.750 in
Closed

PTRM-341-12

$47.86
Mullite
1400°C (2552°F)
None
None
12 in
1 in
0.750 in
Closed

PTRM-341-18

$73.75
Mullite
1400°C (2552°F)
None
None
18 in
1 in
0.750 in
Closed

PTRM-341-24

$97.14
Mullite
1400°C (2552°F)
None
None
24 in
1 in
0.750 in
Closed

PTRA-1114-12

$85.50
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
1.250 in
1 in
Closed

PTRA-1114-18

$125.77
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
1.250 in
1 in
Closed

PTRA-1114-24

$167.69
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
1.250 in
1 in
Closed

PTRA-1234-12

$46.70
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.750 in
0.500 in
Closed

PTRA-1234-18

$77.80
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.750 in
0.500 in
Closed

PTRA-1234-24

$93.39
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.750 in
0.500 in
Closed

PTRA-1438-12

$42.64
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.375 in
0.250 in
Closed

PTRA-1438-18

$63.60
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.375 in
0.250 in
Closed

PTRA-1438-24

$85.27
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.375 in
0.250 in
Closed

PTRA-31614-3

$74.99
Alumina( 99.8%)
1700°C (3092°F)
None
None
3 in
0.250 in
0.187 in
Closed

PTRA-3812-12

$46.01
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.500 in
0.375 in
Closed

PTRA-3812-18

$66.17
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.500 in
0.375 in
Closed

PTRA-3812-24

$88.76
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.500 in
0.375 in
Closed

PTRA-53214-3

$45.44
Alumina( 99.8%)
1700°C (3092°F)
None
None
3 in
0.250 in
0.156 in
Closed

PTRA-5878-12

$62.38
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.875 in
0.625 in
Closed

PTRA-5878-18

$90.96
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.875 in
0.625 in
Closed

PTRA-5878-24

$119.39
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.875 in
0.625 in
Closed

PTRM-1114-12

$67.07
Mullite
1400°C (2552°F)
None
None
12 in
1.250 in
1 in
Closed

PTRM-1114-18

$100.43
Mullite
1400°C (2552°F)
None
None
18 in
1.250 in
1 in
Closed

PTRM-1114-24

$135.55
Mullite
1400°C (2552°F)
None
None
24 in
1.250 in
1 in
Closed

PTRM-1234-12

$24.47
Mullite
1400°C (2552°F)
None
None
12 in
0.750 in
0.500 in
Closed

PTRM-1234-18

$35.31
Mullite
1400°C (2552°F)
None
None
18 in
0.750 in
0.500 in
Closed

PTRM-1234-24

$45.94
Mullite
1400°C (2552°F)
None
None
24 in
0.750 in
0.500 in
Closed

PTRM-1438-12

$21.44
Mullite
1400°C (2552°F)
None
None
12 in
0.375 in
0.250 in
Closed

PTRM-1438-18

$32.26
Mullite
1400°C (2552°F)
None
None
18 in
0.375 in
0.250 in
Closed

PTRM-1438-24

$40.39
Mullite
1400°C (2552°F)
None
None
24 in
0.375 in
0.250 in
Closed

PTRM-3812-12

$21.03
Mullite
1400°C (2552°F)
None
None
12 in
0.500 in
0.375 in
Closed

PTRM-3812-18

$31.64
Mullite
1400°C (2552°F)
None
None
18 in
0.500 in
0.375 in
Closed

PTRM-3812-24

$41.85
Mullite
1400°C (2552°F)
None
None
24 in
0.500 in
0.375 in
Closed

PTRM-5878-12

$51.64
Mullite
1400°C (2552°F)
None
None
12 in
0.875 in
0.625 in
Closed

PTRM-5878-18

$78.02
Mullite
1400°C (2552°F)
None
None
18 in
0.875 in
0.625 in
Closed

PTRM-5878-24

$102.82
Mullite
1400°C (2552°F)
None
None
24 in
0.875 in
0.625 in
Closed

PTRA-11618-12

$52.54
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.125 in
0.062 in
Closed

PTRA-11618-18

$77.28
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.125 in
0.062 in
Closed

PTRA-11618-24

$103.04
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.125 in
0.062 in
Closed

PTRA-1234-6-2

$103.48
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
6 in
0.750 in
0.500 in
Closed

PTRA-18316-12

$44.48
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.187 in
0.125 in
Closed

PTRA-18316-24

$85.80
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.187 in
0.125 in
Closed

PTRA-31614-12

$42.64
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.250 in
0.187 in
Closed

PTRA-31614-18

$63.60
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.250 in
0.187 in
Closed

PTRA-31614-24

$85.27
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.250 in
0.187 in
Closed

PTRA-51612-12

$42.64
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.500 in
0.312 in
Closed

PTRA-51612-18

$63.60
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.500 in
0.312 in
Closed

PTRA-51612-24

$83.63
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.500 in
0.312 in
Closed

PTRA-53214-12

$42.64
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.250 in
0.156 in
Closed

PTRA-53214-18

$63.60
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.250 in
0.156 in
Closed

PTRA-53214-24

$85.27
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.250 in
0.156 in
Closed

PTRA-78118-12

$77.01
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
1.125 in
0.875 in
Closed

PTRA-78118-18

$116.24
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
1.125 in
0.875 in
Closed

PTRA-78118-24

$148.87
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
1.125 in
0.875 in
Closed

PTRM-11618-12

$21.44
Mullite
1400°C (2552°F)
None
None
12 in
0.125 in
0.062 in
Closed

PTRM-11618-18

$32.26
Mullite
1400°C (2552°F)
None
None
18 in
0.125 in
0.062 in
Closed

PTRM-11618-24

$41.46
Mullite
1400°C (2552°F)
None
None
24 in
0.125 in
0.062 in
Closed

PTRM-31614-12

$21.44
Mullite
1400°C (2552°F)
None
None
12 in
0.250 in
0.187 in
Closed

PTRM-31614-18

$32.26
Mullite
1400°C (2552°F)
None
None
18 in
0.250 in
0.187 in
Closed

PTRM-31614-24

$41.85
Mullite
1400°C (2552°F)
None
None
24 in
0.250 in
0.187 in
Closed

PTRM-51612-12

$21.03
Mullite
1400°C (2552°F)
None
None
12 in
0.500 in
0.312 in
Closed

PTRM-51612-18

$32.26
Mullite
1400°C (2552°F)
None
None
18 in
0.500 in
0.312 in
Closed

PTRM-51612-24

$41.85
Mullite
1400°C (2552°F)
None
None
24 in
0.500 in
0.312 in
Closed

PTRM-53214-12

$20.29
Mullite
1400°C (2552°F)
None
None
12 in
0.250 in
0.156 in
Closed

PTRM-53214-18

$31.64
Mullite
1400°C (2552°F)
None
None
18 in
0.250 in
0.156 in
Closed

PTRM-53214-24

$42.67
Mullite
1400°C (2552°F)
None
None
24 in
0.250 in
0.156 in
Closed

PTRM-78118-12

$73.03
Mullite
1400°C (2552°F)
None
None
12 in
1.125 in
0.875 in
Closed

PTRM-78118-18

$108.17
Mullite
1400°C (2552°F)
None
None
18 in
1.125 in
0.875 in
Closed

PTRM-78118-24

$146.08
Mullite
1400°C (2552°F)
None
None
24 in
1.125 in
0.875 in
Closed

PTRA-1234-12-2

$105.51
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
12 in
0.750 in
0.500 in
Closed

PTRA-1234-18-2

$143.72
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
18 in
0.750 in
0.500 in
Closed

PTRA-1234-24-2

$156.98
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
24 in
0.750 in
0.500 in
Closed

PTRA-1234-36-2

$250.84
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
36 in
0.750 in
0.500 in
Closed

PTRA-1438-12-1

$103.03
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
0.375 in
0.250 in
Closed

PTRA-1438-12-2

$110.79
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
12 in
0.375 in
0.250 in
Closed

PTRA-1438-18-1

$127.12
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
18 in
0.375 in
0.250 in
Closed

PTRA-1438-24-1

$131.99
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
24 in
0.375 in
0.250 in
Closed

PTRA-1438-24-2

$158.85
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
24 in
0.375 in
0.250 in
Closed

PTRA-316516-18

$62.38
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.312 in
0.187 in
Closed

PTRA-316516-24

$83.63
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.312 in
0.187 in
Closed

PTRA-3812-12-1

$107.17
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
0.500 in
0.375 in
Closed

PTRA-3812-12-2

$87.80
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
12 in
0.500 in
0.375 in
Closed

PTRA-3812-12-3

$88.64
Alumina( 99.8%)
1700°C (3092°F)
7/8 X 27 NS
None
12 in
0.500 in
0.375 in
Closed

PTRA-3812-18-1

$123.03
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
18 in
0.500 in
0.375 in
Closed

PTRA-3812-24-1

$155.63
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
24 in
0.500 in
0.375 in
Closed

PTRA-3812-24-2

$155.63
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
24 in
0.500 in
0.375 in
Closed

PTRA-516716-12

$50.50
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.437 in
0.312 in
Closed

PTRA-516716-18

$76.28
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.437 in
0.312 in
Closed

PTRA-516716-24

$97.60
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.437 in
0.312 in
Closed

PTRA-564532-12

$52.54
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
0.156 in
0.078 in
Closed

PTRA-564532-18

$61.78
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
0.156 in
0.078 in
Closed

PTRA-564532-24

$105.07
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
0.156 in
0.078 in
Closed

PTRA-5MM7MM-12

$45.12
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
7.0 mm
5.0 mm
Closed

PTRA-5MM7MM-18

$67.13
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
7.0 mm
5.0 mm
Closed

PTRA-5MM7MM-24

$92.01
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
7.0 mm
5.0 mm
Closed

PTRM-1234-12-2

$82.32
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
12 in
0.750 in
0.500 in
Closed

PTRM-1234-18-2

$96.37
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
18 in
0.750 in
0.500 in
Closed

PTRM-1234-24-2

$106.73
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
24 in
0.750 in
0.500 in
Closed

PTRM-1438-18-2

$87.18
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
18 in
0.375 in
0.250 in
Closed

PTRM-1438-24-2

$96.97
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
24 in
0.375 in
0.250 in
Closed

PTRM-316516-12

$21.03
Mullite
1400°C (2552°F)
None
None
12 in
0.312 in
0.187 in
Closed

PTRM-316516-18

$31.64
Mullite
1400°C (2552°F)
None
None
18 in
0.312 in
0.187 in
Closed

PTRM-316516-24

$41.85
Mullite
1400°C (2552°F)
None
None
24 in
0.312 in
0.187 in
Closed

PTRM-3812-12-1

$78.64
Mullite
1400°C (2552°F)
1/2 NPT
1/2″ NPT
12 in
0.500 in
0.375 in
Closed

PTRM-3812-18-1

$85.22
Mullite
1400°C (2552°F)
1/2 NPT
1/2″ NPT
18 in
0.500 in
0.375 in
Closed

PTRM-3812-24-1

$103.48
Mullite
1400°C (2552°F)
1/2 NPT
1/2″ NPT
24 in
0.500 in
0.375 in
Closed

PTRM-564532-12

$21.44
Mullite
1400°C (2552°F)
None
None
12 in
0.156 in
0.078 in
Closed

PTRM-564532-18

$31.64
Mullite
1400°C (2552°F)
None
None
18 in
0.156 in
0.078 in
Closed

PTRM-564532-24

$41.85
Mullite
1400°C (2552°F)
None
None
24 in
0.156 in
0.078 in
Closed

PTRM-5878-24-2

$169.44
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
24 in
0.875 in
0.625 in
Closed

PTRA-31614-12-1

$101.04
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
0.250 in
0.187 in
Closed

PTRA-31614-18-1

$110.43
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
18 in
0.250 in
0.187 in
Closed

PTRA-31614-24-1

$149.04
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
24 in
0.250 in
0.187 in
Closed

PTRA-51612-12-1

$101.04
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
0.500 in
0.312 in
Closed

PTRA-51612-12-2

$103.03
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
12 in
0.500 in
0.312 in
Closed

PTRA-51612-18-1

$124.67
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
18 in
0.500 in
0.312 in
Closed

PTRA-51612-18-2

$127.12
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
18 in
0.500 in
0.312 in
Closed

PTRA-51612-24-1

$150.71
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
24 in
0.500 in
0.312 in
Closed

PTRA-51612-24-2

$150.71
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
24 in
0.500 in
0.312 in
Closed

PTRA-53214-12-1

$175.68
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
0.250 in
0.156 in
Closed

PTRA-7161116-12

$46.01
Alumina( 99.8%)
1700°C (3092°F)
None
None
12 in
1.062 in
0.437 in
Closed

PTRA-7161116-18

$68.45
Alumina( 99.8%)
1700°C (3092°F)
None
None
18 in
1.062 in
0.437 in
Closed

PTRA-7161116-24

$88.76
Alumina( 99.8%)
1700°C (3092°F)
None
None
24 in
1.062 in
0.437 in
Closed

PTRM-31614-12-1

$78.64
Mullite
1400°C (2552°F)
1/2 NPT
1/2″ NPT
12 in
0.250 in
0.187 in
Closed

PTRM-51612-12-1

$78.64
Mullite
1400°C (2552°F)
1/2 NPT
1/2″ NPT
12 in
0.500 in
0.312 in
Closed

PTRM-51612-18-1

$91.23
Mullite
1400°C (2552°F)
1/2 NPT
1/2″ NPT
18 in
0.500 in
0.312 in
Closed

PTRM-51612-18-2

$91.23
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
18 in
0.500 in
0.312 in
Closed

PTRM-51612-24-1

$101.04
Mullite
1400°C (2552°F)
1/2 NPT
1/2″ NPT
24 in
0.500 in
0.312 in
Closed

PTRM-51612-24-3

$1.00
Mullite
1400°C (2552°F)
7/8 X 27NS
None
24 in
0.500 in
0.312 in
Closed

PTRM-7161116-12

$21.03
Mullite
1400°C (2552°F)
None
None
12 in
1.062 in
0.437 in
Closed

PTRM-7161116-18

$31.64
Mullite
1400°C (2552°F)
None
None
18 in
1.062 in
0.437 in
Closed

PTRM-7161116-24

$42.67
Mullite
1400°C (2552°F)
None
None
24 in
1.062 in
0.437 in
Closed

PTRA-316516-12-1

$124.67
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
0.312 in
0.187 in
Closed

PTRA-316516-12-2

$1.00
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
12 in
0.312 in
0.187 in
Closed

PTRA-316516-18-1

$106.81
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
18 in
0.312 in
0.187 in
Closed

PTRA-316516-24-1

$141.74
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
24 in
0.312 in
0.187 in
Closed

PTRA-516716-12-1

$112.17
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
0.437 in
0.312 in
Closed

PTRA-516716-12-2

$110.01
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
12 in
0.437 in
0.312 in
Closed

PTRA-516716-18-1

$136.06
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
18 in
0.437 in
0.312 in
Closed

PTRA-516716-18-2

$133.60
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
18 in
0.437 in
0.312 in
Closed

PTRA-516716-24-1

$164.58
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
24 in
0.437 in
0.312 in
Closed

PTRA-7161116-12-1

$103.02
Alumina( 99.8%)
1700°C (3092°F)
1/2 NPT
1/2″ NPT
12 in
1.062 in
0.437 in
Closed

PTRA-7161116-12-2

$105.10
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
12 in
1.062 in
0.437 in
Closed

PTRA-7161116-12-3

$47.88
Alumina( 99.8%)
1700°C (3092°F)
7/8 X 27 NS
None
12 in
1.062 in
0.437 in
Closed

PTRA-7161116-18-2

$129.53
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
18 in
1.062 in
0.437 in
Closed

PTRA-7161116-24-2

$152.34
Alumina( 99.8%)
1700°C (3092°F)
3/4 NPT
1/2″ NPT
24 in
1.062 in
0.437 in
Closed

PTRM-7161116-18-2

$91.23
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
18 in
1.062 in
0.437 in
Closed

PTRM-7161116-18-3

$91.23
Mullite
1400°C (2552°F)
7/8 X 27NS
None
18 in
1.062 in
0.437 in
Closed

PTRM-7161116-24-2

$103.48
Mullite
1400°C (2552°F)
3/4 NPT
1/2″ NPT
24 in
1.062 in
0.437 in
Closed
Expand Table

User Guide and Instruction manual for OMEGA PTRA-PTRM

You can request the necessary certificates, documentation, instructions and user guide for OMEGA PTRA-PTRM using the special form.

You can buy OMEGA PTRA-PTRM in UAE at a price starting from 136 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email . OMEGA PTRA-PTRM price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.

See also: Accessories for thermocouples, RTD & thermometers,  Connection heads for thermocouple & RTD

Generate an article by selecting the parameters below
Article:
Quantity:
-
+
Clear
I know the article / Need help
Get Offer
The article is not fully generated. Please double-check the selected values.
