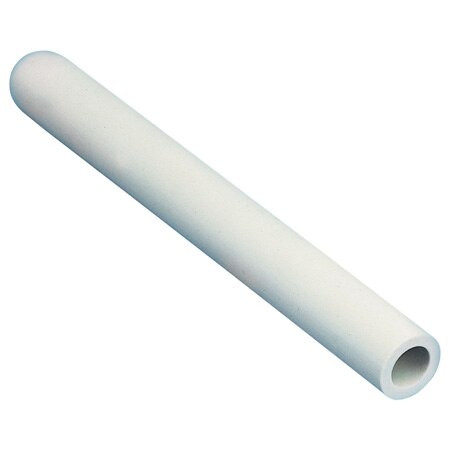

OMEGATITE 650® Protection Tubes is an alloy of silicon nitride and aluminum oxide and is made to with stand high temperatures up to 1250°C, thermal shock & corrosion .
Made in USA. brand OMEGA, model PTRSSeries
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $629
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
OMEGATITE™650 is an alloy of silicon nitride and aluminum oxide. This superior refractory material has the combined properties of silicon nitride (high strength, hardness, fracture toughness, and low thermal expansion) and aluminum oxide (corrosion resistance, chemically inert, high temperature capabilities, and oxidation resistance).
Most refractory products can be used only in high temperature applications where one or two of the following properties are required: thermal shock resistace, mechanical strength, corrosion resistance, abrasion resistance or electrical insulation. OMEGATITE™ 650 combines all these properties in one refractory material.
OMEGATITE™ 650 is uniquely qualified for nonferrous molten metal applications and high wear or high impact environments up to 1250°C. OMEGATITE™ 650 is non-wetting for most nonferrous metals. It is gas tight, chemically inert, resistant to corrosion and metal attack, and features high strength, hardness, and thermal shock resistance.
OMEGATITE™ 650 thermocouple sheaths are used extensively for continuous measurements in nonferrous metals. In molten aluminum, OMEGATITE™ 650 is thermal shock resistant, non-wetting, does not contaminate the melt, provides continuous, reliable temperature measurement, and is resistant to degradation even in aggressive aluminum lithium alloys. The excellent corrosion resistance of OMEGATITE™ 650 allows the use of thinner walls, thereby providing faster response time and improved accuracy.
| Product Number | Material | Maximum Temperature Rating | Head Connection Size | Process Connection | Length | Outer Diameter | Inner Diameter | Sensing End |
|---|---|---|---|---|---|---|---|---|
|
PTRS-612-450 $572.05
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
450 mm
|
12.0 mm
|
6.0 mm
|
Closed
|
|
PTRS-612-600 $612.93
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
600 mm
|
12.0 mm
|
6.0 mm
|
Closed
|
|
PTRS-916-150 $612.93
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
150 mm
|
16.0 mm
|
9.0 mm
|
Closed
|
|
PTRS-916-300 $619.55
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
300 mm
|
16.0 mm
|
9.0 mm
|
Closed
|
|
PTRS-916-600 $743.67
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
600 mm
|
16.0 mm
|
9.0 mm
|
Closed
|
|
PTRS-1222-150 $629.26
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
150 mm
|
22.0 mm
|
12.0 mm
|
Closed
|
|
PTRS-1222-300 $694.64
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
300 mm
|
22.0 mm
|
12.0 mm
|
Closed
|
|
PTRS-1222-600 $1,037.87
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
600 mm
|
22.0 mm
|
12.0 mm
|
Closed
|
|
PTRS-1628-150 $825.40
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
150 mm
|
28.0 mm
|
16.0 mm
|
Closed
|
|
PTRS-1628-300 $859.59
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
300 mm
|
28.0 mm
|
16.0 mm
|
Closed
|
|
PTRS-1628-600 $1,522.22
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
None
|
None
|
600 mm
|
28.0 mm
|
16.0 mm
|
Closed
|
|
PTRS-1628-300-NPT $974.92
|
Silicon Nitride & Aluminum Oxide
|
1250°C (2282°F)
|
3/4 NPT
|
1 1/4 NPT
|
300 mm
|
28.0 mm
|
16.0 mm
|
Closed
|
