Economical Measurement of Indoor Air Quality
Made in Swiss. brand Rotronic, model CP11
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $395
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

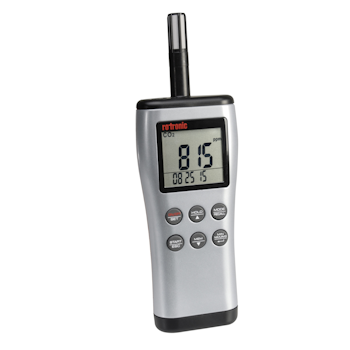

Portable monitoring of indoor air quality. Measures and records CO2, relative humidity and temperature.
Applications
| Model | CO2 Display | CL11 | CP11 |
| General Specifications | |||
| Type | Wall or benchtop display unit | Benchtop display unit | Handheld device |
| Parameters | CO2, relative humidity and temperature | CO2, relative humidity, temperature, dew point & wet bulb temperature | |
| Application range | 0…50 °C / 0…95 %rh, non-condensing | 0…50 °C / 0…100 %rh, non-condensing | |
| Clock | Real time clock with 4 min. battery backup | Real time clock with 2 min. battery backup | Real time clock |
| Alarm / Indicator | Adjustable for CO2 measurement (visual) | Adjustable for CO2 measurement (visual & audible) | Adjustable for CO2 measurement (audible) |
| Instrument-Specific Data | |||
| Current consumption | 700 mA | 50 mA | 40 mA |
| Warm-up time | <1 min. | ||
| Memory capacity | • 19,500 values with time stamp
• Automatic recording (%rh/°C/ppm) |
• 40,000 values with time stamp
• Automatic recording (%rh/°C/ppm) |
• 18,000 values with time stamp
• Automatic recording (%rh/°C/ppm) • 99 single values with time stamp • Manual recording (%rh/°C/DP/WBT/ppm) |
| CO2 Measurement | |||
| Measurement principle | Infrared (NDIR) with automatic calibration (ABC) | ||
| Measuring range | 0…. 9999 ppm | ||
| Accuracy at 23 °C ±5 K | ±30 ppm ±5 % of the measured value @ 0…5000 ppm | ||
| Resolution | 1 ppm | ||
| Adjustment point | 400 ppm | ||
| Pressure dependence | +1.6 % reading per kPa | ||
| Null drift | <10 ppm/year | ||
| Maintenance | No maintenance (standard indoor applications) | ||
| Humidity Measurement | |||
| Humidity sensor | ROTRONIC HYGROMER® IN-1 | ||
| Measuring range | 0…100 %rh | ||
| Accuracy at 23 °C ±5 K | ±2 %rh (10…90 %rh), others ±5 %rh | ||
| Resolution | 0.1 %rh | ||
| Adjustment points | 35, 80 %rh | ||
| Response time 63 | <30 s, without filter | ||
| Long-term stability | <1.5 %rh/year | ||
| Temperature Measurement | |||
| Sensor | NTC thermistor | ||
| Measuring range | -20…60 °C | ||
| Accuracy at 23 °C ±5 K | ±0.3 K | ||
| Resolution | 0.1 °C | ||
| Response time | 4 s | ||
| Software | |||
| HW4 (SW21) | Available | ||
| Conformities / Housing | |||
| CE / EMC compatibility | EMC Directive 2014/30/EU, EN 61326-1:2012 | ||
| Housing material | ABS | ||
| Dimensions | 330 x 250 x 50 mm | 157 x 120 x 45 mm | 76.7 x 41.8 x 233.9 mm |
| Weight | 1400 g | 200 g | 290 g |
| Order code | CO2 Display | CL11 | CP11 |
| Sensors / Calibration | • HYGROMER® IN-1 humidity sensor

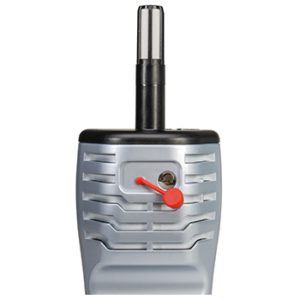

• Calibration of humidity possible at 35/80 %RH • NDIR sensor with automatic calibration (ABC) • Manual calibration of CO2 at 400 ppm |
||
| Display | • Large, easy-to-read display of measured values
• CO2 indicator for quick recognition of air quality (GOOD/NORMAL/POOR) • REC LED to indicate data recording is in progress • Display of date and time |
Large display with backlight | |
| Control panel | Large buttons for easy operation of the measuring instrument | ||
| Connections | • Port for USB stick for data downloads
• 12 VDC power supply |
• Mini USB port for connection to a PC
• 5 VDC power supply, for connection of the optionally available AC adapter |
|
You can request the necessary certificates, documentation, instructions and user guide for Rotronic CP11 using the special form.
You can buy Rotronic CP11 in UAE at a price starting from 395 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic CP11 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
