Differential Pressure, Humidity and Temperature Measurement
Made in Swiss. brand Rotronic, model CRP5
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

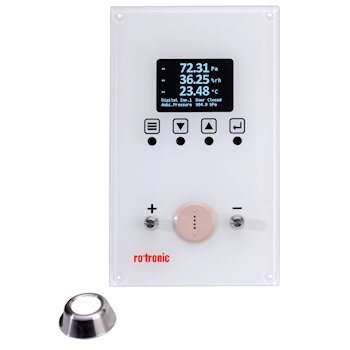

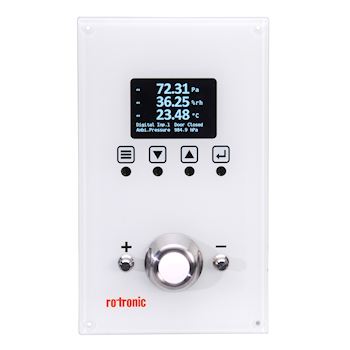

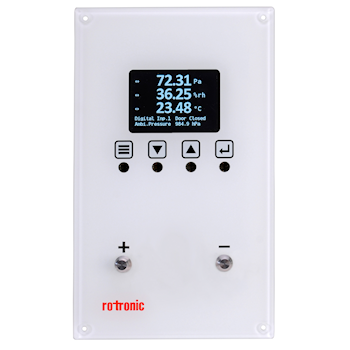

The Clean Room Panel, which is fitted with a diaphragm sensor for differential-pressure measurement, is a top-quality device. Validated according to GMP directives, and with its well thought-out design, the CRP5 is optimized for applications in laboratories and clean rooms.
Application
| General | |
| Parameters | Differential pressure, temperature, relative humidity, digital and analog inputs |
| Housing material | Front: Glass
Back: Stainless Steel |
| IP protection | Front: IP65 (also with sensors removed)
Back: IP20 |
| Mounting position | Wall Mounting |
| Display | Color TFT display |
| Menu Navigation | 4 optical buttons |
| Electrical connections | Screw terminals on back |
| Power supply | 20…48 VDC / 18…35 VAC |
| Current Consumption | <500 mA |
| Range of application / Storage conditions | -5…60 °C (23..140 °F) / 0…100 %RH |
| Firmware update | via HW4 software |
| Service interface | UART |
| CE / EMC compatibility | EMC Directive 2004/108/EC |
| Fire protection class | Corresponds to UL94-HB |
| FDA- / GMP compatible | 21 CFR Part 11 and GAMP5 |
| Dimensions | 180 x 300 x 72 mm |
| Weight | 1,700 g (with humidity sensor)
1,550 g (without humidity sensor) |
| Differential Pressure Measurement | |
| Measurement principle | Diaphragm sensor |
| Measurement ranges | ±50 Pa / ±100 Pa / ±250 Pa / ±500 Pa |
| Medium | Air and non-aggressive gases |
| Accuracy at 23 °C ±3 K | ±1.0 % full-scale |
| Zero drift | Compensated (manual or automatic zero adjustment) |
| Measurement interval | 1 s |
| Pressure resistance | 0.7 bar (70,000 Pa) |
| Pressure connections | Front: Hose connectors Ø 6 mm x 10 mm
Back: Hose connectors Ø 4 mm x 10 mm |
| Temperature measurement / Relative-humidity measurement | |
| Probes | HC2-CRP; alternatively: any HygroClip2 probe |
| Measurement range | -100…200 °C (probe-dependent) / 0…100 %RH |
| Outputs | |
| Analog outputs | 4, freely configurable |
| Analog output type | 0 / 4…20 mA or 0…1 / 5 / 10 V |
| Switch output | 6 solid-state relays |
| Switching capacity | <50 VDC at <2 A when observing polarity
<35 VAC at <1 A, irrespective of polarity |
| Accuracy, analog output | ±5 mV (voltage output)
±20 µA (current output) |
| Permissible load | >10 kW (voltage output)
<500 W (current output) |
| Digital communication | Ethernet (Modbus TCP, HW4) / RS-485 (Modbus RTU, HW4) |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic CRP5 using the special form.
You can buy Rotronic CRP5 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic CRP5 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
