Fixed Humidity and Temperature Measurement Probe for harsh environment
Made in Swiss. brand Rotronic, model DT722
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

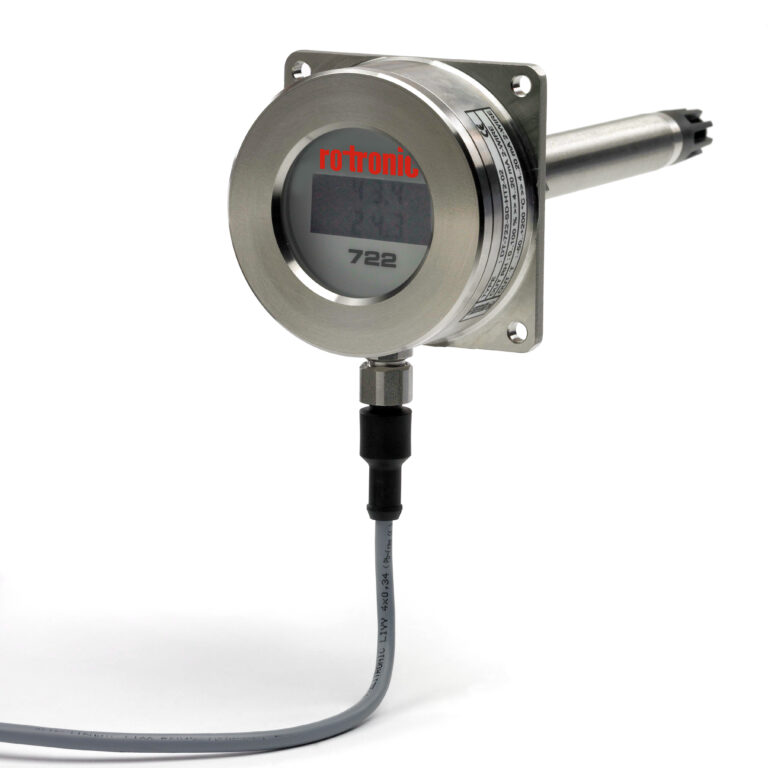

The DT722 is a rugged industrial relative humidity and temperature transmitter designed for process applications where accurate, stable measurement and control of humidity and temperature is required.
Proven housing
Power supply
Outputs
Flexible choice of probes
Applications
| Performance | |
| Measurement range (RH) | 0…100 %rh |
| Measurement range (T) | -40…150 °C (-40…302 °F) |
| Accuracy @ 25 °C (77 °F) humidity | < ±2 %rh (5…95 %rh) |
| Accuracy @ 25 °C (77 °F) tempe- rature | ±0.2 °C (±0.36 °F) typical |
| Stability – RH sensor | ±1 %rh/year |
| Response time – RH sensor | <10 sec typical (for 90 % of the step change) |
| Electrical specifications | |
| Output signal | 4…20 mA |
| Supply voltage | 8…32 V DC |
| Supply voltage influence | ±0.01 %rh/V typical |
| Operating humidity | |
| Operating humidity probe, housing, storage | 10…95 %rh (non-condensing) |
| Operating temperatures | |
| Probe | -40…150 °C (-40…302 °F) |
| Housing | -20…70 °C (-4…158 °F) |
| Storage | -30…75 °C (-22…167 °F) |
| Mechanical specifications | |
| Ingress protection | IP65 (NEMA 4 level) |
| Housing material | Stainless steel |
| Weight | 200 mm/800 g (7.87″/28.22 oz)
300 mm/900 g (11.81″/31.75 oz) 500mm/1040 g (19.69″/36.68 oz) 900 mm/1412 g (35.43″/49.80 oz) |
| Electrical connections | 5 pin, M12 |
Subject to technical change without notice. Printing and other errors reserved.
Accessories and Spare Parts
| Order Code | Description |
| Protection cap | |
| A000002 | 19 mm (0.75″) Slotted protection cap black |
| Filter | |
| A000014 | 19 mm (0.75″) PVDF filter |
| A000015 | 19 mm (0.75″) PVDF filter w/ protection cap black |
| A000021 | 19 mm (0.75″) Mesh filter w/ protection cap black |
| A000025 | 19 mm (0.75″) Arrow 5 μm SS sintered filter |
| A000027 | 19 mm (0.75″) connector, no cable, w/screw terminal |
| Cable | |
| A000030 | Single plug, without cable |
| A000030-XX | 19 mm (0.75″) connector / cable (price per meter) |
| A000031 | 19 mm (0.75″) connector with 2 m (6.5′) cable |
| A000032 | 19 mm (0.75″) connector with 5 m (16′) cable |
| A000040 | Metal foil filter 2 μm with protective cap, black |
| A000042 | Oleophobic foil filter 0.7 μm with black protective cap |
| Mounting | |
| A000110 | 3/4″ NPT SS adj. fitting for SS probes |
| A000100 | Al mounting flange for Ø19 mm (0.75″) SS probes (outside Ø80 mm (3.15″)) |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic DT722 using the special form.
You can buy Rotronic DT722 in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic DT722 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
