High accuracy humidity and temperature measurement in explosive atmosphere
Made in Swiss. brand Rotronic, model HC2-SM-/ IM-/ IE-Ex
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $562
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

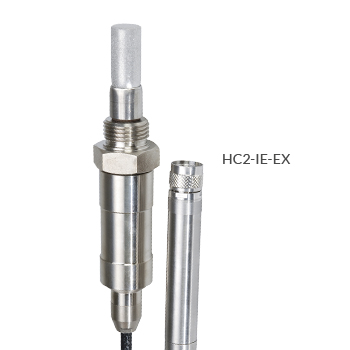

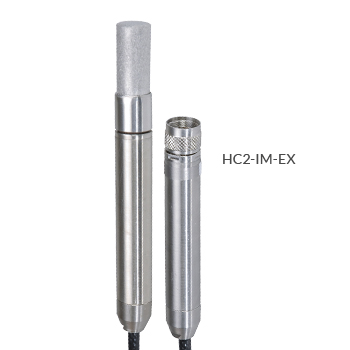

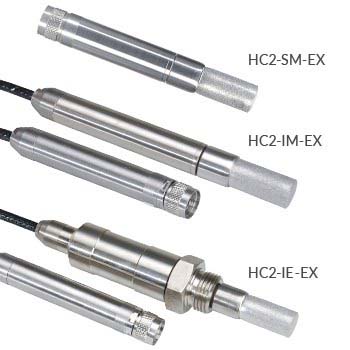

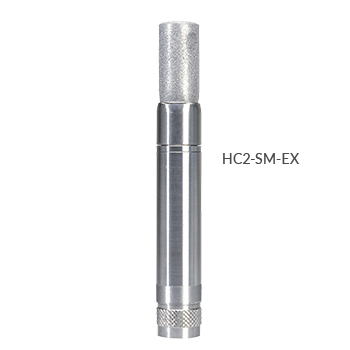

The ATEX Rotronic humidity and temperature probes can only be used with our HF5-EX ATEX transmitter in applications with explosive atmospheres. The probes measure temperature from -40…85°C and humidity from 0…100 % rH with an outstanding accuracy of ±0.8 % rH / ± 0.1 K. The probes are cast into a stainless-steel tube and are certified for operation in explosive atmosphere (Zone 0).
Applications:
| General | |
| Parameters | Humidity and temperature |
| Calculated parameters | All psychrometric parameters
available |
| Housing material / Protection | Aluminium (DIN EN 1706 EN
AC-AlSi 12 (Fe)) / IP66 |

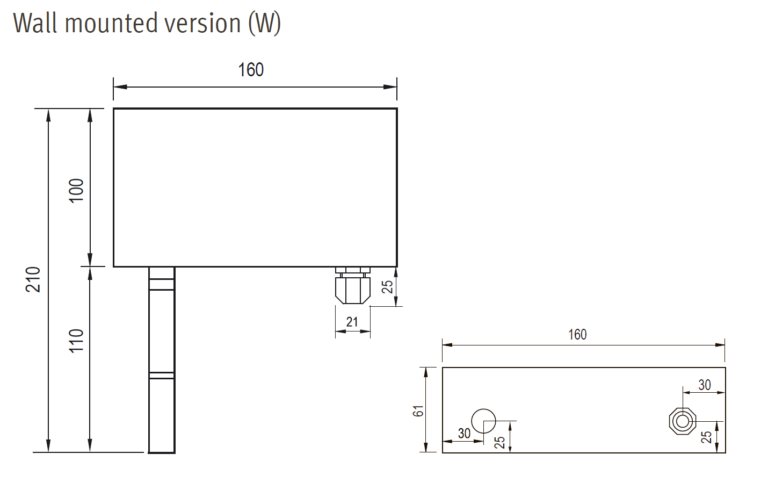

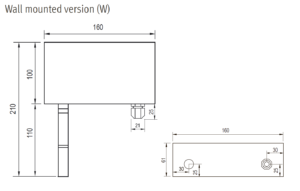

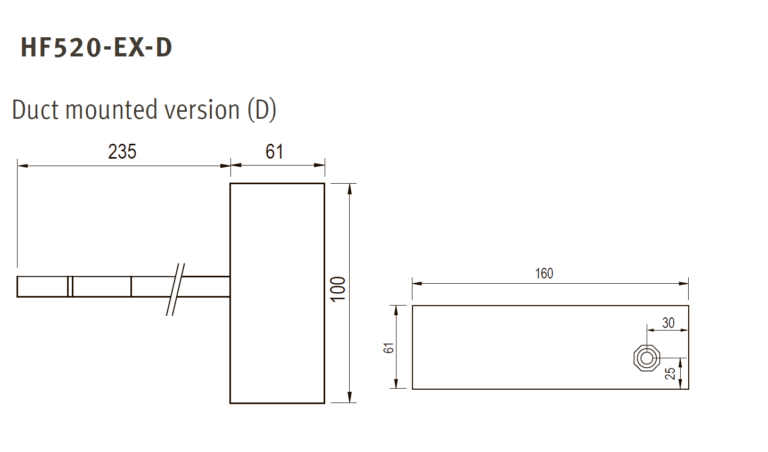

| Weight | Wall mounted version: 1030 g
Duct mounted version: 1140 g |
| Start-up time | Standard cold <60 s / warm <30 s |
| Measurement interval | 20…240 s |
| Display | Optional, LCD without backlight |
|
Electrical connections |
Connections: Ex-e terminals (0.2…2.5 mm2)
Cable gland: 16 x 1.5 (Ø cable 4.5…7 mm) |
| Power supply | 10…28 VDC |
| Current Consumption | 2×24 mA start up / 2×20 mA
operation |
| Application temperature
Housing / electronics |
-40…60 °C without display
-10…60 °C with display |
|
Service interface |
UART internal service interface
(only to be used outside the explosive zone) |
| Conformity | CE, UKCA, ATEX, EMC, RoHS |
| EX Certification | IECEx, UKEX, QPS |
|
EX identification |
II 2(1) G Ex eb mb [ia Ga] IIC T5 Gb
II 2(1) D Ex tb [ia Ga] IIIC T80 °C Db |
| Analogue output | |
| Number | 2 |
| Current | 4…20 mA, two-wire |
| Galvanic isolation | Yes |
| Maximum load | 500 Ohms |
| Accuracy at 23 °C | <20 uA |
| General | |
| Parameters | Humidity and temperature |
| Housing material / Protection | Stainless steel / IP66 |
| Cable lengths | 2/5/10 metres |
| EX identification | II 1/2 G Ex ia IIC T5 Ga/Gb
II 1/2 D Ex ia IIIC T80°C Da/Db |
| Humidity measurement | |

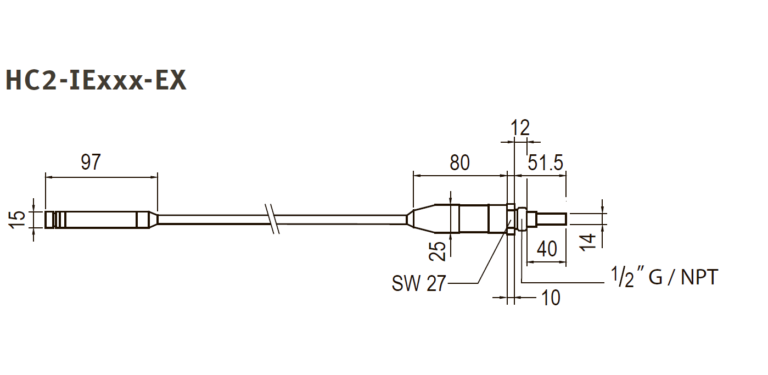

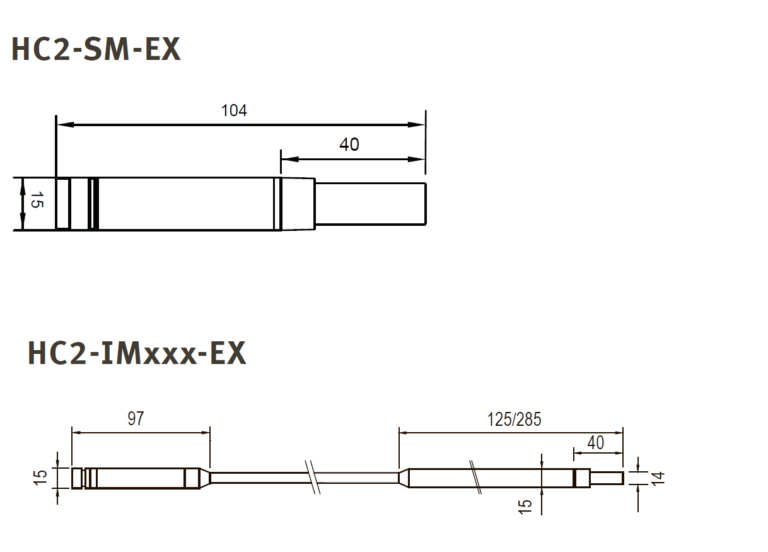

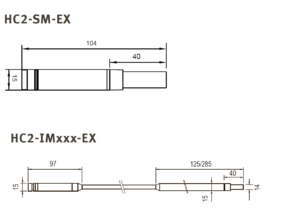

| Sensor | HC2-SM/IM/IE-EX:
ROTRONIC HYGROMER® IN-1 |
|
Adjustment |
Not via device menu
(only outside the explosive zone with Hygrosoft + AC3001) |
| Measurement range | 0…100 %rh |
| Accuracy at 23 °C | ±0.8 %rh |
| Temperature measurement | |
| Sensor | HC2-SM/IM/IE-EX: Pt100 Class A |
| Measurement range | -40…85 °C |
| Accuracy at 23 °C | ±0.1 °C |
| Accessories | |
| Filters | Steel sinter filter, SP-FN15 |
| Cable gland | AC1301-MEX for duct mounting and
cable probes (IM) |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HC2-SM-/ IM-/ IE-Ex using the special form.
You can buy Rotronic HC2-SM-/ IM-/ IE-Ex in UAE at a price starting from 562 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HC2-SM-/ IM-/ IE-Ex price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
