High-Temperature probe for harsh environment and Temperatures up to -100…200 °C
Made in Swiss. brand Rotronic, model HC2A-IC
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $649
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The Rotronic Industrial Humidity and Temperature probes are built for demanding industrial environments and cover a wide temperature range of -100…200 °C / 0…100% RH. With an outstanding accuracy ± 0.8% RH ±0.1 °C. For calibration the probes can be replaced without almost any downtime. Together with a Rotronic HF5, PF4/5 transmitter or HP32 this probe is the first selection for a demanding industrial application.

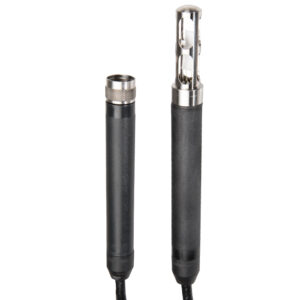

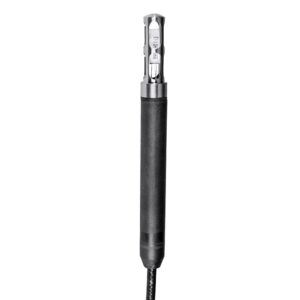

HC2A-IC – Allround Industrial Humidity Probe
The HC2A-IC Industrial Probe is especially suitable for high temperatures up to 200 °C and demanding industrial environments. It measures Humidity and Temperature and can calculate the dew-/ frost point.
Applications
| Humidity sensor | HYGROMER HT-1 |
| Temperature sensor | PT100 1/3 class B |
| Response time sensor | 163: <15 s without filter, (temperature and humidity) |
| Max. air velocity (m/s) | 3.5 without filter |
| Operating humidity | 0…100 %RH |
| Operating temperature | -50…+100 °C2 Electronics
-100…200 °C1 Measuring head |
| Accuracy @ 23 °C | ±0,8 %RH ±0,1 K |
| Factory adjustment | @23°C and 10, 35, 80 %rH |
| Long-term stability | < 1 %RH / year |
| Supply voltage | 3.3…5 VDC |
| Current consumption | Approx. 5 mA (adjusted at 3.3 VDC) |
| Protection rating | IP65 (except the sensor area) |
| Digital communication | UART (19200 baud fixed) |
| Protocols | RoAscii (default)
MODBUS (setting with HW4) |
| Analogue outputs | 2x 0…1 VDC |
| Analogue outputs parameters | • Humidity (default)
• Temperature (default) • Dew point (setting with HW4) • Frost point (setting with HW4) |
| Analog output scaling | • Humidity (0…100 %RH = 0…1 V)
• Temperature (-40…60 °C = 0…1 V) • Freely settable with HW4 |
| Timing | 1st measurement after 1.5 s Measurement interval 1 s |
| Air Chip 3000 | Saves adjustment data so that probes can be interchanged without re-adjusting |
| Compatible devices | HF5, HF8, HP32, HP23, HL-NT |
| Delivery package | • Probe
• Certificate • Filter holder, filter itself is not included |
It is possible to extend the distance between the probe and its reading device with extension cable.
| Order Code | Cable Length | Color |
| E2-01A | 1 m (0.95 – 1.05 m) |
Black |
| E2-02A | 2 m ( 1.92 – 2.08 m) | |
| E2-05A | 5 m ( 4.85 – 5.15 m) | |
| E3-01A | 1 m (0.95 – 1.05 m) |
White |
| E3-02A | 2 m (1.92 – 2.08 m) | |
| E3-05A | 5 m ( 4.85 – 5.15 m) |
| Order Code | Description | Cable Length |
|
AC3003 |
Signal amplifier, probe and instrument side with luster terminal |
Self assembly |
| AC3003/10 | AC3003 with luster terminal and pre-assembled Cat. 5 cable | 10 m (9.8 – 10.2 m) |
| AC30003/50 | 50 m |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HC2A-IC using the special form.
You can buy Rotronic HC2A-IC in UAE at a price starting from 649 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HC2A-IC price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
