Designed for the use in combination with a handheld (HP32) or transmitter (HF5, PF4/PF5)
Made in Swiss. brand Rotronic, model HC2A-PT100
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
Retail price from $248
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

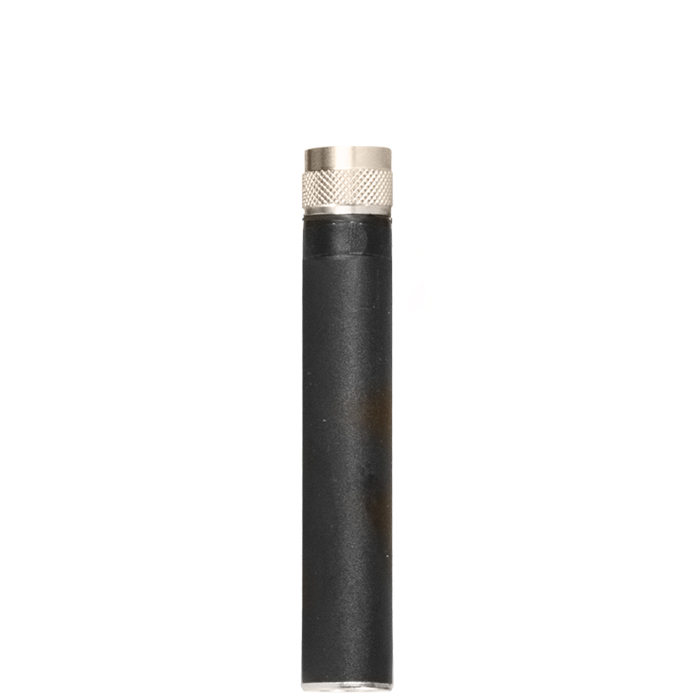

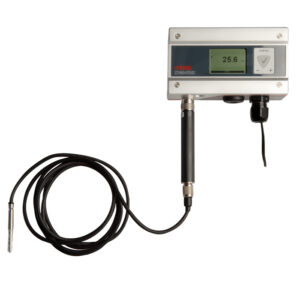

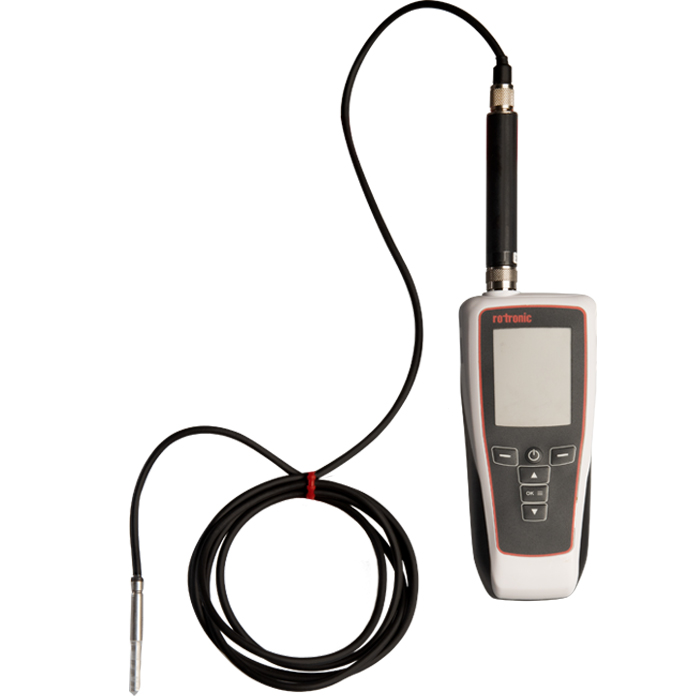

The HC2A-PT100 has a Rotronic HC2A connector at the rear end and a binder 4 pin female connector in the front and can be used with all Rotronic PT100 temperature probes or third party PT100 probes in combination with a handheld (HP32) or transmitter (HF5, PF4/PF5)
Applications:
| Order Code | HC2A-PT100 |
| Supply voltage | 3,3…5 VDC |
| Current consumption | Approx. 5 mA (adjusted at 3.3 VDC) |
| Load | > 1 kΩ |
| Protection rating | IP65 |
| Digital Interface | UART (19200 baud fixed) |
| Protocols | RoASCII (default)
MODBUS (setting with HW5) |
| Analog output 2 | 1 x 0…1 V |
| Analog outputs Parameters | Humidity (disabled) Temperature (default) |
| Analog output scaling Humidity (disabled) | Humidity (disabled)
• Temperature (-40…60 = 0…1V) • Temperature freely settable with HW5 |
| Timing | 1st measurement after 1.5 s Measurement interval of 1.1 s |
| Resolution | 15 bit |
| Measurement uncertainty | 0.1°C |
| Weight | 19.1 g |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HC2A-PT100 using the special form.
You can buy Rotronic HC2A-PT100 in UAE at a price starting from 248 $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HC2A-PT100 price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Humidity and Temperature probes
