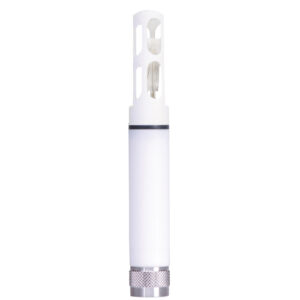

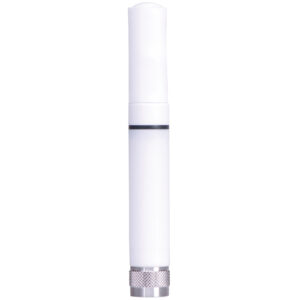

High-Temperature probe for harsh environment and Temperatures up to -100…200 °C
Made in Swiss. brand Rotronic, model HC2A-S3, S3H
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device
The standard Rotronic Humidity and Temperature probes can be used in application with temperatures from -50…100 °C / 0…100 %RH. With an outstanding accuracy of ± 0.8 %RH / ± 0.1°C. For calibration purposes the probes can be replaced without almost any downtime. Together with a Rotronic MP102H / MP402H Meteotransmitter or together with weather shield the HC2A-S3(H) probe is the first selection for many applications.
The HC2A-S3(H) are the second most sold versatile probe from Rotronic and form the basis of the meteorological and outdoor application product portfolio. They measure Humidity and Temperature and can calculate the dew-/ frost point.
Applications
| Supply voltage | 3,3…5 VDC |
| Current consumption | Approx. 5 mA (Adjusted at 3.3 VDC) |
| Load | > 10 kW |
| Protection rating | IP65 (except the sensor area) |
| Digital Interface | UART (19200 baud fixed) |
| Protocols | • RoASCII (Default)
• MODBUS (setting with HW4) |
| Analog outputs | 2x 0…1 V |
| Analog outputs Parameters | • Humidity (default)
• Temperature (default) • Dew point (setting with HW4) • Frost point (setting with HW4) |
| Analog output scaling | • Humidity (0…100 %rh = 0…1V)
• Temperature (-40…60 = 0…1V) • Freely settable with HW4 |
| Timing | 1st measurement after 1.5 s Measurement interval of 1 s |
High Precision probes are factory-adjusted at 23°C and 10, 20, 30, 40, 50, 60, 70, 80, 90 %rh, then calibrated at 20, 50, 80 %rh.
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-term stability |
| HC2A-SH | High Precision | ±0.5 %rh
±0.1 K |
-50..100 °C
0…100 %rh |
HYGROMER HT-1 | <1 %rh per year with clean air |
| HC2A-S3H | Meteo 4 High Precision |
Standards Precision probes are factory-adjusted at 23°C and 10, 35, 80 %RH.
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-term stability |
| HC2A-S | Standard | ±0.8 %rh
±0.1 K |
-50..100 °C 0…100 %rh |
HYGROMER HT-1 |
<1 %rh per year with clean air |
| HC2A-S3 | Meteo4 Standard | ||||
| HC2A-SM | Steel Probe | ||||
| HC2A-S-HH | Standard Probe for Rough environment 5 | ±1.0 %rh
±0.1 K |
Hygromer HH-1 |
The cable AC3001 allows direct connection to a computer via USB and, with use of the HW5 software to adjust the HC2A probe’s parameters such as
Possible Filters
| Order Code | Filter carrier | Filter Element | Pore size | Application Range |
| SPA-PCB-PE |
Polycarbonate, black |
Polyethylene, white | 40-50 μm |
-50…100 °C |
| SPA-PCB-PTFE | PTFE, white | 10 μm | ||
| SPA-PCB-WM | Wire mesh 1.4401 | |||
| SPA-PCW-PE |
Polycarbonate, white |
Polyethylene, white | 40-50 μm | |
| SPA-PCW-PTFE | PTFE, white | 10 μm | ||
| SPA-PCW-WM | Wire mesh 1.4401 | |||
| SPA-PE |
No filter carrier, only filter |
Polyethylene | 40-50 μm | |
| SPA-PTFE | PTFE, white |
10 μm |
-100…200 °C |
|
| SPA-WM | Wire mesh 1.4401 | |||
| SPA-SS-WM | 1,4301 | |||
| SPA-SSS | Sintered steel, 1.4404 (Carrier and filter) | 25 μm | ||
| SPA-SS-PFTE | Stainless steel, 1.4301 | Teflon | 10 μm | |
| SPA-SS | No filter | – | ||
Standard: HC2A-S + SPA-PCB-PE with filter (Polyethylene, white)
4 The housing is full white to avoid any heating from sun radiation.
5 Especially suitable for environments with hydrogen peroxide (H2O2). Please refer the HYGROMER HH-1 datasheet for more information.
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HC2A-S3, S3H using the special form.
You can buy Rotronic HC2A-S3, S3H in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HC2A-S3, S3H price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Humidity and Temperature probes
