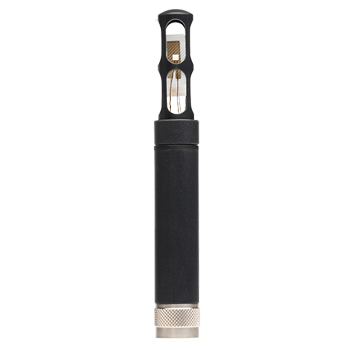

Special Probe for rough environment
Made in Swiss. brand Rotronic, model HC2A-S(M)-HH
International delivery to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain, Oman and other Middle Eastern countries.
Our warehouses are located in UAE. Delivery to other countries (Europe, North and South America, Asia, Africa) is discussed individually.
price По запросу
Available
Only the best I&C brands
Our company is a UAE supplier of control and measuring instruments from well-known world brands
Discounts for organisations
We sell high-tech equipment at best prices. We provide really advantageous conditions for partners
Fast delivery across the Middle East
Supply to United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Bahrain, Oman and other countries
Professional advice on device selection
Our specialists are ready to advise you on any technical question. We can find an analogue of any device

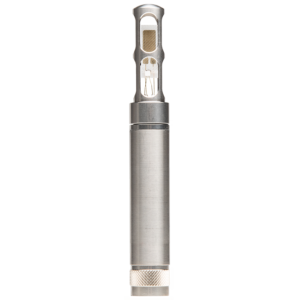

The Probe for Hydrogen Peroxide Environments(H2O2).
Hydrogen Peroxide Sterilization
Hydrogen peroxide (H2O2) is used to sterilize cleanrooms, incubators and other equipment. In this process the air is saturated by gassing or spraying, resulting in the formation of a microfilm on all surfaces. The hydrogen peroxide kills off all microorganisms. The H2O2 is then either recovered mechanically or allowed to decompose naturally over a period of 48 hours to harmless H2O or O2. The humidity level during the application is crucial for the effectiveness of the process.
Standard humidity sensors have difficulty measuring accurately in high concentration H2O2 environments. The Hydrogen Peroxide inhibits the measurement of water vapour by occupying the pores on the surface of the sensor. This is why ROTRONIC has developed a special sensor, the HYGROMER® HH1-SK. The life of the sensor is greatly extended compared with that of the standard sensor for these applications. Please see the sensor data sheet for exact technical data on the sensor.
Applications:
Industries:
| Order code | HC2A-S-HH / HC2A-SM-HH |
| Type | Humidity-Temperature-Probe for HH |
| Humidity Sensor | HYGROMER HH1-SK |
| Temperature Sensor | PT100 1/3 class B |
| PeakLoad H2O2 | 880 ppm / 1200 mg/m³ |
| Operating humidity | 0…100 %rh |
| Operating temperature | 0…60 °C |
| Accuracy @10…30°C before and after diffusion phase | ±1.0 %rh, ±0.1 K |
| Analogue output | 2 x 0…1 VDC |
|
Analogue output parameter |
• Humidity (default)
• Temperature (default) • Dew-point (setting with HygroSoft) • Frost-point (setting with HygroSoft) |
|
Analog output scaling |
• Humidity (0…100 %rh = 0…1 V)
• Temperature (-40…60 °C = 0…1 V) • Freely settable with HygroSoft |
| Timing | Measurement interval of 1 s |
|
Air Chip 3000 |
Saves adjustment data so that probes can be interchanged without re-adjust- ing |
| Housing material | Polycarbonat / Stainless steel 1.4301 |
| Filter | No Filter |
| Audit Trail | FDA CFR21 Part 11 /GAMP comatible |
It is possible to extend the distance between the probe and its reading device with extension cable.
| Order Code | Cable Length | Color |
| E2-01A | 1 m (0.95 – 1.05 m) |
Black |
| E2-02A | 2 m ( 1.92 – 2.08 m) | |
| E2-05A | 5 m ( 4.85 – 5.15 m) | |
| E3-01A | 1 m (0.95 – 1.05 m) | White |
| E3-05A | 5 m ( 4.85 – 5.15 m) |
| Order Code | Description | Cable Length |
|
AC3003 |
Signal amplifier, probe and instrument side with luster terminal |
Self assembly |
| AC3003/10 | AC3003 with luster termi- nal and Cat. 5 cable | 10 m (9.8 – 10.2 m) |
| AC30003/50 | 50 m |
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HC2A-S(M)-HH using the special form.
You can buy Rotronic HC2A-S(M)-HH in UAE at a price starting from По запросу $ in «Texair FZCO» by leaving a request on the website, by phone +441225535040 or by email rop@texairmeasure.ae. Rotronic HC2A-S(M)-HH price are subject to change depending on exchange rates. We deliver instruments by transport companies in United Arab Emirates, Kuwait, Qatar, Saudi Arabia, Saudi Arabia, Bahrain and other Middle Eastern countries.
See also: Humidity and Temperature probes
