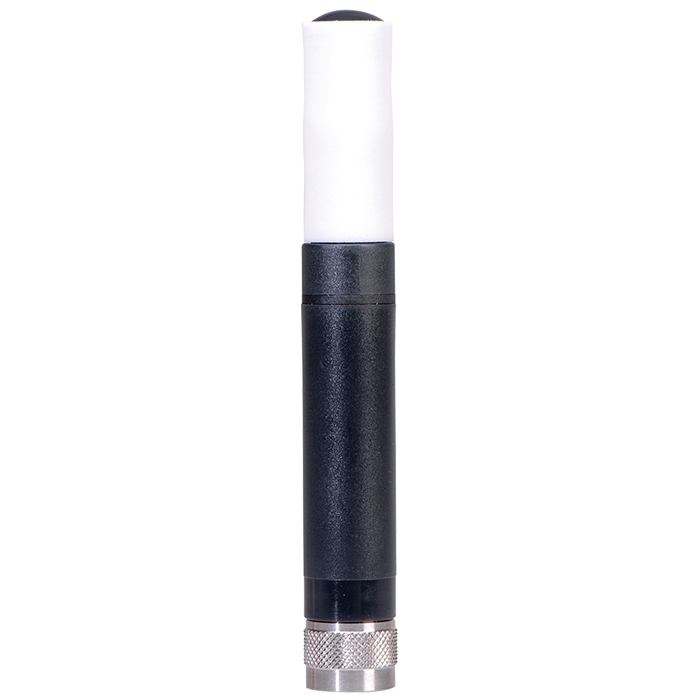

The standard Rotronic Humidity and Temperature probes can be used in application with temperatures from -50…100 °C / 0…100 %RH. With an outstanding accuracy of ± 0.8 %RH / ± 0.1°C. For calibration purposes the probes can be replaced without almost any downtime. Together with a Rotronic HF5, PF4/5 transmitter or HP32 the HC2A-S(H) probe is the first selection for many applications.
The HC2A-S(H) are the most sold versatile probe from Rotronic and form the basis oft he product portfolio. They measure Humidity and Temperature and can calculate the dew-/ frost point.
Applications
| Supply Voltage | 3.3…5 VDC |
| Current Consumption | Approx. 5 mA (Adjusted at 3.3 VDC) |
| Load | > 10 kΩ |
| Protection Rating | IP65 (except the sensor area) |
| Digital Interface | UART (19200 baud fixed) |
| Protocols | • RoASCII (Default) • MODBUS (setting with HW4) |
| Analog Outputs | 2x 0…1 V |
| Analog Outputs Parameters | • Humidity (default) • Temperature (default) • Dew point (setting with HW4) • Frost point (setting with HW4) |
| Analog Output Scaling | • Humidity (0…100% rh = 0…1V) • Temperature (-40…60 °C = 0…1V) • Freely settable with HW4 |
| Timing | 1st measurement after 1.5 s, Measurement interval of 1 s |
High Precision
High Precision probes are factory-adjusted at 23°C and 10, 20, 30, 40, 50, 60, 70, 80, 90 %rh, then calibrated at 20, 50, 80 %rh.
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-term Stability |
|---|---|---|---|---|---|
| HC2A-SH | High Precision | ±0.5 %rh ±0.1 K |
-50…100 °C 0…100 %rh |
HYGROMER HT-1 | <1 %rh per year with clean air |
| HC2A-S3H | Meteo 4 High Precision |
Standards Precision
Standards Precision probes are factory-adjusted at 23°C and 10, 35, 80 %RH.
| Order Code | Type | Accuracy @ 23 °C | Application Range | Sensor Element | Long-term Stability |
|---|---|---|---|---|---|
| HC2A-S | Standard | ±0.8 %rh ±0.1 K |
-50…100 °C 0…100 %rh |
HYGROMER HT-1 | <1 %rh per year with clean air |
| HC2A-S3 | Meteo4 Standard | ||||
| HC2A-SM | Steel Probe | ||||
| HC2A-S-HH | Standard Probe for Rough Environment | ±1.0 %rh ±0.1 K |
Hygromer HH-1 |
The cable AC3001 allows direct connection to a computer via USB and, with use of the HW5 software to adjust the HC2A probe’s parameters such as
Possible Filters
| Order Code | Filter Carrier | Filter Element | Pore Size | Application Range |
|---|---|---|---|---|
| SPA-PCB-PE | Polycarbonate, black | Polyethylene, white | 40-50 μm |
-50…100 °C |
| SPA-PCB-PTFE | PTFE, white | 10 μm | ||
| SPA-PCB-WM | Wire mesh 1.4401 | |||
| SPA-PCW-PE | Polycarbonate, white | Polyethylene, white | 40-50 μm | |
| SPA-PCW-PTFE | PTFE, white | 10 μm | ||
| SPA-PCW-WM | Wire mesh 1.4401 | |||
| SPA-PE | No filter carrier, only filter | Polyethylene | 40-50 μm | |
| SPA-PTFE | PTFE, white | 10 μm |
-100…200 °C |
|
| SPA-WM | Wire mesh 1.4401 | |||
| SPA-SS-WM | 1.4301 | |||
| SPA-SSS | Sintered steel, 1.4404 (Carrier and filter) | 25 μm | ||
| SPA-SS-PFTE | Stainless steel, 1.4301 | Teflon | 10 μm | |
| SPA-SS | No filter | – | ||
Standard: HC2A-S + SPA-PCB-PE with filter (Polyethylene, white)
4 The housing is full white to avoid any heating from sun radiation.
5 Especially suitable for environments with hydrogen peroxide (H2O2). Please refer the HYGROMER HH-1 datasheet for more information.
You can request the necessary certificates, documentation, instructions and user guide for Rotronic HC2A-S,SH using the special form.
